Thickness Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Using a micrometer, check thickness of disc rotor. If thickness is either at or below the wear limit, or exceeds maximum uneven wear, replace disc rotor.

Standard thickness: 14.0 mm (0.551 in)
Wear limit: 12.0 mm (0.472 in)
Maximum uneven wear (measured at 8 positions): 0.015 mm (0.0006 in)

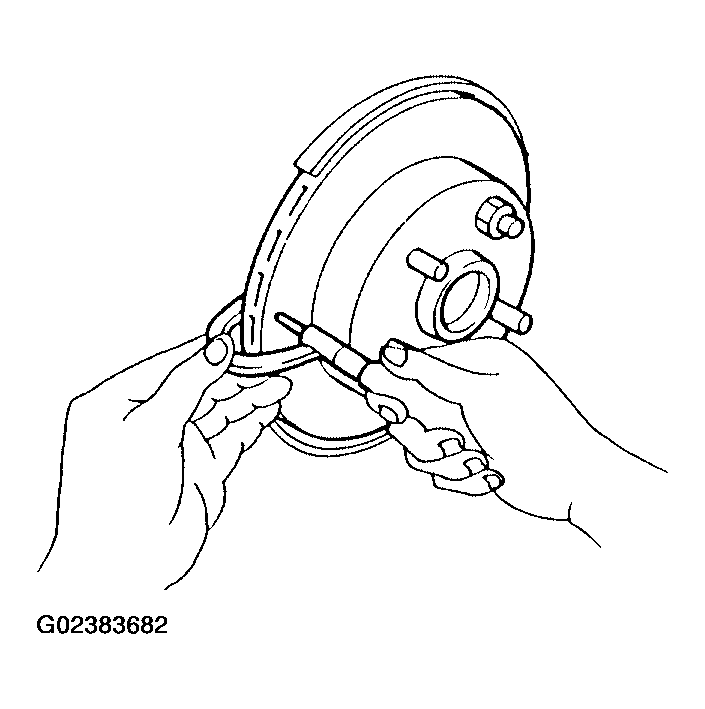

Fig 1: Checking Thickness Of Disc Rotor

Courtesy of NISSAN MOTOR CO., U.S.A.
