Thickness Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Using a micrometer, check thickness of disc rotor. If thickness is either at or below the wear limit, or exceeds maximum uneven wear, replace disc rotor.

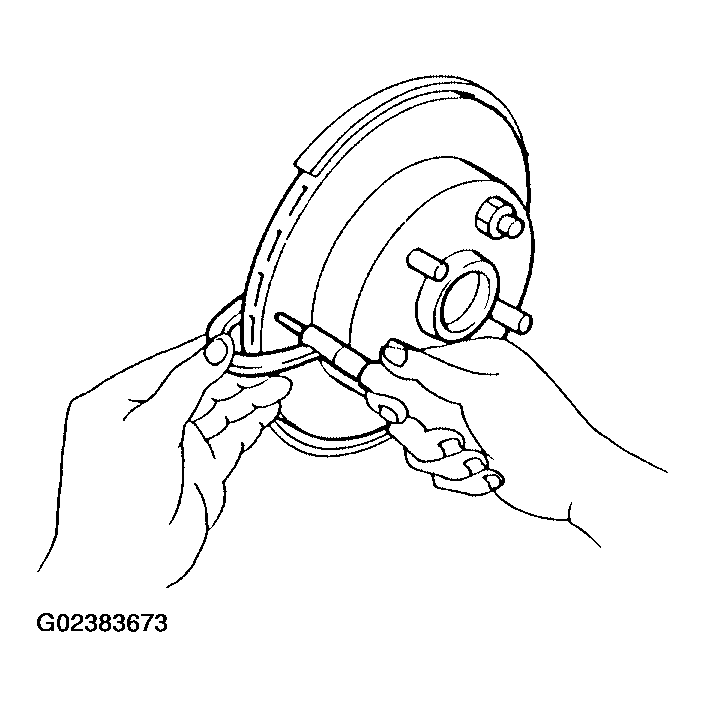

Fig 1: Checking Disc Rotor Thickness

Courtesy of NISSAN MOTOR CO., U.S.A.

Standard thickness: 26.0 mm (1.024 in)
Repair limit thickness: 24.5 mm (0.965 in)
Maximum uneven wear (Measured at 8 positions): 0.015 mm (0.0006 in)
