Disassembly and Assembly of Brake Caliper Assembly: Assembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not use NISSAN Rubber Grease (KRE00 00010, KRE00 00010 01) when assembling.

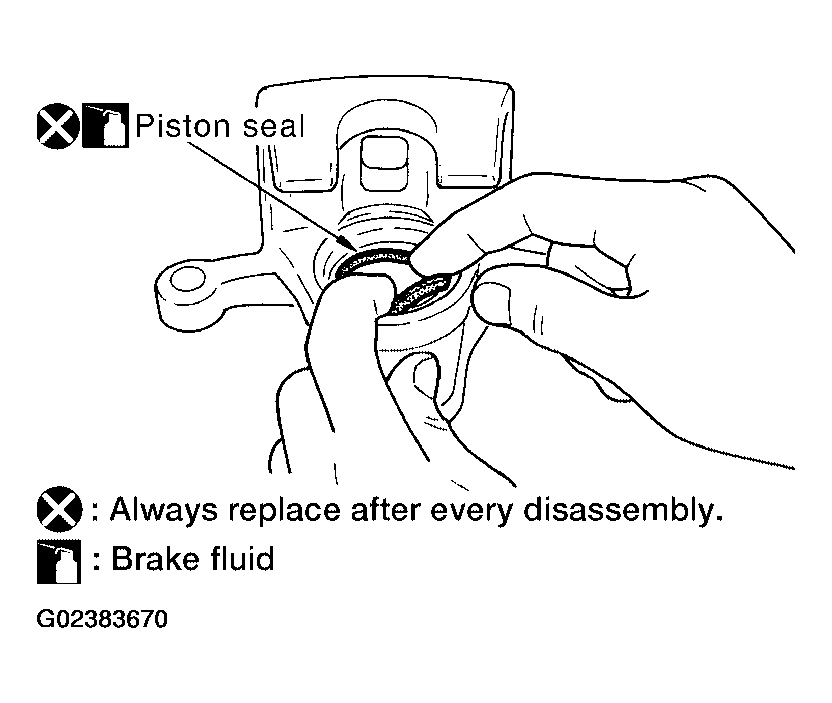

Apply clean brake fluid to new piston seal and insert seal in to groove on cylinder body.
CAUTION: Do not reuse piston seal.

Fig 1: Inserting Seal In Groove
Courtesy of NISSAN MOTOR CO., U.S.A.

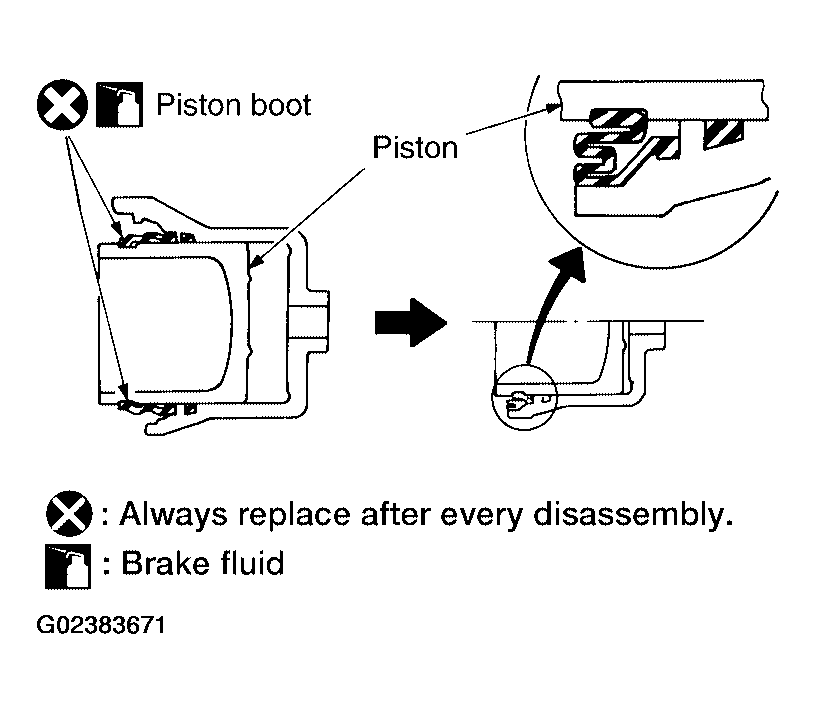

Apply brake fluid to piston and piston boot, then install piston boot in to piston groove.
CAUTION: Do not reuse piston boot.

Fig 2: Installing Piston Boot
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert into cylinder body by hand and insert piston boot piston-side lip into piston groove.
CAUTION: Press piston evenly and vary the pressing point to prevent cylinder body inner wall from being rubbed.
Install sliding pins and sliding pin boots to torque member.
CAUTION: Trailing/upper sliding pin must be replaced at each service.
Install cylinder body. Tighten sliding pin bolt to the specified torque. Refer to "COMPONENTS ".
