Removal and Installation of Front Brake Hose: Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Install brake hose by aligning with the protrusion on cylinder body, and tighten union bolt. Refer to "HYDRAULIC CIRCUIT ".
CAUTION: Do not reuse copper washer.

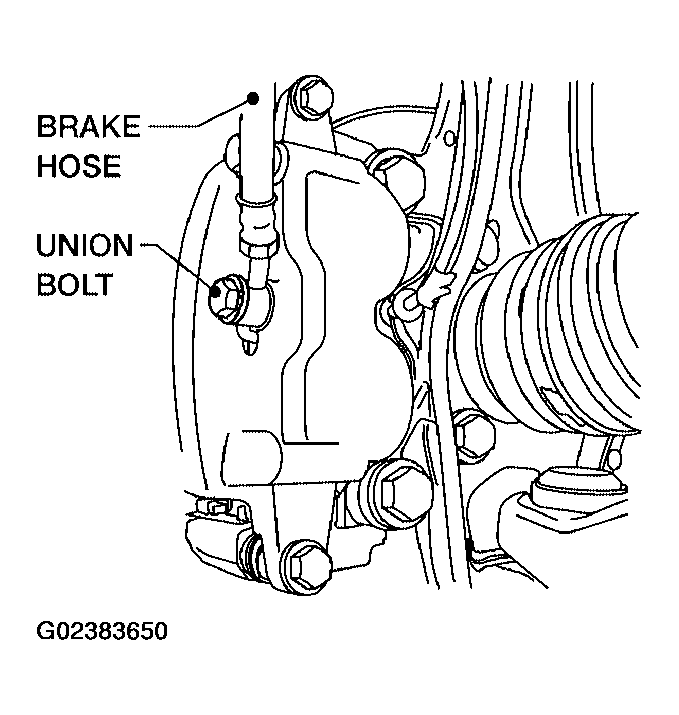

Fig 1: Installing Brake Hose By Aligning With Protrusion On Cylinder Body & Tightening Union Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert brake hose end through bracket, then secure it to bracket with lock plate.
Install brake tube to brake hose, then tighten flare nut using a flare nut wrench.

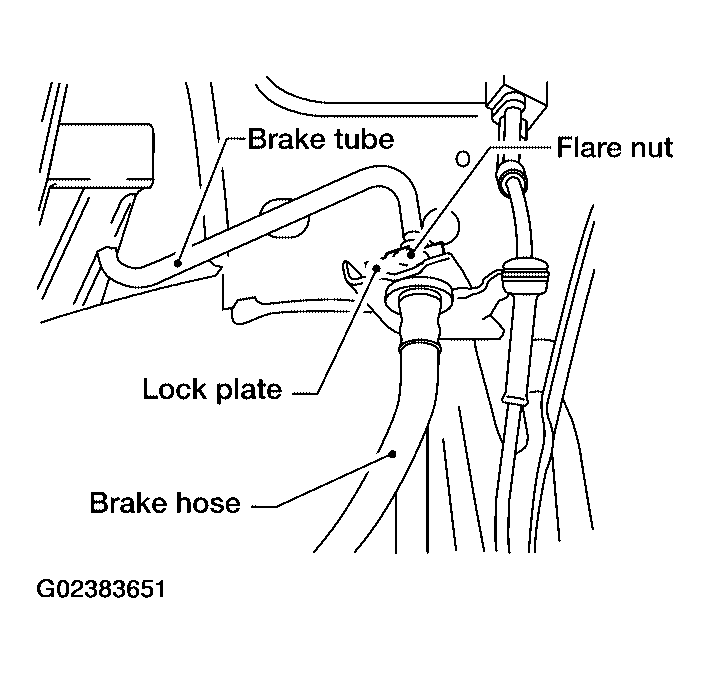

Fig 2: Installing Brake Tube To Brake Hose & Tightening Flare Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
Refill brake fluid and bleed air. Refer to "BLEEDING BRAKE SYSTEM ".
