Inspection and Adjustment: Inspection
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

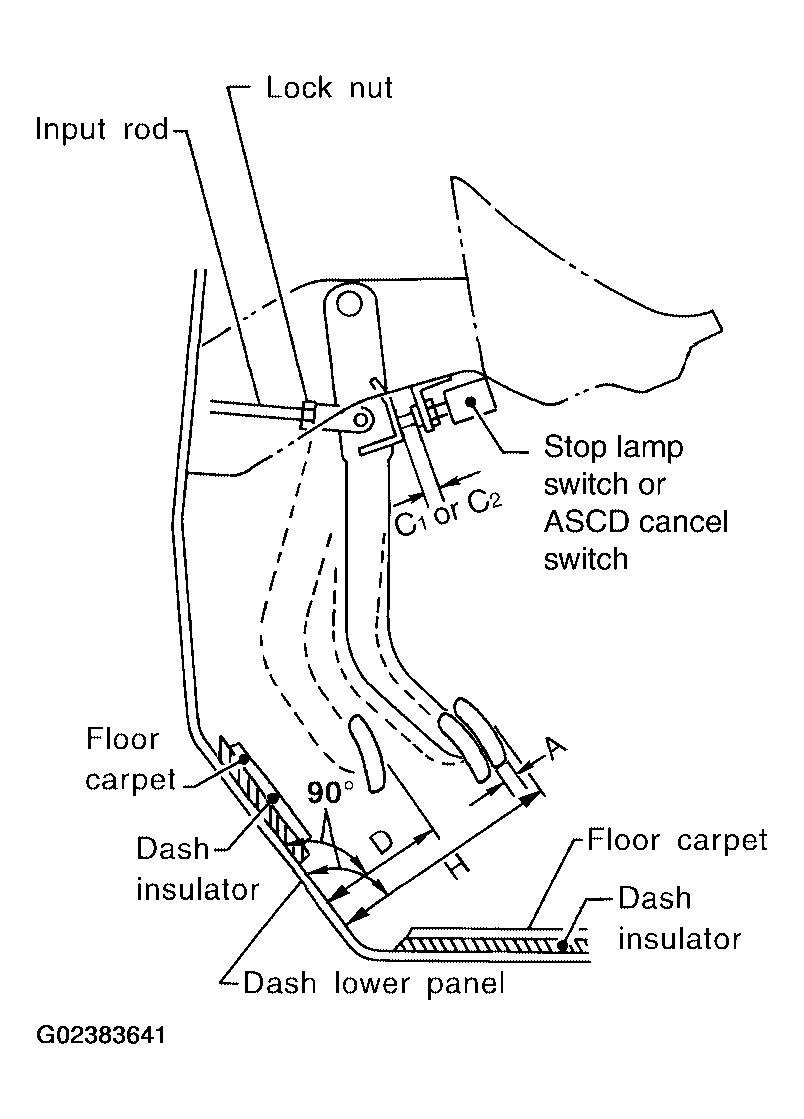

- Inspect the brake pedal free height "H" from dash lower.
- Adjust the height referring to the following specifications.CAUTION: The adjustable pedal must be in the forwardmost (closest to the floor) position for pedal height measurement.
Brake Pedal Specifications
BRAKE PEDAL SPECIFICATIONS
| Free height "H" | : 182.3 - 192.3 (7.18 - 7.57) |
| Depressed pedal height "D" [under a force of 490 N (50 kg, 110 lb) with engine running] | : More than 90.3 (3.55) |
| Clearance between pedal stopper and threaded end of stop lamp switch and ASCD switch "C1 or C2" | : 0.74 - 1.96 mm (0.029 - 0.077 in) |
| Pedal play "A" | : 3 - 11 mm (0.12 - 0.43 in) |
