Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

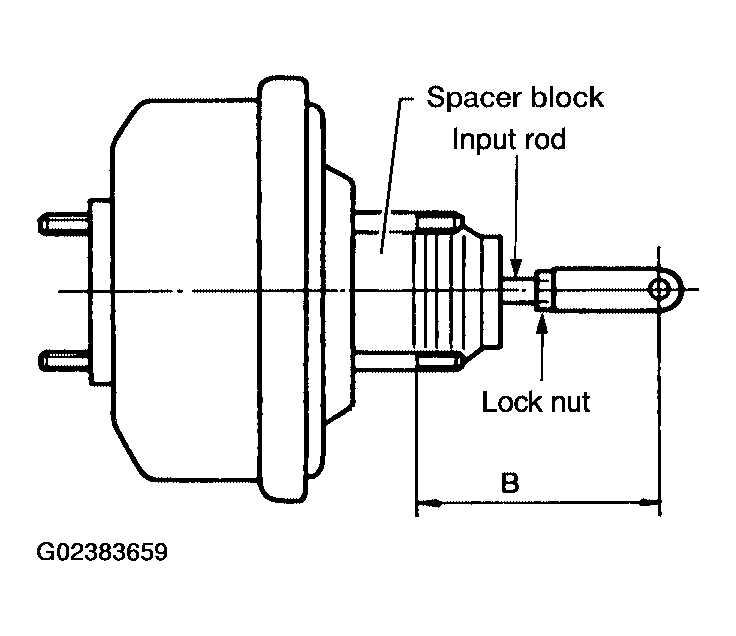

- Loosen lock nut to adjust input rod length so that the length B (in the figure) satisfies the specified value.
- Length "B": 148.5 mm (5.85 in)
- After adjusting "B", temporarily tighten lock nut and install booster assembly to the vehicle.
- Install a gaskets and spacer block between booster assembly and the dash panel.
- Connect brake pedal with clevis of input rod.
- Install pedal bracket mounting nuts and tighten them to the specified torque.
- Install brake piping from brake master cylinder to ABS actuator. Refer to "HYDRAULIC CIRCUIT ".
- Connect active boost and delta stroke sensor harness connectors to brake booster assembly.
- Connect vacuum hose to brake booster.
- Install master cylinder to booster assembly. Refer to "REMOVAL AND INSTALLATION ".
- Adjust the height and play of brake pedal.
- Tighten lock nut of input rod to the specified torque.
- Install engine air duct assembly. Refer to "AIR CLEANER AND AIR DUCT ".
- Install engine room cover with power tool. Refer to "ENGINE ROOM COVER ".
- Refill with new brake fluid and bleed air. Refer to "BLEEDING BRAKE SYSTEM ".
