Work Flow

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

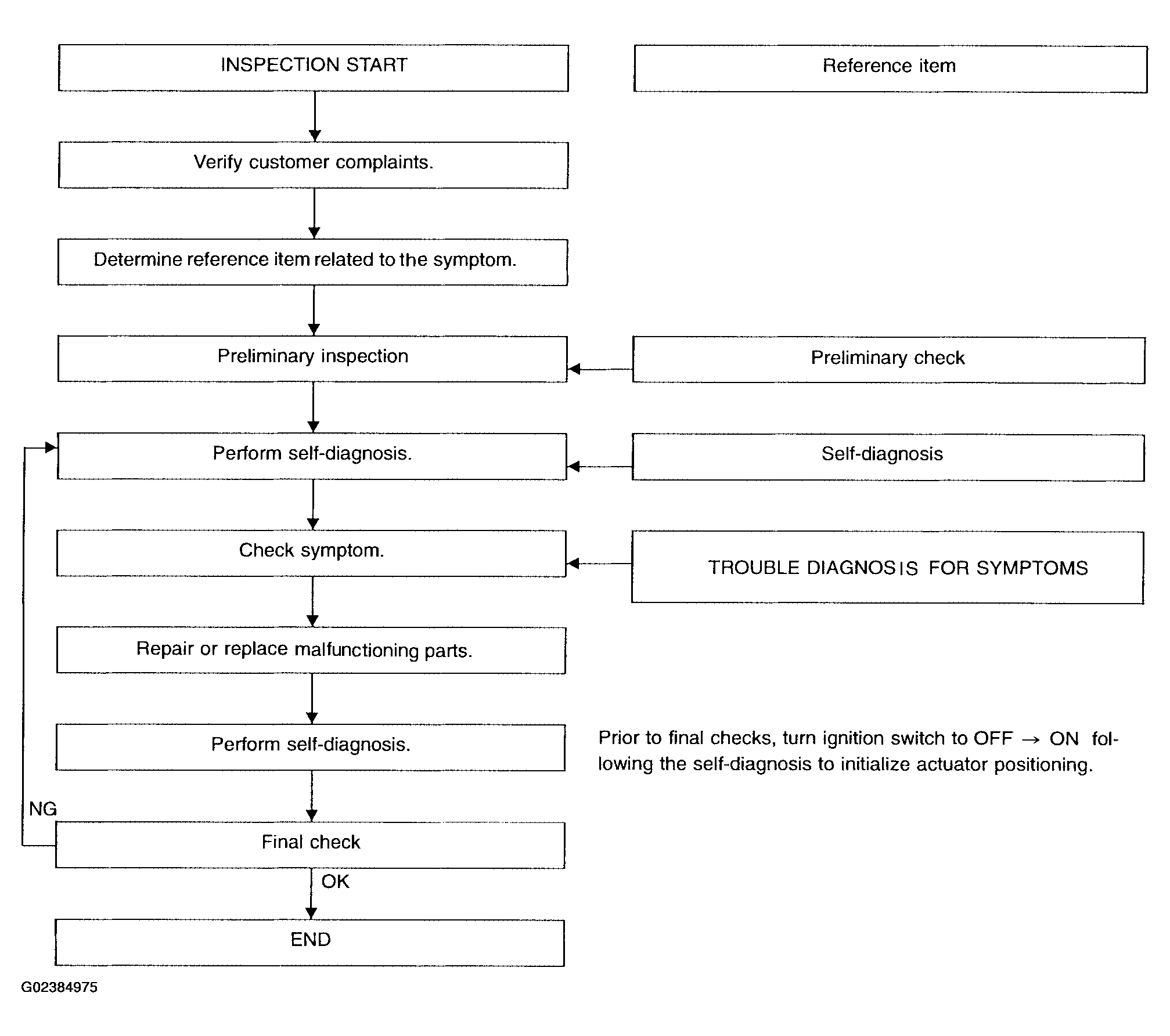

Fig 1: Quick & Accurate Repair Trouble Diagnosis Work Flow Chart
G02384975Courtesy of NISSAN MOTOR CO., U.S.A.

Preliminary check: PRELIMINARY CHECK Self-diagnosis: SELF-DIAGNOSIS Trouble diagnosis for symptoms: TROUBLE DIAGNOSIS FOR SYMPTOMS
