System Description: Transmitter

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

A sensor-transmitter integrated with a valve is installed on a wheel, and transmits a detected air pressure signal in the form of a radio wave.

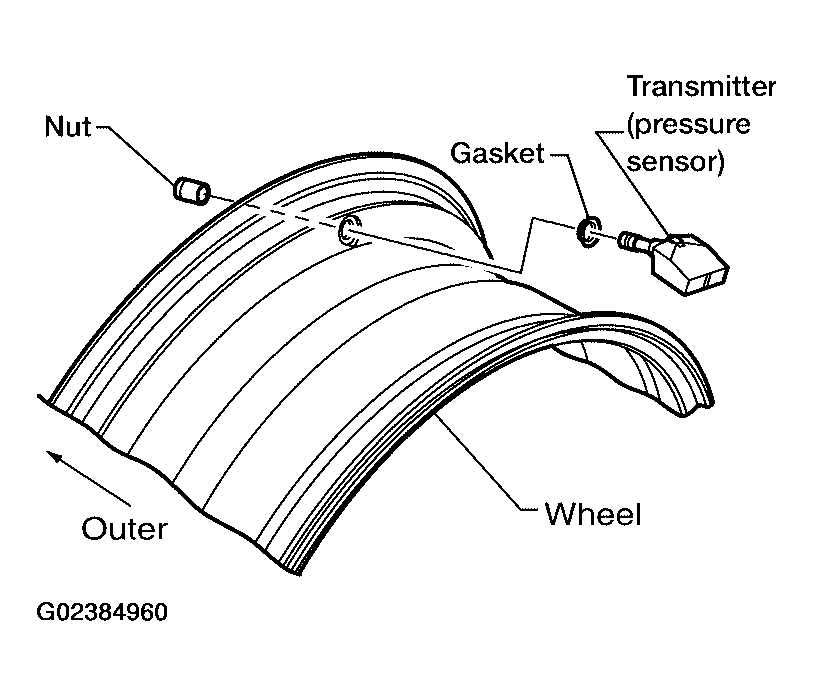

Fig 1: Identifying Transmitter
G02384960Courtesy of NISSAN MOTOR CO., U.S.A.
