Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
    CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  3. Turn ignition switch ON.

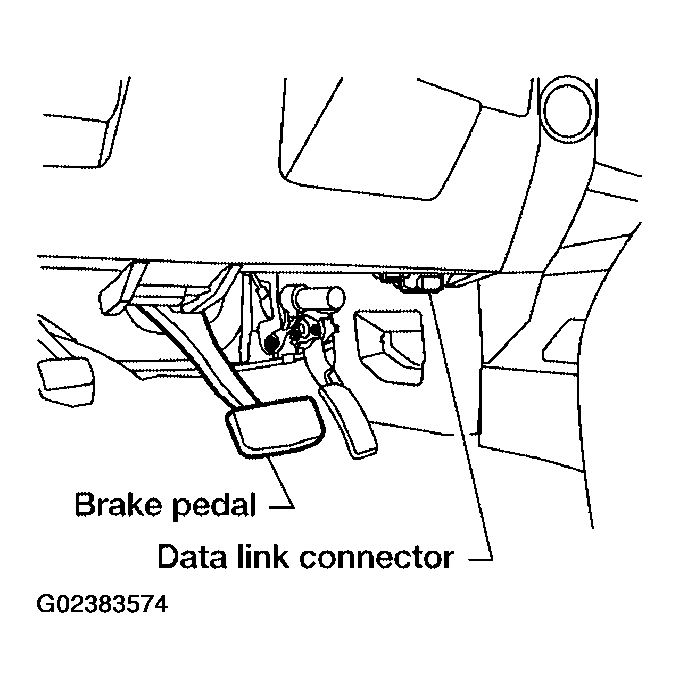

    Fig 1: Identifying Data Link Connector
    G02383574Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START (NISSAN BASED VHCL)".

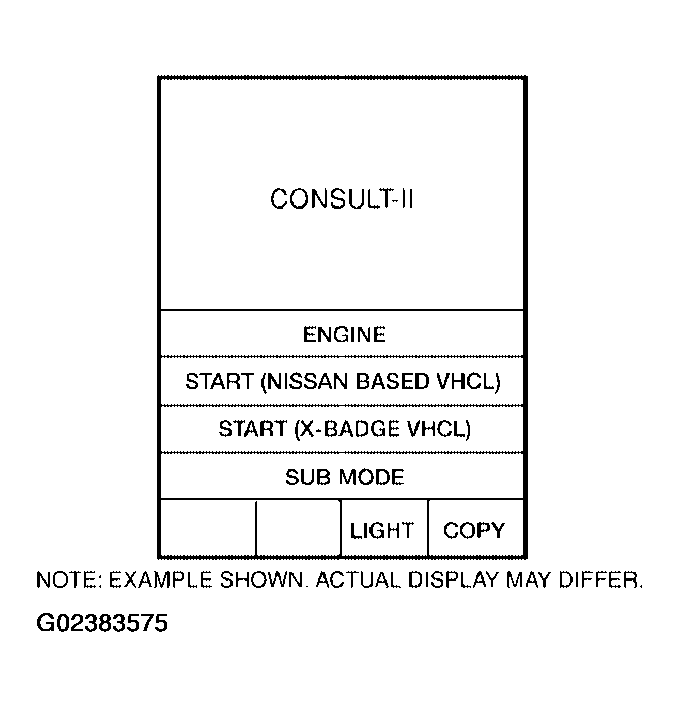

    Fig 2: Identifying "START (NISSAN BASED VHCL)"
    G02383575Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "AIR LEVELIZER" in the "SELECT SYSTEM" screen.

    If "AIR LEVELIZER" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

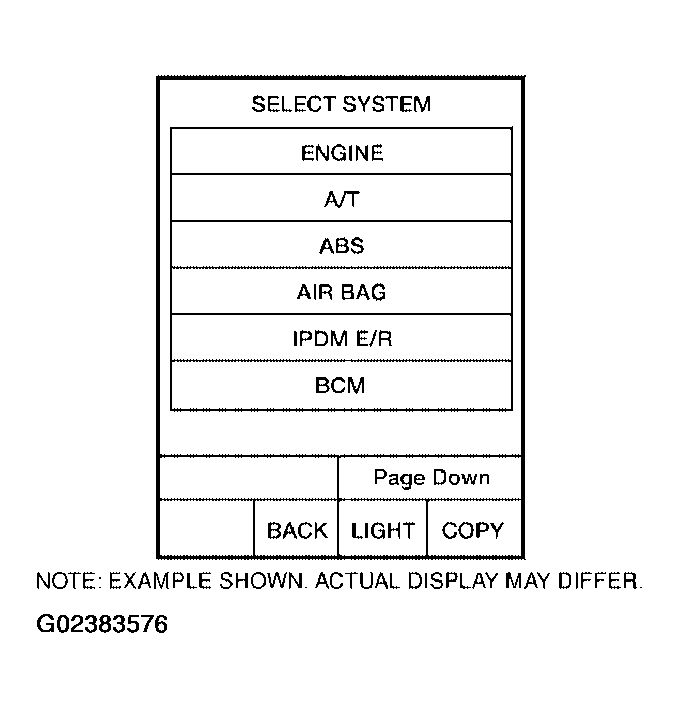

    Fig 3: Identifying "SELECT SYSTEM" Screen
    G02383576Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select the required operation from the "SELECT DIAG MODE" screen.

    For further information, see the CONSULT-II Operation Manual.

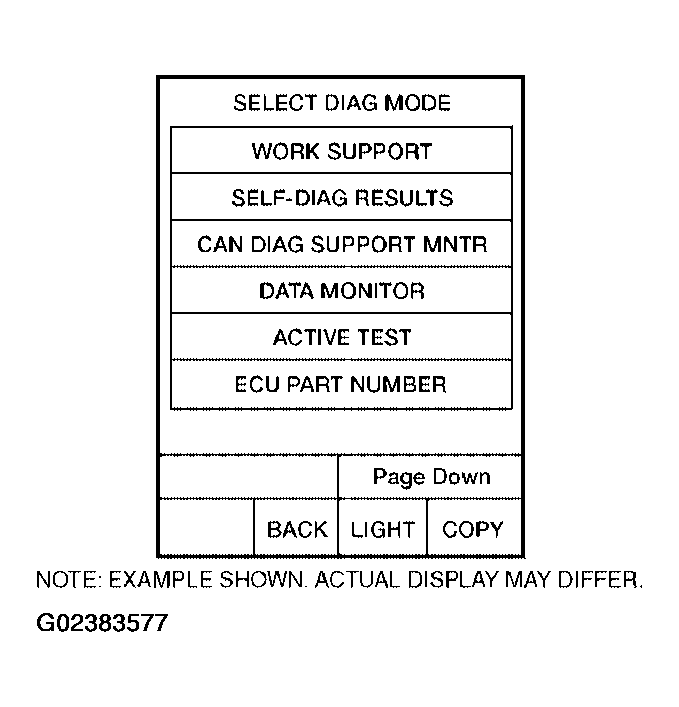

    Fig 4: Identifying "SELECT DIAG MODE" Screen
    G02383577Courtesy of NISSAN MOTOR CO., U.S.A.
