Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the stabilizer bar ends from the connecting rods using power tool.

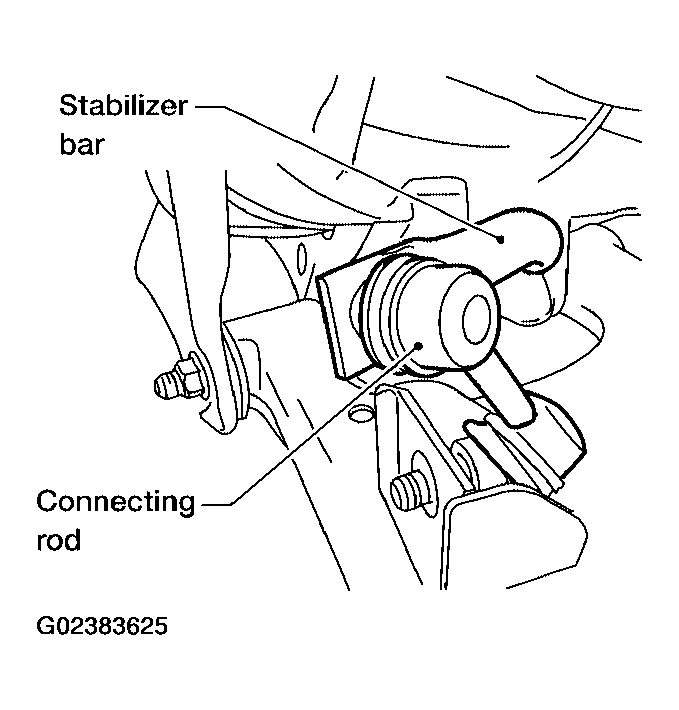

Fig 1: Identifying Stabilizer Bar And Connecting Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the stabilizer bar clamps using power tool, and remove the stabilizer bar bushings.
Remove the stabilizer bar.

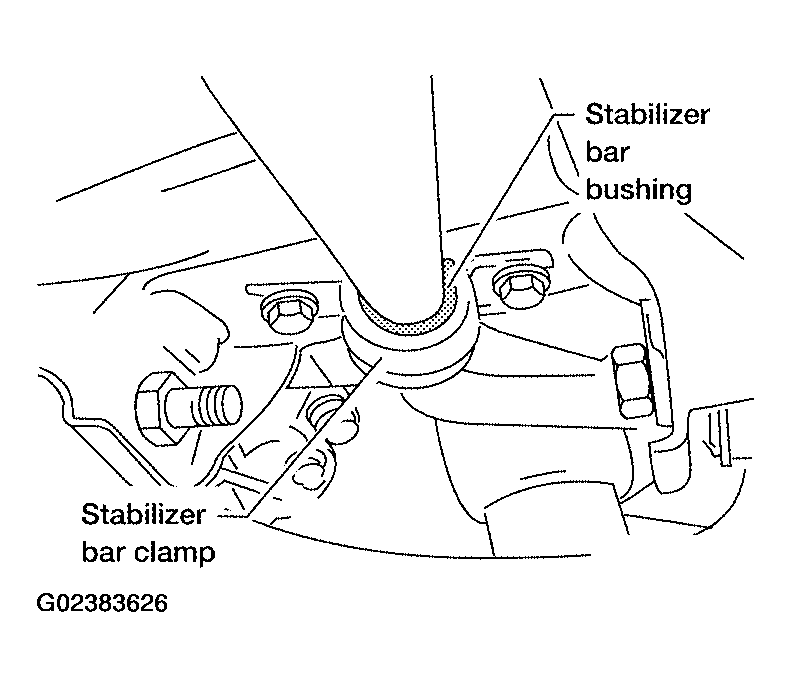

Fig 2: Identifying Stabilizer Bar Clamp And Stabilizer Bar Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.
