Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire assembly using power tool. Refer to "ROTATION ".
Use CONSULT-II "EXHAUST SOLENOID" active test to release the air pressure from the rear load leveling air suspension system.
Remove the four clips and remove the rear fender protector, front.
Disconnect the rear load leveling air suspension hose from the shock absorber.
- To disconnect the hose, push in on the lock ring using a suitable tool and pull the air hose out.

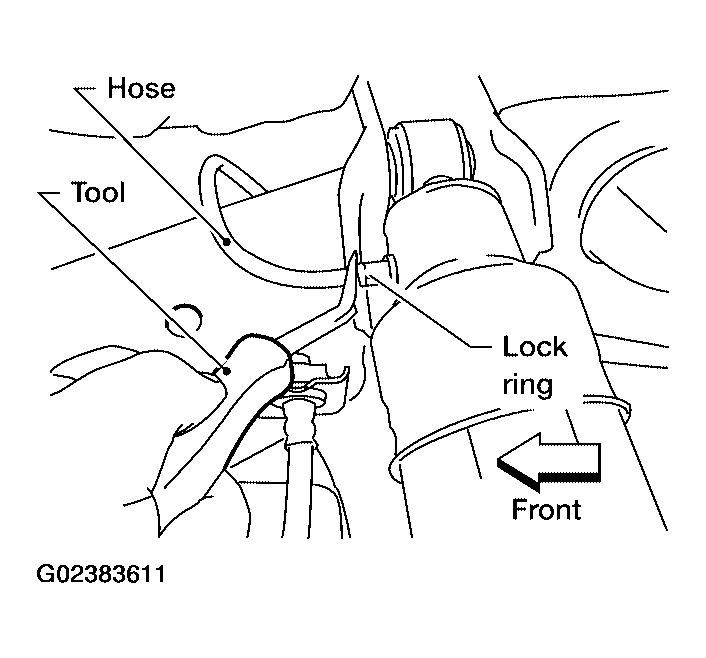

  Fig 1: Disconnecting Hose By Pushing In On Lock Ring Using Suitable Tool
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the shock absorber upper and lower end bolts using power tool.
Remove the shock absorber.
CAUTION: Do not damage the rubber boot on the shock absorber.

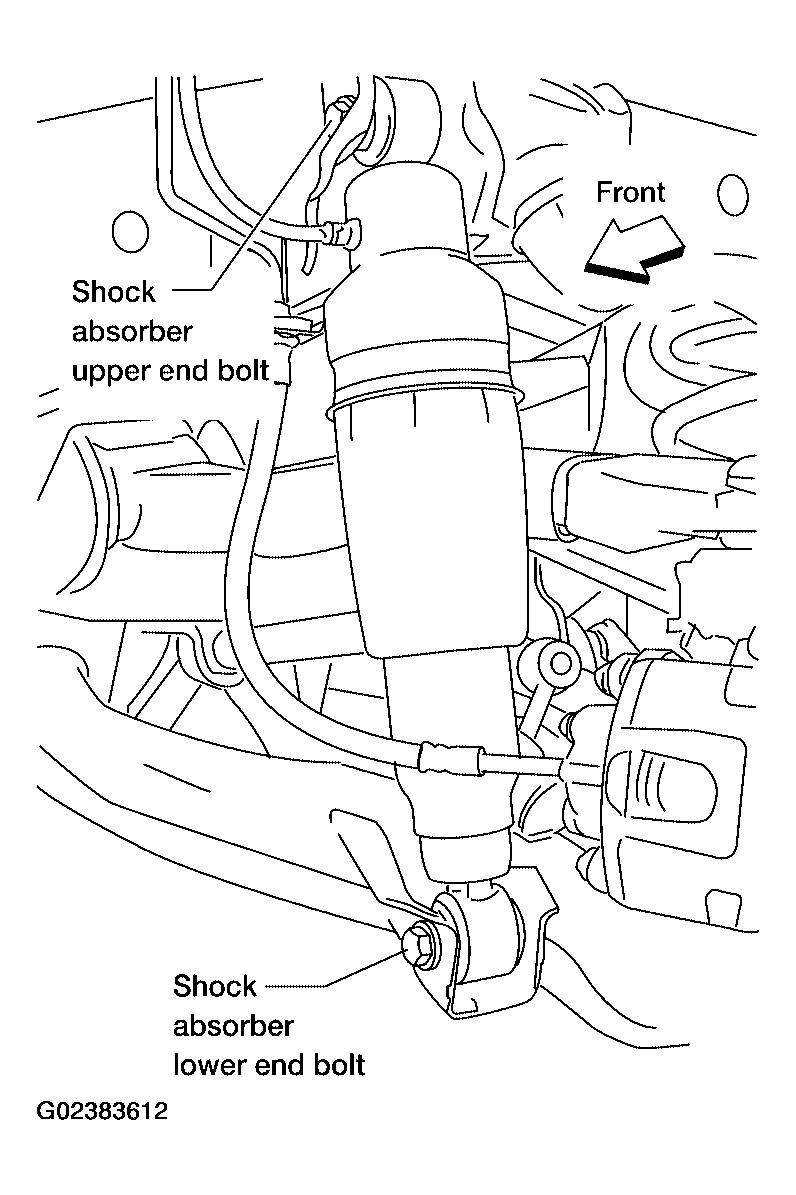

Fig 2: Identifying Shock Absorber Upper And Lower End Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
