Wheel Alignment Inspection: Camber

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Measure camber of both the right and left wheels with a suitable alignment gauge and adjust as necessary to specification.
1. Camber: Refer to "WHEEL ALIGNMENT ".

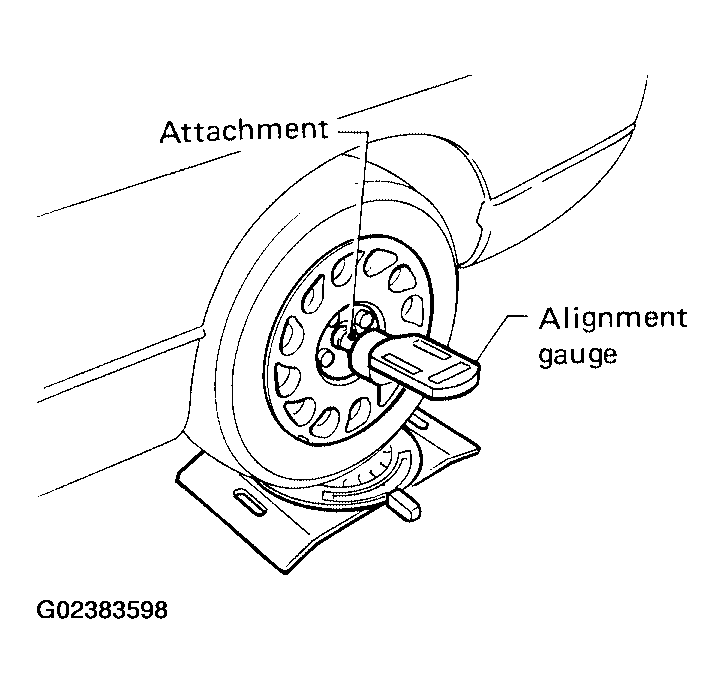

Fig 1: Measuring Camber Of Right And Left Wheels With Suitable Alignment Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.
If outside of the specified value, adjust the camber using the adjusting bolt in the front lower link.
CAUTION: After adjusting the camber then check the toe-in.

NOTE: Camber changes about 0°5' with each graduation of the adjusting bolt.
Tighten the adjusting bolt nuts to specification.

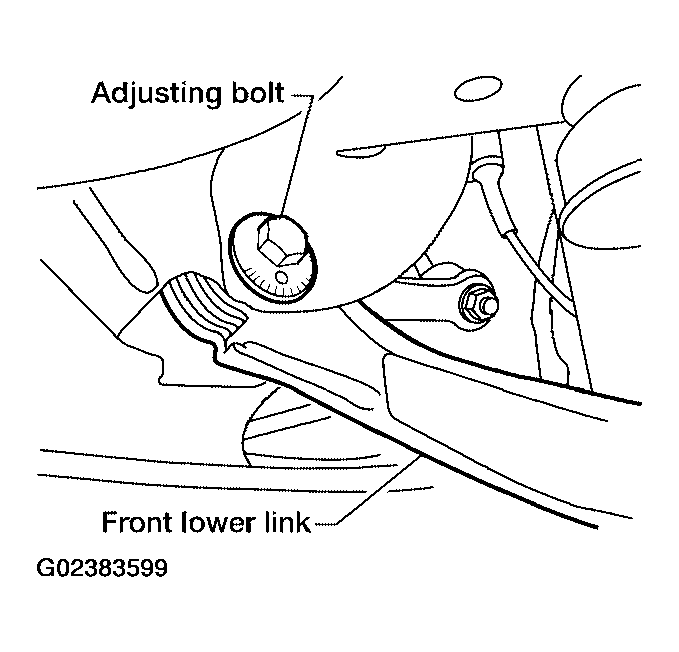

Fig 2: Identifying Front Lower Link And Adjusting Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
