Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Use CONSULT-II "EXHAUST SOLENOID" active test to release the air pressure from the rear load leveling air suspension system.
Disconnect the electrical connectors for the rear load leveling air suspension compressor assembly.
Unclip the rubber cover to access the rear load leveling air suspension compressor assembly.
Disconnect the rear load leveling air suspension hoses at the rear load leveling air suspension compressor assembly.
- To disconnect the hoses, push in on the lock ring using a suitable tool and pull the hose out.

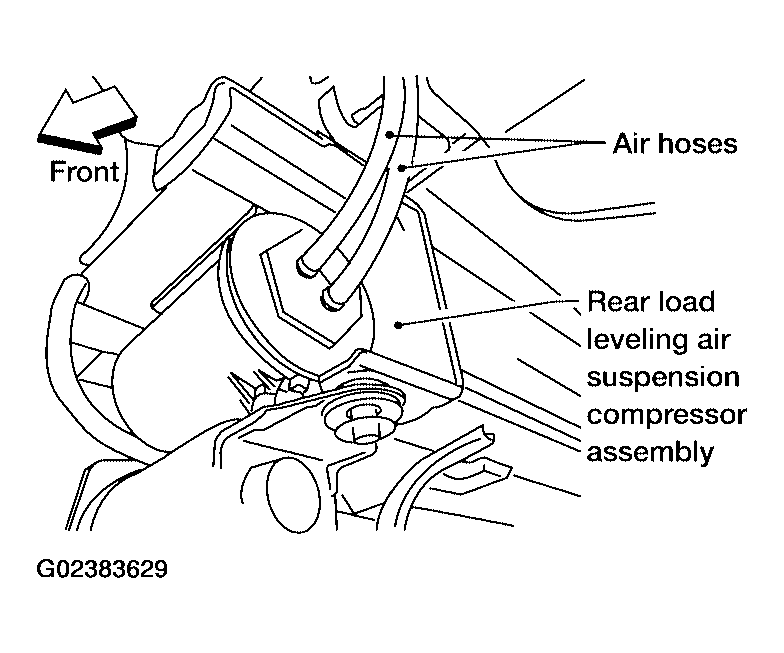

Fig 1: Identifying Air Hoses And Rear Load Leveling Air Suspension Compressor Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the four bolts that mount the rear load leveling air suspension compressor assembly to the underbody.

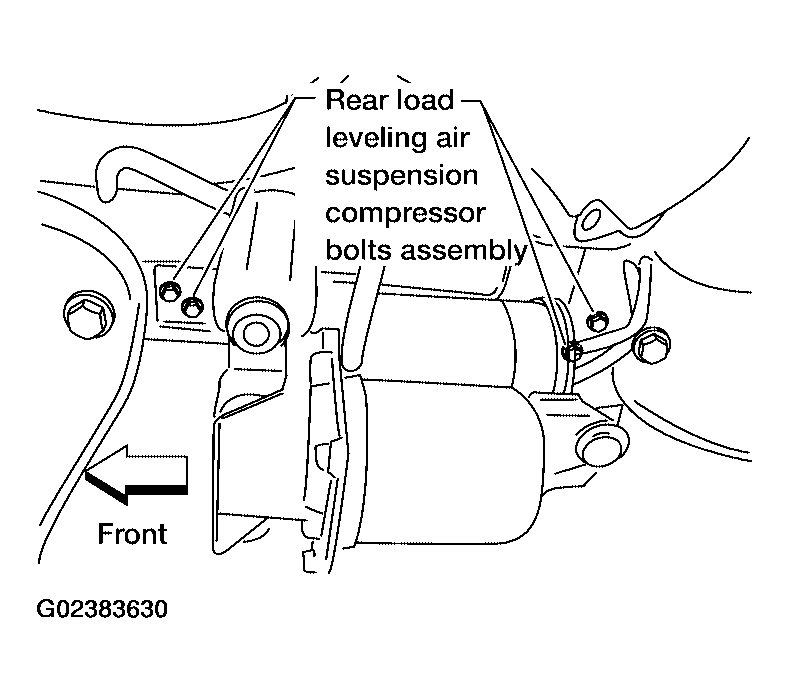

Fig 2: Identifying Rear Load Leveling Air Suspension Compressor Bolts Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
