Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

To connect the rear load leveling air suspension hoses, the lock ring must be fully seated in the fitting. Insert the hose "B" into the lock ring "A" until the lock ring "A" is touching the hose "B" as shown. Pull on the hose to check that it is securely inserted.

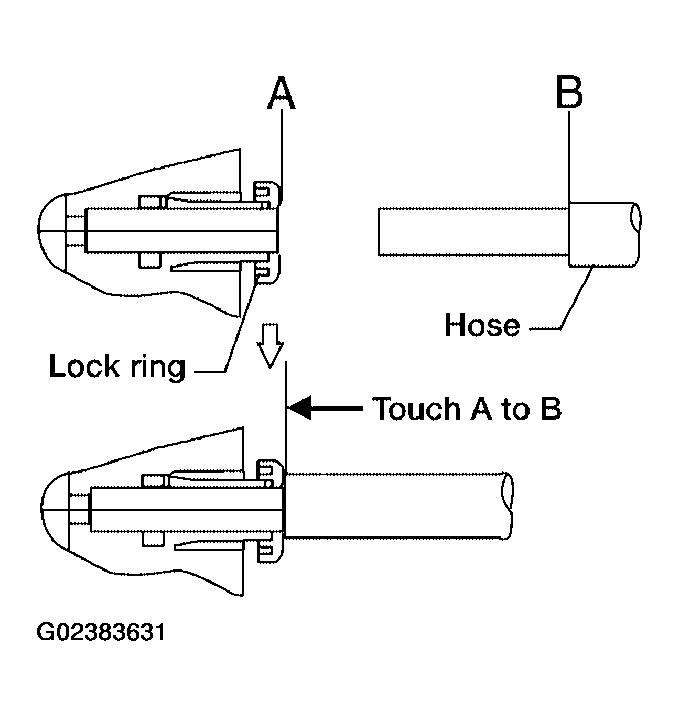

Fig 1: Inserting Hose "B" Into Lock Ring "A" Until Lock Ring "A" Is Touching Hose "B"
Courtesy of NISSAN MOTOR CO., U.S.A.
