Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use CONSULT-II "EXHAUST SOLENOID" active test to release the air pressure from the rear load leveling air suspension system.
  2. Disconnect the electrical connector for the height sensor.
  3. Remove the two height sensor bolts and height sensor arm bracket bolt.
  4. Remove the height sensor.

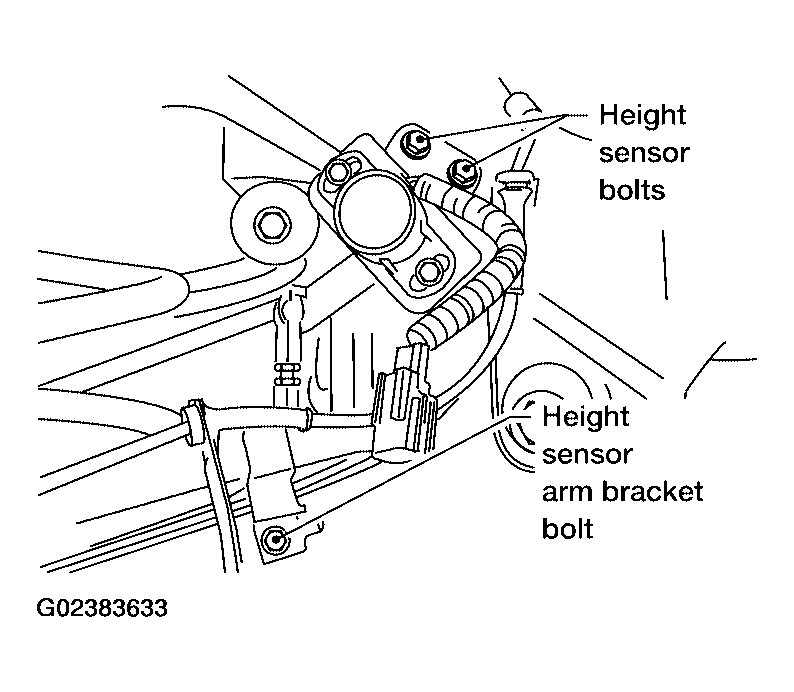

    Fig 1: Identifying Height Sensor Bolts And Height Sensor Arm Bracket Bolt
    G02383633Courtesy of NISSAN MOTOR CO., U.S.A.
