Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear LH interior trim panel. Refer to "BODY SIDE TRIM ".
  2. Disconnect the battery negative terminal.
  3. Disconnect the suspension control unit electrical connector.
  4. Remove the two bolts and remove the suspension control unit.

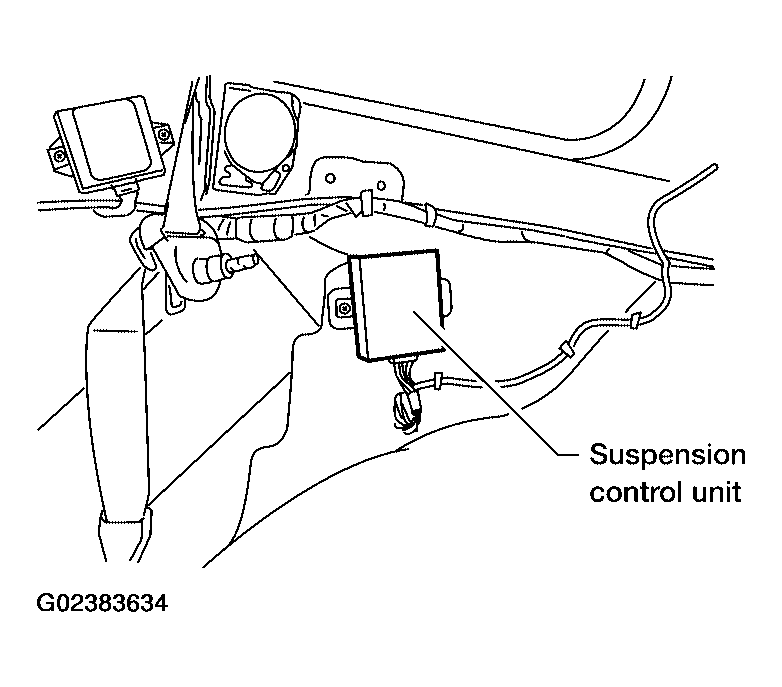

    Fig 1: Identifying Suspension Control Unit
    G02383634Courtesy of NISSAN MOTOR CO., U.S.A.
