Vertical End Play

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Measure the vertical end play using a suitable tool.
Check dust cover for damage. Replace it and the cover clamp if necessary.

NOTE: Before checking the axial forces and end play, turn the lower ball joint at least 10 revolutions so that the ball joint is properly broken in.

Vertical end play "C": 0 mm (0 in)

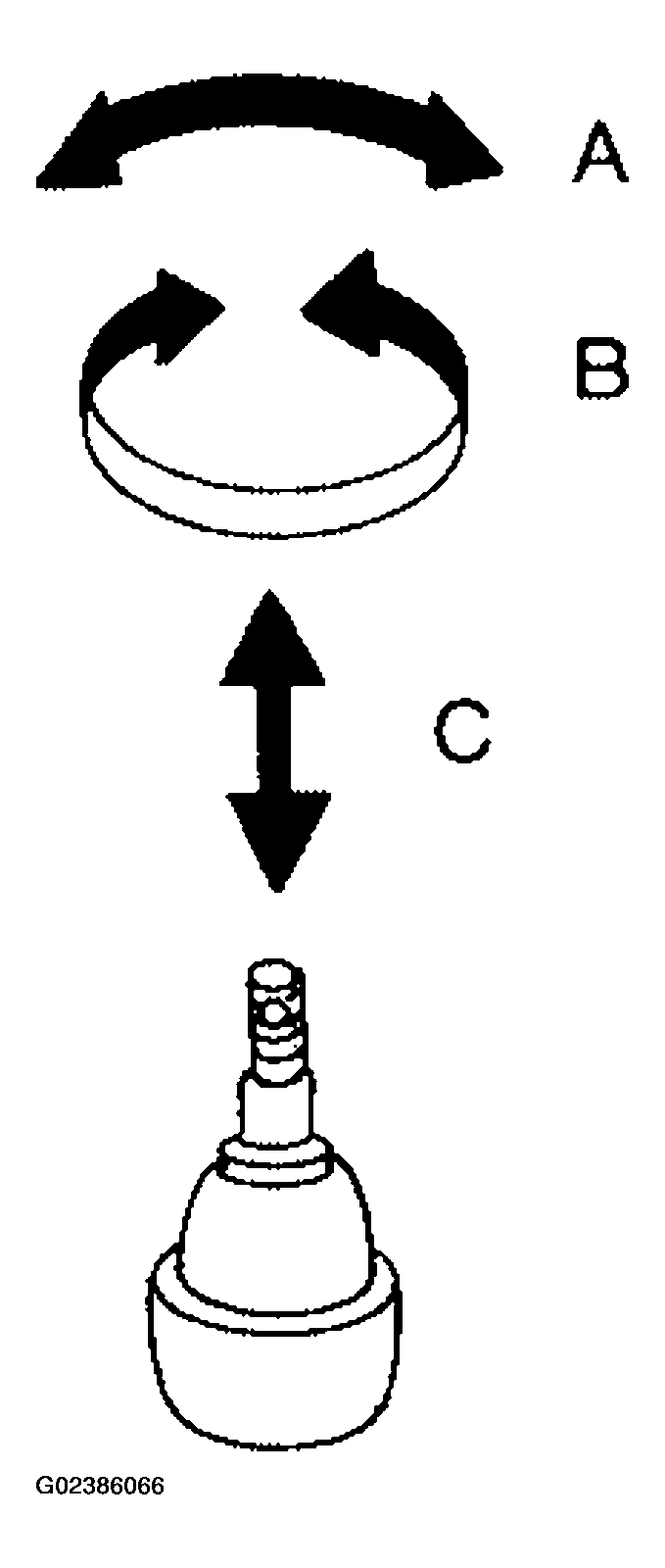

Fig 1: Measuring Vertical End Play "C"
Courtesy of NISSAN MOTOR CO., U.S.A.
