Swinging Force

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before checking the axial forces and end play, turn the lower ball joint at least 10 revolutions so that the ball joint is properly broken in.

Measure the ball joint swinging force using a suitable tool.
- Measure at the cotter pin hole for upper ball joint as shown.
- Measure at the groove for lower ball joint as shown.

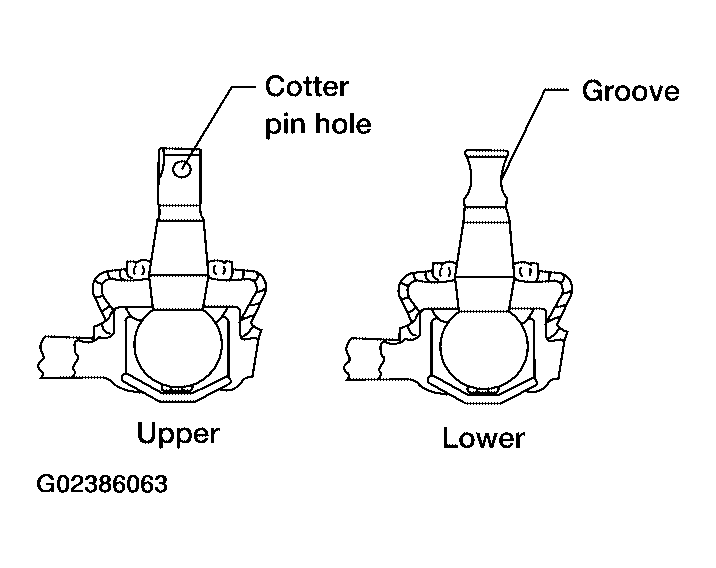

Fig 1: Measuring Cotter Pin Hole For Upper Ball Joint And Groove For Lower Ball Joint
Courtesy of NISSAN MOTOR CO., U.S.A.
Verify the ball joint swinging force is within specification.
1. Swinging force "A"
  1. Upper ball joint: 8.1-103.2 N (0.8-10.5 kg-f, 1.8-23.2 lb-f)
2. Lower ball joint: 11.4-145.5 N (1.1-14.8 kg-f, 2.5-32.7 lb-f)

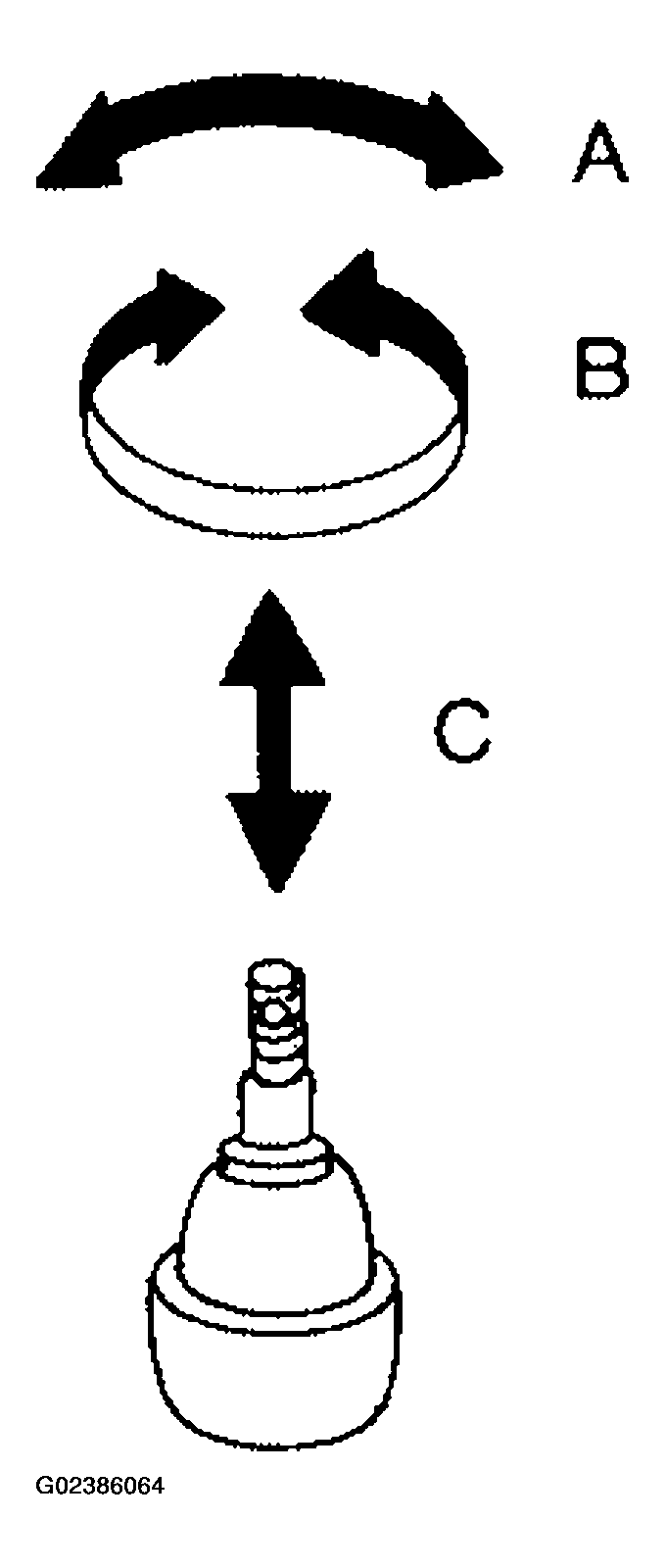

Fig 2: Verifying Ball Joint Swinging Force "A"
Courtesy of NISSAN MOTOR CO., U.S.A.
