Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine under cover using power tool.
  2. Remove stabilizer bar mounting bracket bolts and connecting rod nuts as shown, using power tool.
  3. Remove bushings from stabilizer bar.

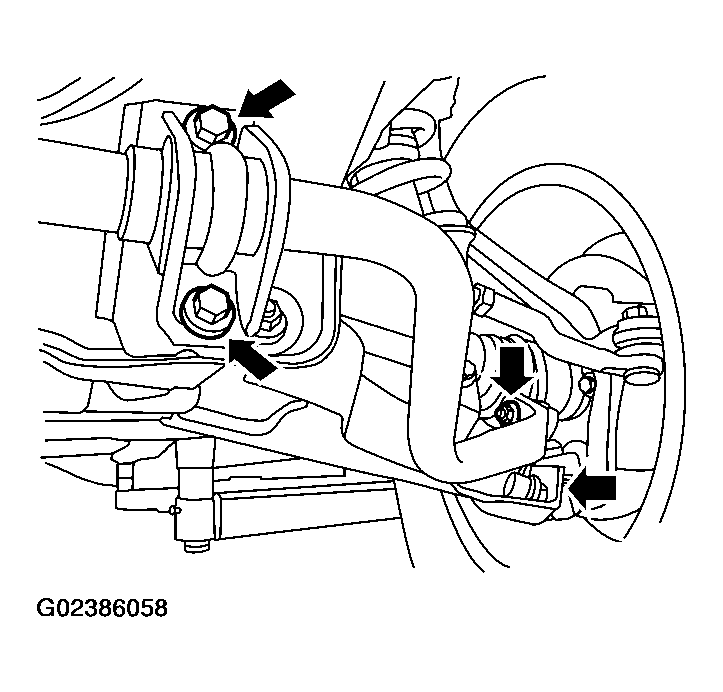

    Fig 1: Identifying Stabilizer Bar Mounting Bracket Bolts And Connecting Rod Nuts
    G02386058Courtesy of NISSAN MOTOR CO., U.S.A.
