Front Suspension Parts

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Check front suspension parts for excessive play, cracks, wear and other damage.

Shake each front wheel to check for excessive play.
If looseness is noted, inspect wheel bearing end play, then check ball joint end play. Refer to "INSPECTION ".
Make sure that the cotter pin is inserted (4x4 only).
Retighten all nuts and bolts to the specified torque.
1. Suspension component torques: Refer to "COMPONENTS ".

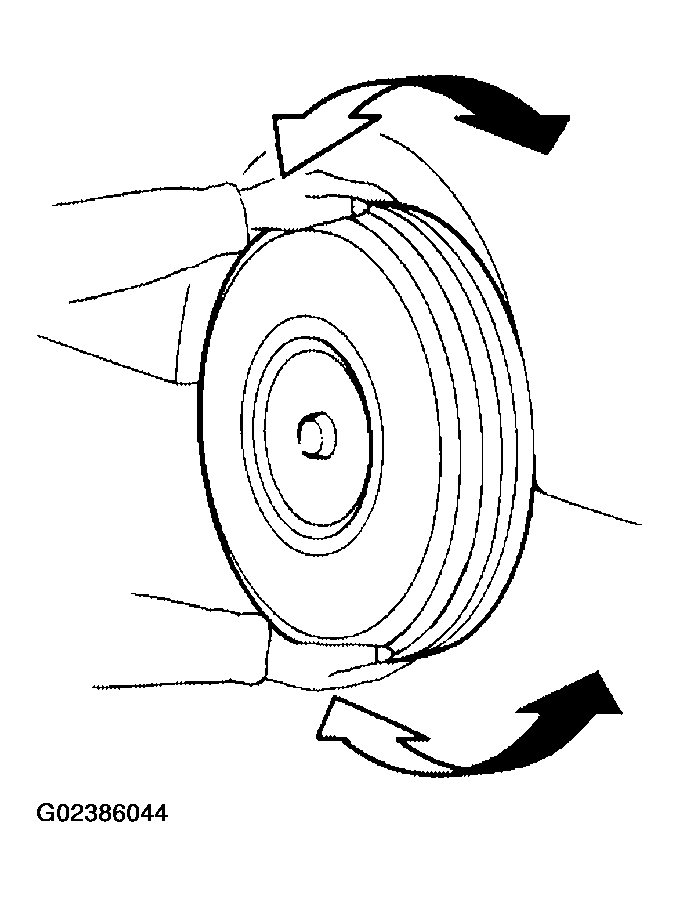

Fig 1: Shaking Front Wheel To Check For Excessive Play
Courtesy of NISSAN MOTOR CO., U.S.A.
Check shock absorber for oil leakage and other damage.
Check suspension ball joint for grease leakage and ball joint dust cover for cracks and other damage.

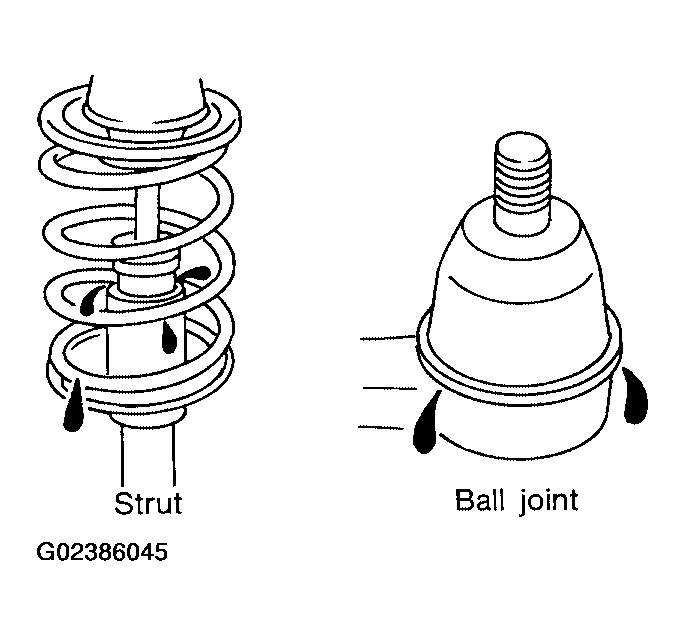

Fig 2: Checking Suspension Ball Joint For Grease Leakage
Courtesy of NISSAN MOTOR CO., U.S.A.
