Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire using power tool.
  2. Remove lower shock absorber bolt.
  3. Remove stabilizer bar connecting rod lower nut using power tool, then separate connecting rod from lower link. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove drive shaft, if equipped. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove pinch bolt from steering knuckle using power tool, then separate lower link ball joint from steering knuckle.

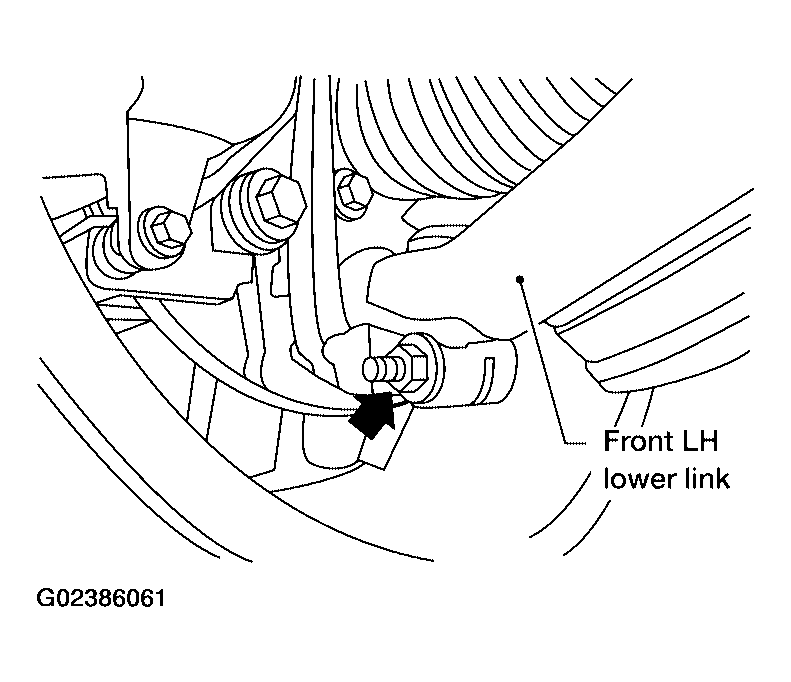

    Fig 1: Identifying Lower Link Ball Joint
    G02386061Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove lower link adjusting bolts and nuts, then the lower link.

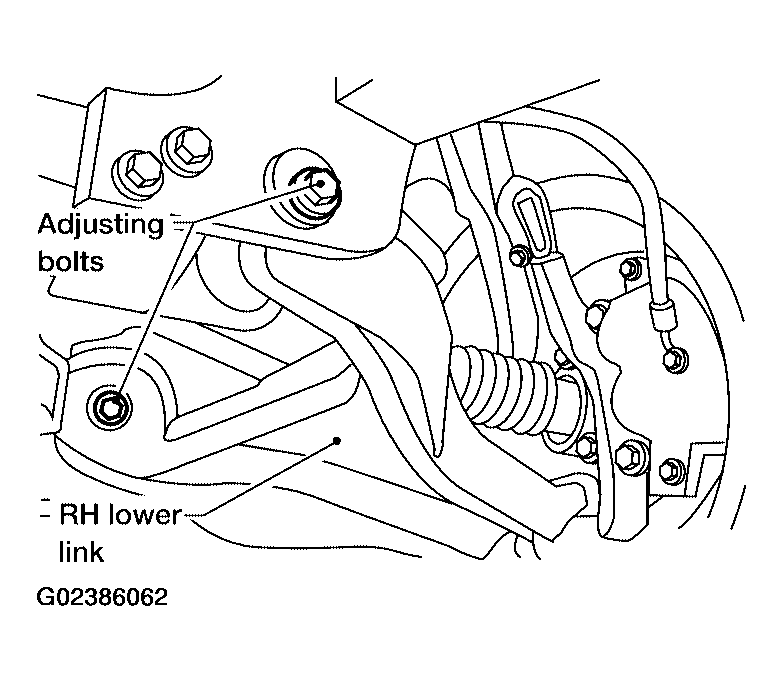

    Fig 2: Identifying Lower Link Adjusting Bolts And Lower Link
    G02386062Courtesy of NISSAN MOTOR CO., U.S.A.
