Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire using power tool.
Remove the shock absorber lower bolt using power tool.
Remove the three shock absorber upper mounting nuts using power tool.
Remove the coil spring and shock absorber assembly.
- Turn steering knuckle out to gain enough clearance for removal.

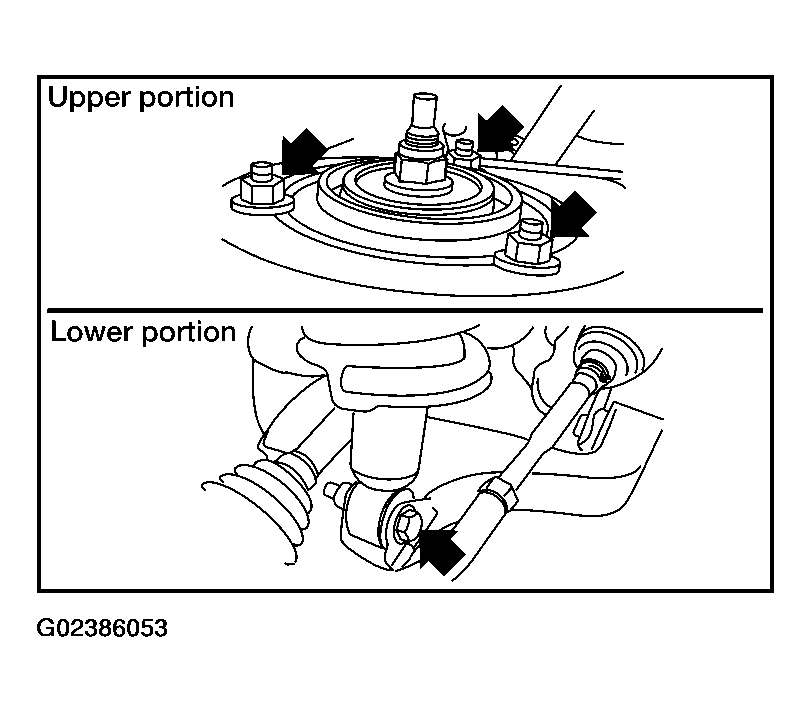

Fig 1: Identifying Shock Absorber Upper Mounting Nuts And Shock Absorber Lower Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.
