Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. When installing coil spring on shock absorber, it must be positioned as shown.

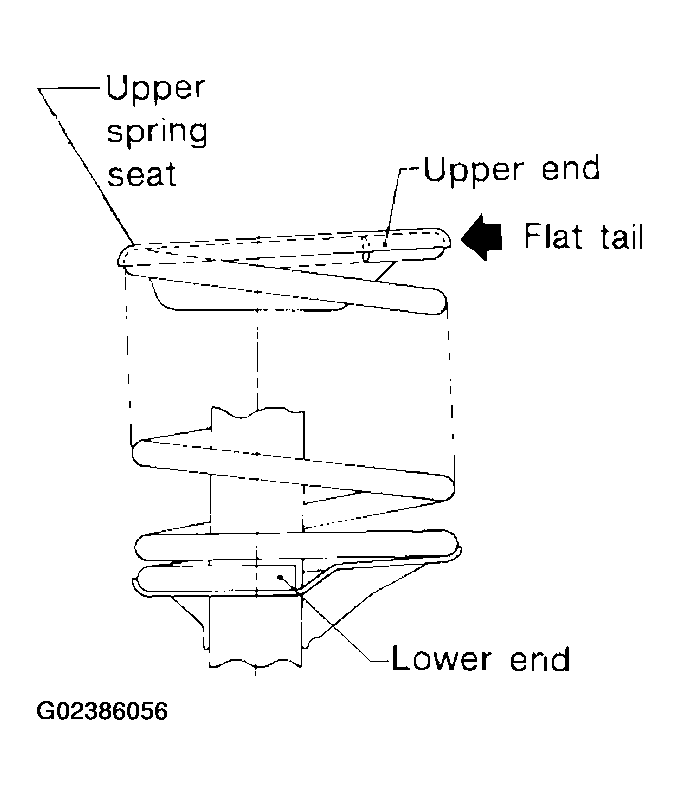

    Fig 1: Identifying Correct Position For Installation Of Coil Spring On Shock Absorber
    G02386056Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install upper mounting insulator as shown in line with lower shock absorber mount and step in shock absorber lower seat.
    • The step in the shock absorber lower seat faces outside of vehicle.
  3. Tighten the piston rod lock nut to specification. Refer to "COMPONENTS ".
    • Use a new piston rod lock nut for assembly.

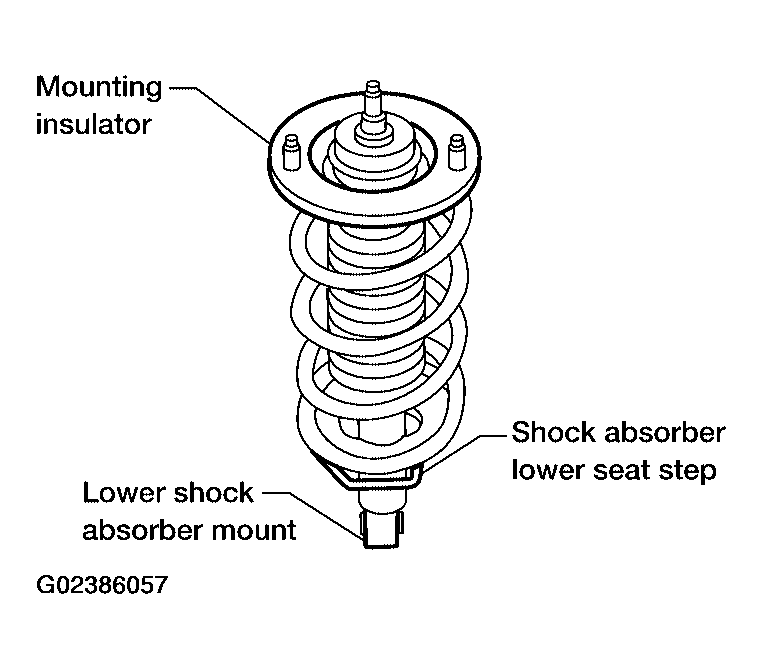

    Fig 2: Installing Upper Mounting Insulator In Line With Lower Shock Absorber Mount
    G02386057Courtesy of NISSAN MOTOR CO., U.S.A.
