Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Rear Wheel Hub and Bearing Assembly

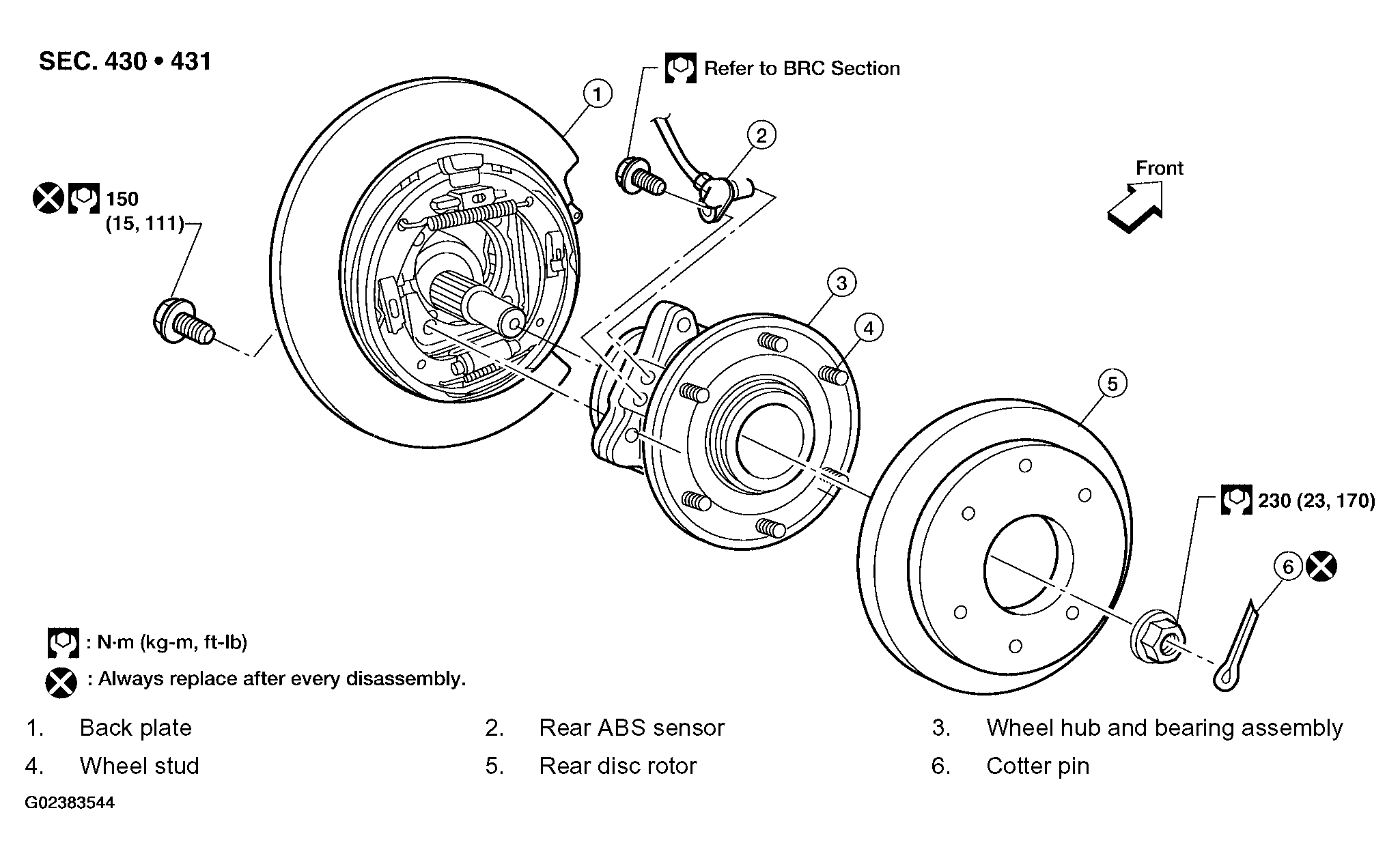

Fig 1: Exploded View Of Rear Wheel Hub And Bearing Assembly With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The rear ABS sensor is routed through the back of the rear backing plate and into the side of the wheel hub and bearing assembly. It is necessary to remove the wheel hub and bearing assembly to remove the rear ABS sensor.
