Final Drive Side

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mount the drive shaft in a vise.
    CAUTION: When mounting the drive shaft in a vise, use copper or aluminum plates between the vise and the drive shaft.
  2. Remove the boot bands.
  3. If the plug needs to be removed, move the boot to the wheel side, then drive the plug out using a suitable plastic hammer.
  4. Remove the stopper ring with a flat-bladed screwdriver as shown, and pull the housing out.

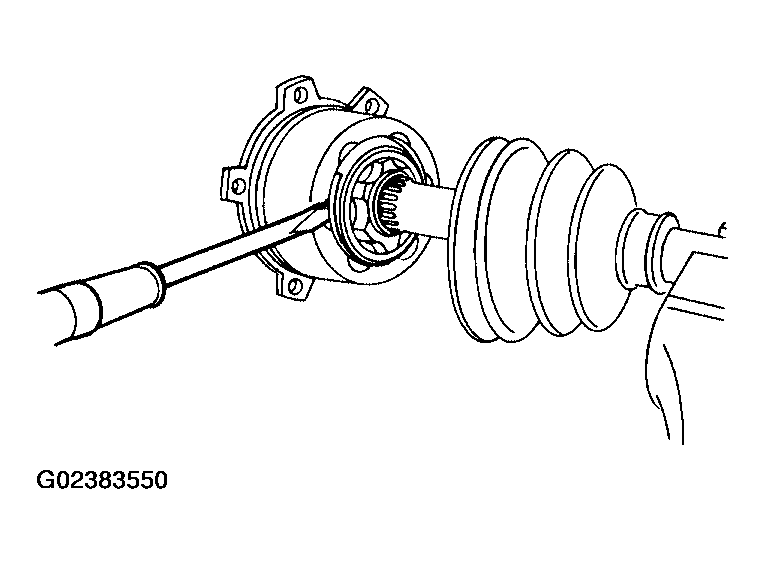

    Fig 1: Removing Stopper Ring With Flat-Bladed Screwdriver
    G02383550Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the snap ring, then remove the ball cage, steel ball, inner race assembly from the drive shaft.

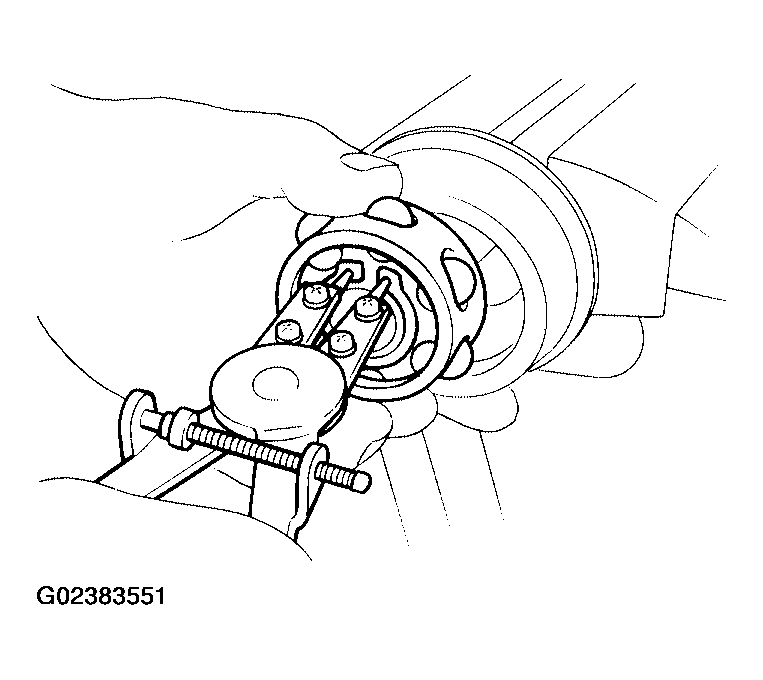

    Fig 2: Removing Snap Ring From Drive Shaft
    G02383551Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove the boot from the drive shaft.
  7. Remove any old grease on the housing using paper towels.
