Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive shaft inside flange bolts to disconnect the rear drive shafts from the rear final drive. Support the rear drive shaft using a suitable wire.
  2. Remove the side flange using Tools as shown.
    1. Install Tool "A" on the side flange.
      1. Tool number A: KV40104100 ( - )
    2. Pull the side flange out using Tool "B" as shown.
      1. Tool number B: ST36230000 (J-25840-A)
      2. Circlip installed position: Final drive side

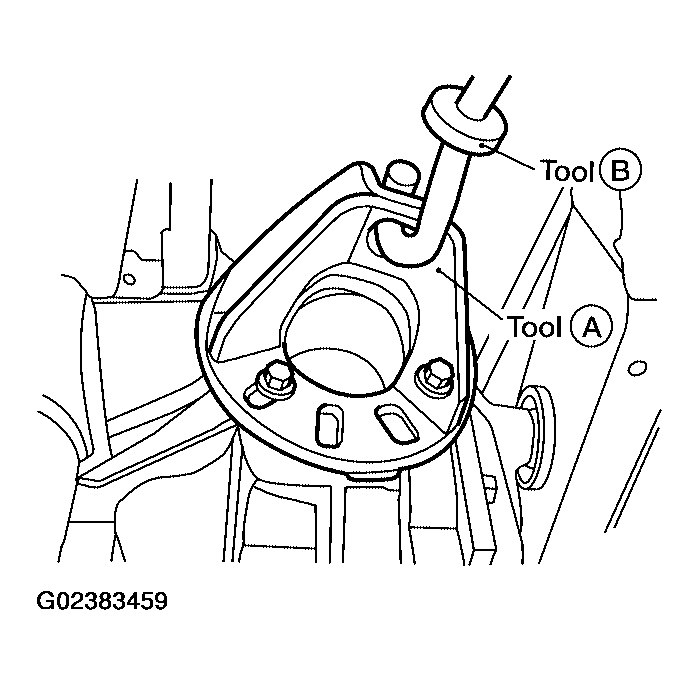

    Fig 1: Removing The Side Flange Using Tools "A" And "B"
    G02383459Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the side oil seal using a suitable tool as shown.

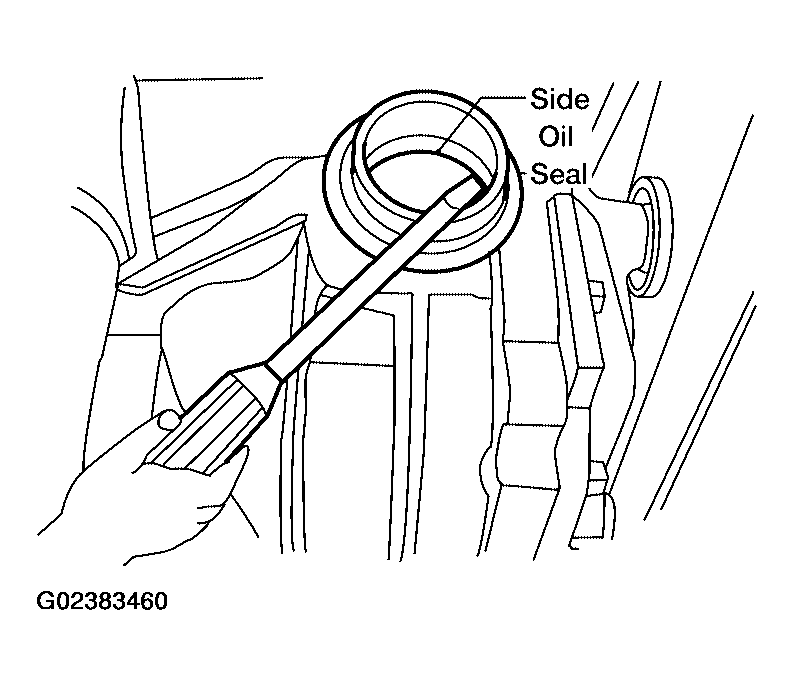

    Fig 2: Removing Side Oil Seal Using Suitable Tool
    G02383460Courtesy of NISSAN MOTOR CO., U.S.A.
