Available Pinion Height Adjusting Washers

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

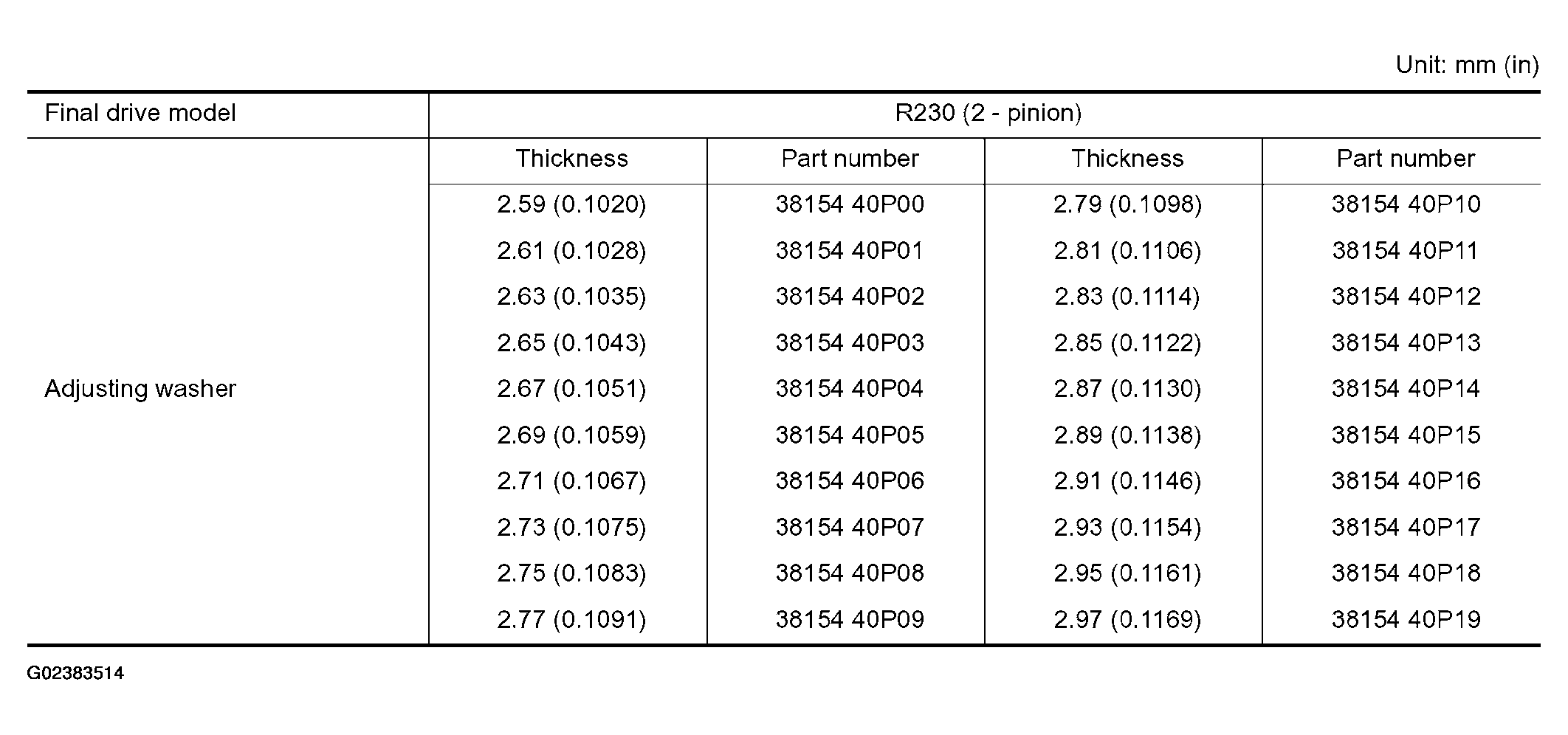

Fig 1: Drive Pinion Height Adjustment - Available Pinion Height Adjusting Washers
G02383514Courtesy of NISSAN MOTOR CO., U.S.A.
