Drive Gear RUNOUT

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Check the runout of the drive gear using a dial gauge as shown.

  1. Runout limit: 0.05 mm (0.0020 in) or less

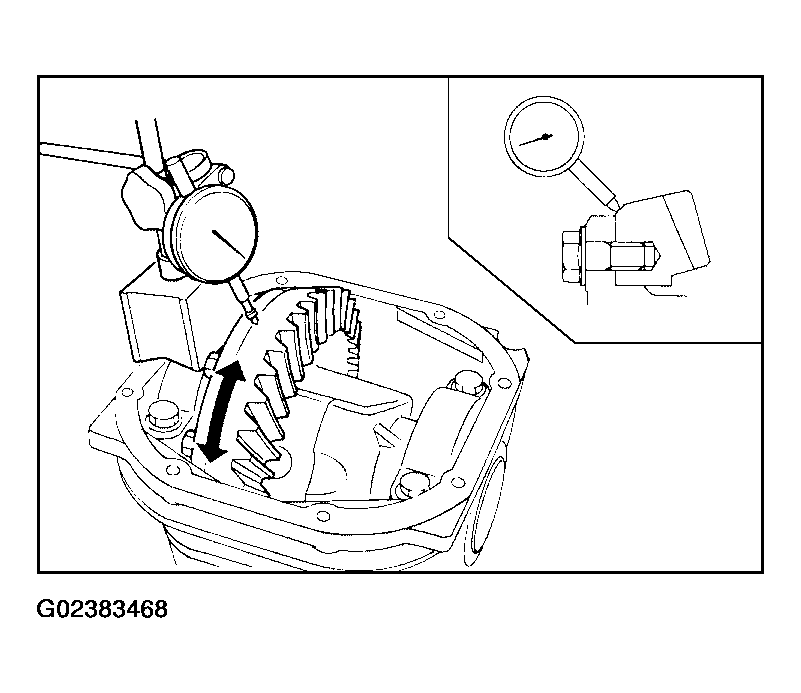

    Fig 1: Checking The Runout Of Drive Gear Using A Dial Gauge
    G02383468Courtesy of NISSAN MOTOR CO., U.S.A.
