Removal Of Differential Case Assembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Use two 45 mm (1.77 in) spacers to mount the gear carrier on Tool.
1. Tool number: KV38100800 (J-25604-01)

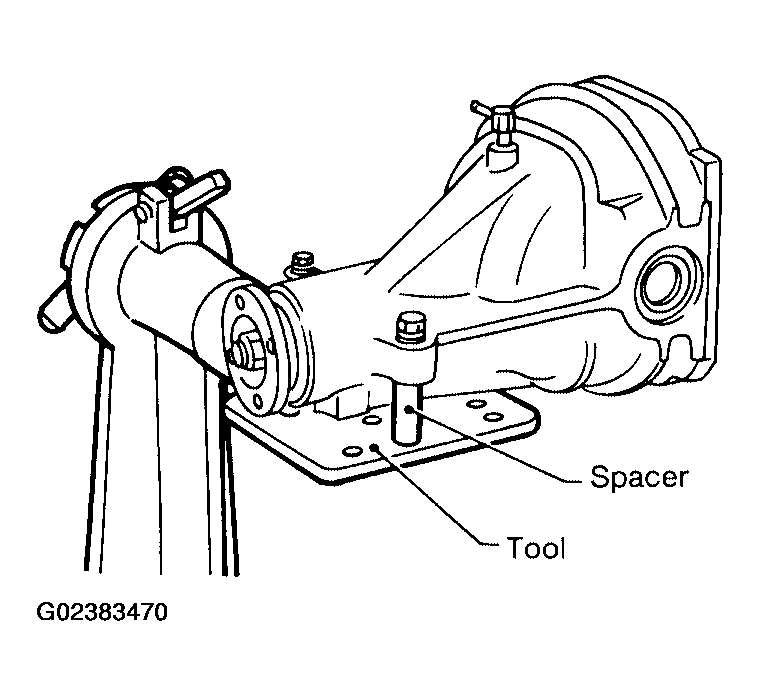

Fig 1: Using Spacers To Mount Gear Carrier On Tool (KV38100800 {J-25604-01})
Courtesy of NISSAN MOTOR CO., U.S.A.
For installation, paint match marks on one side of the bearing caps as shown.
NOTE: Bearing caps are line-bored for initial assembly. Replace the bearing caps in their original positions.

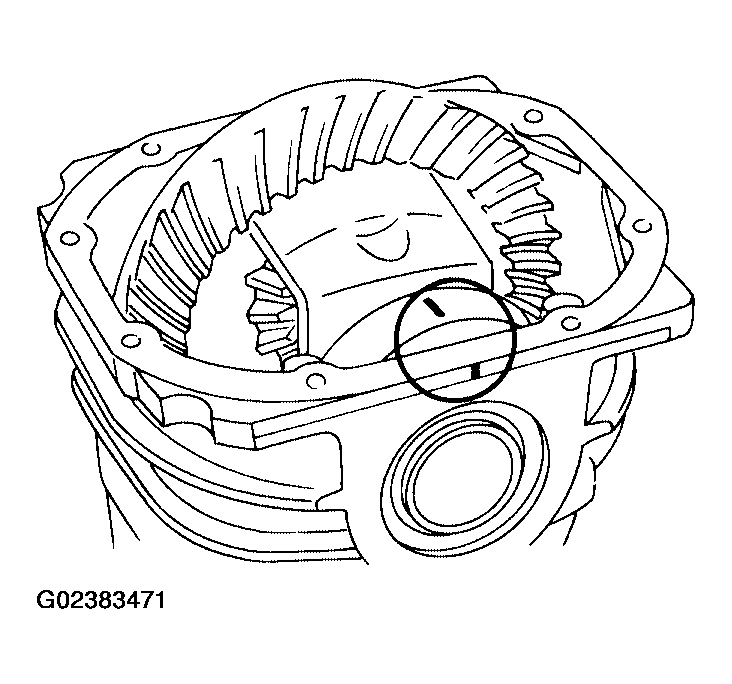

Fig 2: Painting Match Marks On One Side Of Bearing Caps
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the bearing caps.

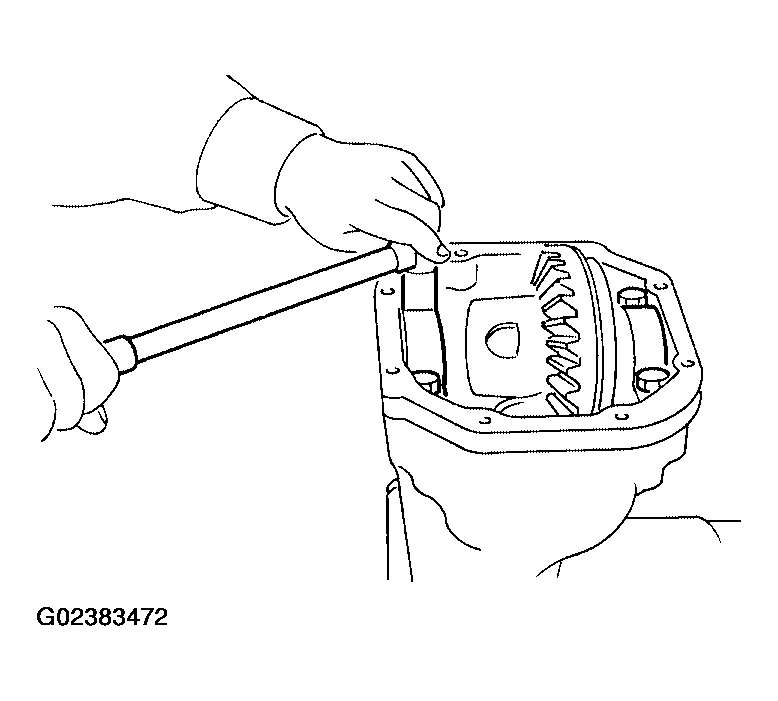

Fig 3: Removing Bearing Caps
Courtesy of NISSAN MOTOR CO., U.S.A.
Lift the differential case assembly out of the gear carrier using Tool.
1. Tool number: HT72400000 ( - )

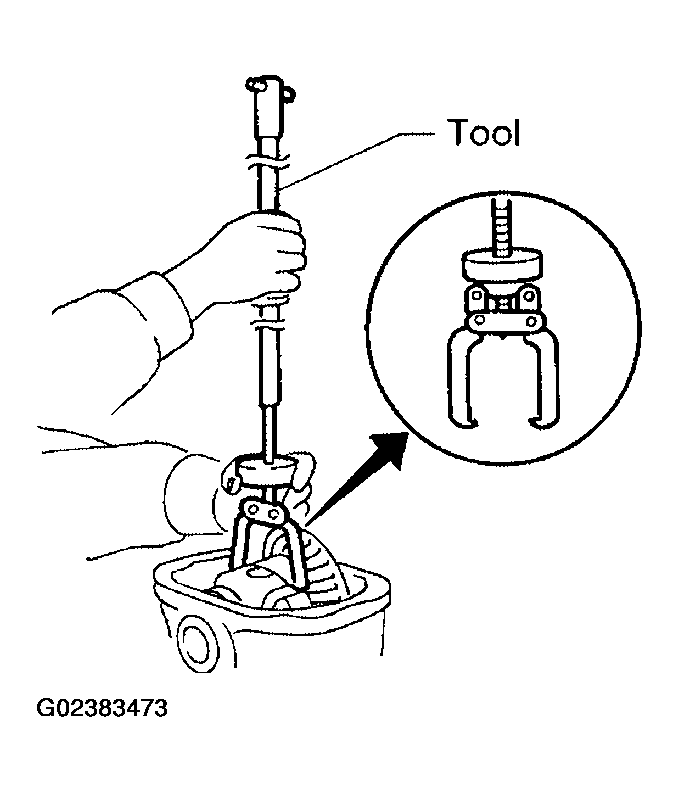

Fig 4: Lifting Differential Case Assembly Out Of Gear Carrier Using Tool (HT72400000)
Courtesy of NISSAN MOTOR CO., U.S.A.
- Keep the side bearing outer races together with the inner races. Do not mix them up.
- Keep the adjusting washers together with the bearings.

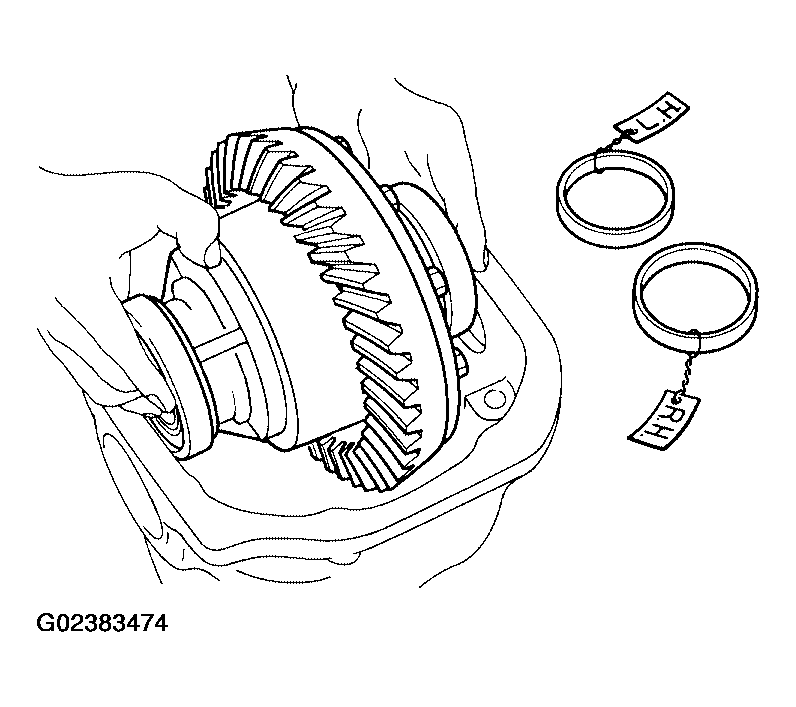

Fig 5: Adjusting The Washers Together With Bearings
Courtesy of NISSAN MOTOR CO., U.S.A.
