Disassembly Of Differential Case Assembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side bearing inner races using Tools.
    CAUTION: To prevent damage to the bearing, engage the puller jaws in the groove.
    1. Tool number A: ST3306S001 ( - )
      1. B: ST33061000 (J-8107-2)

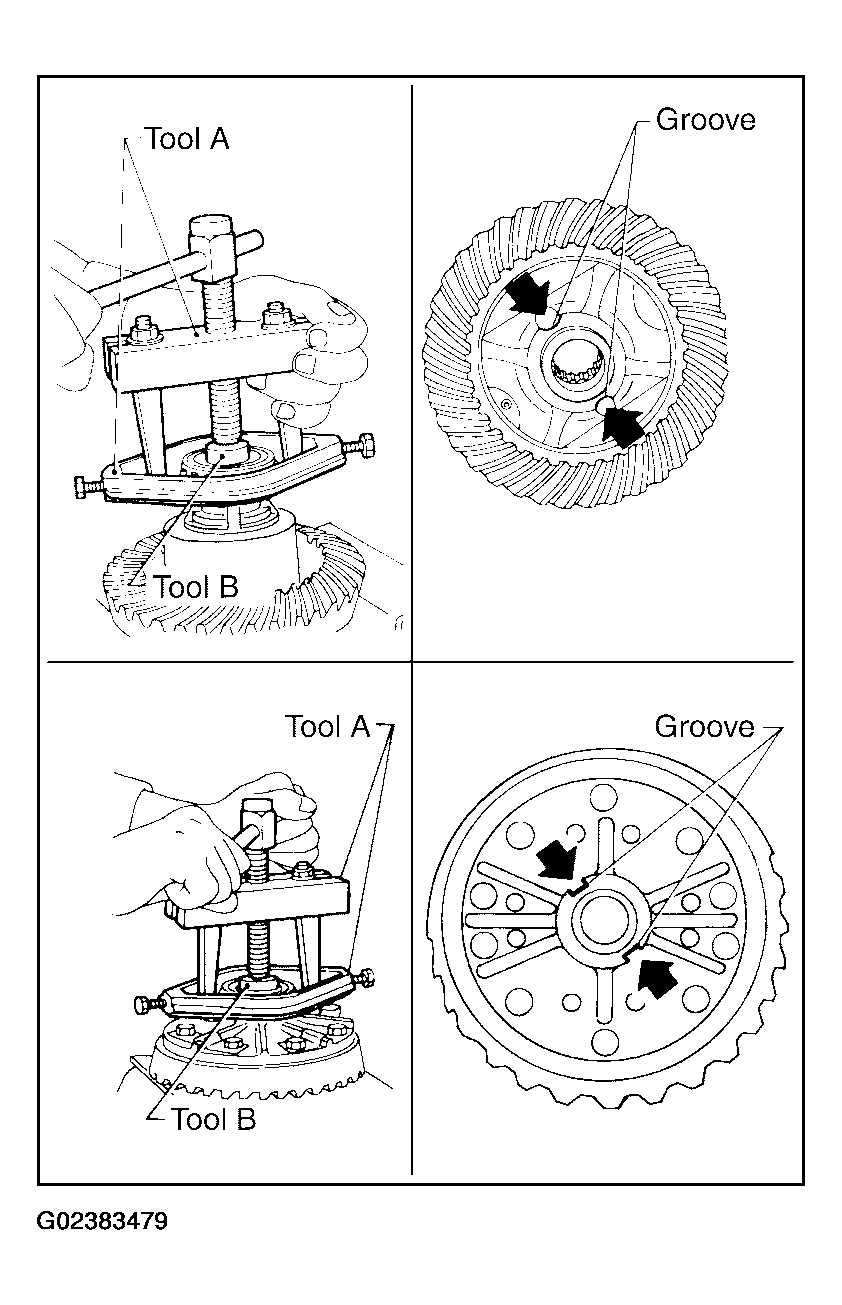

    Fig 1: Removing Side Bearing Inner Races Using Tools
    G02383479Courtesy of NISSAN MOTOR CO., U.S.A.
    • Do not to mix the left and right side parts, clearly label the parts during disassembly.

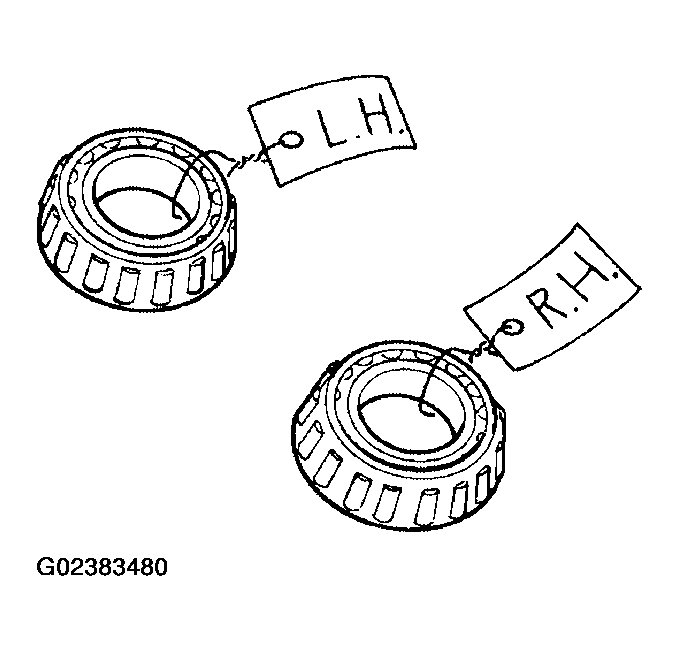

    Fig 2: Labeling Left And Right Side Parts
    G02383480Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Loosen the drive gear bolts in a criss-cross pattern and remove the bolts.
  3. Tap the drive gear off the differential case using a soft hammer.
    • Tap evenly all around the drive gear to keep the drive gear from binding.

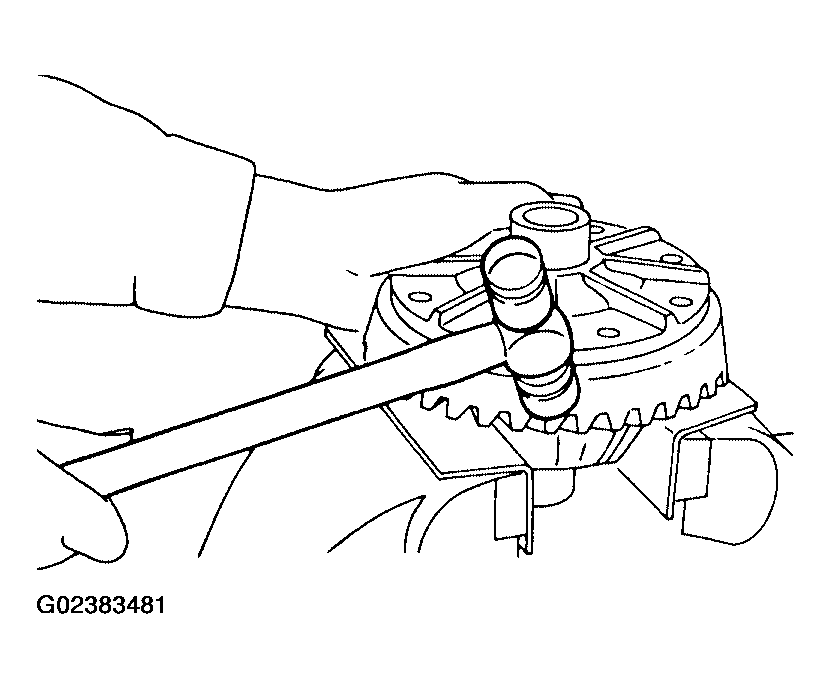

    Fig 3: Tapping The Drive Gear Off The Differential Case Using A Soft Hammer
    G02383481Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Drive the pinion mate shaft lock pin out using a suitable punch, from the drive gear side.

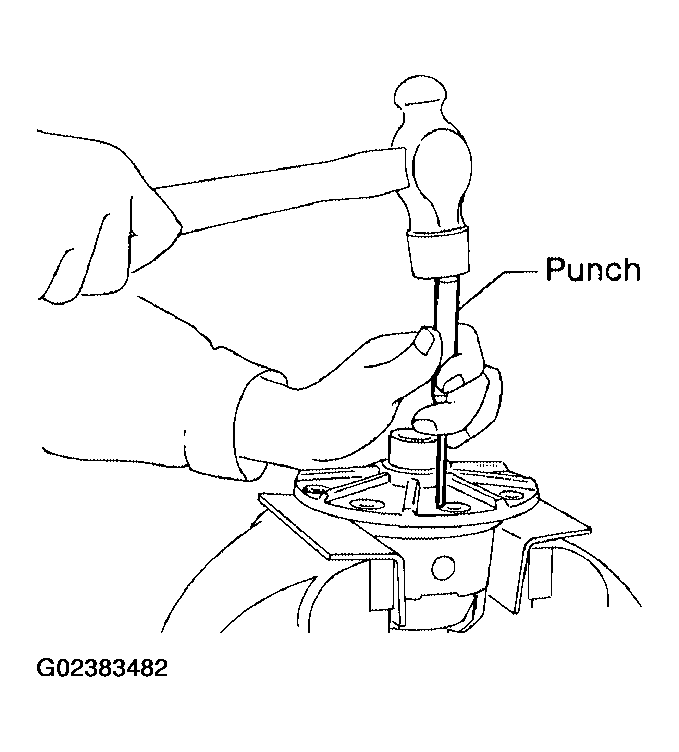

    Fig 4: Driving Pinion Mate Shaft Lock Pin Out Using Suitable Punch
    G02383482Courtesy of NISSAN MOTOR CO., U.S.A.
