Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front final drive. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove differential side shaft and side flange using suitable tool.

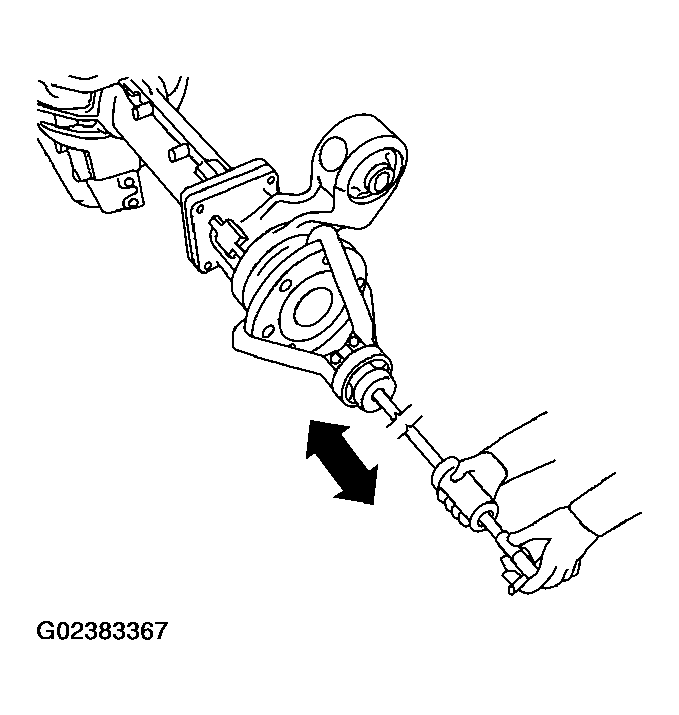

    Fig 1: Removing Differential Side Shaft And Side Flange Using Suitable Tool
    G02383367Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place a small hole in seal case, using suitable punch or drill.

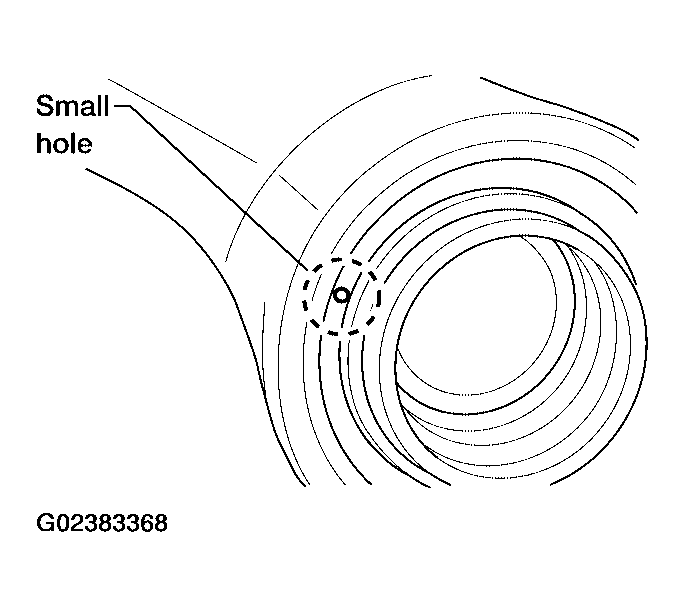

    Fig 2: Placing Small Hole In Seal Case, Using Suitable Punch Or Drill
    G02383368Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Assemble Tool as shown and remove seal.
    1. Tool number: SP8P
  5. Installation is in the reverse order of removal.

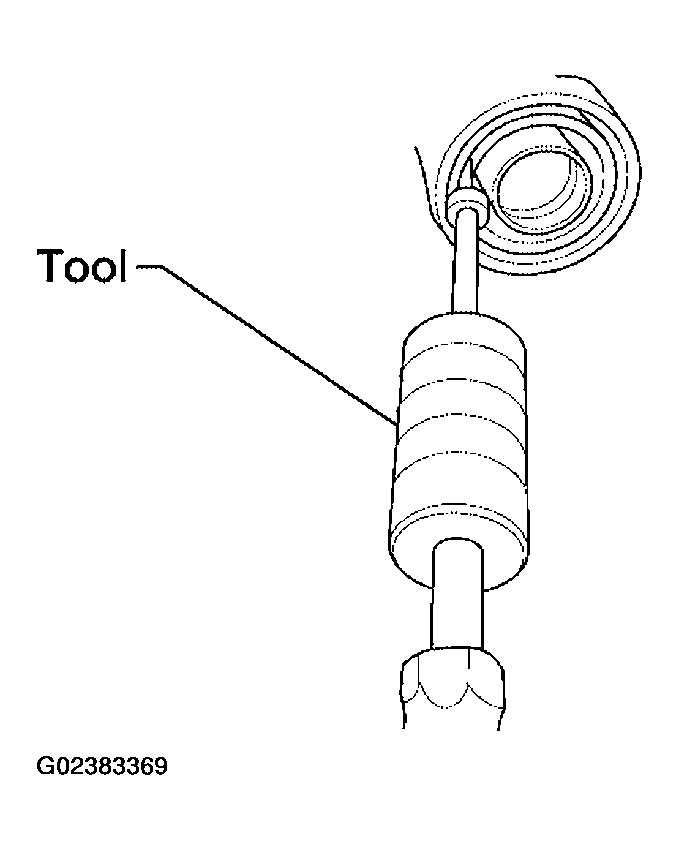

    Fig 3: Assembling Tool (SP8P) And Removing Seal
    G02383369Courtesy of NISSAN MOTOR CO., U.S.A.
