Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Apply 3.2mm (0.126 in) bead of sealant to the rear cover.
- Use Genuine Silicone RTV sealant or equivalent. Refer to. "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

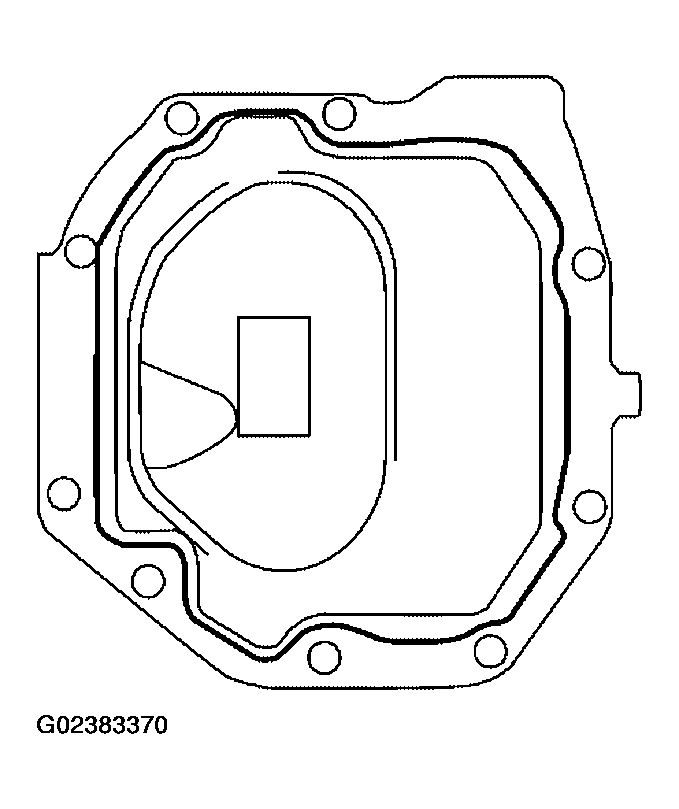

Fig 1: Applying Bead Of Sealant To Rear Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Install rear cover and tighten rear cover bolts in the order as shown. "COMPONENTS "
Fill final drive with recommended gear oil. Refer to "RECOMMENDED FLUIDS AND LUBRICANTS ".
Install front final drive. Refer to "REMOVAL AND INSTALLATION ".

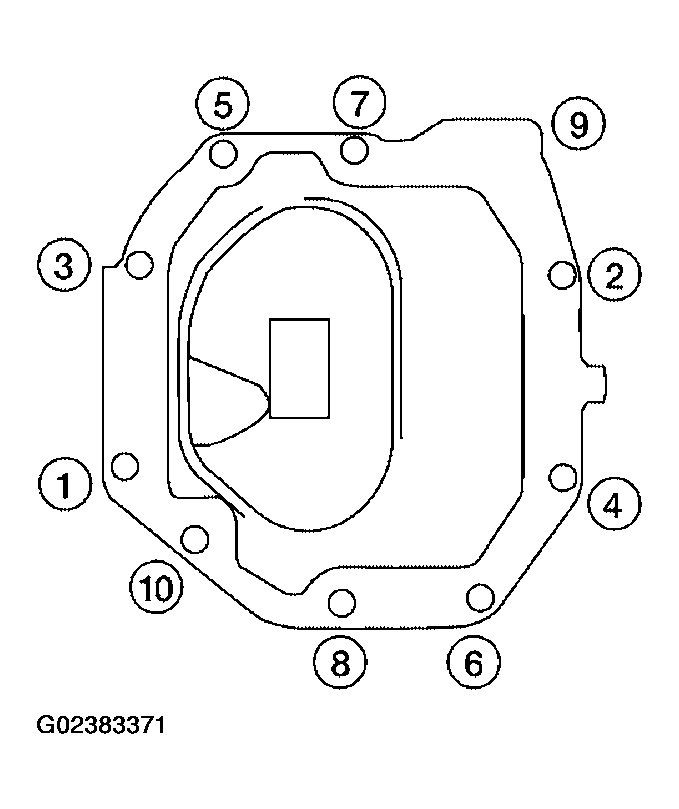

Fig 2: Tightening Rear Cover Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
