Special Service Tools

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

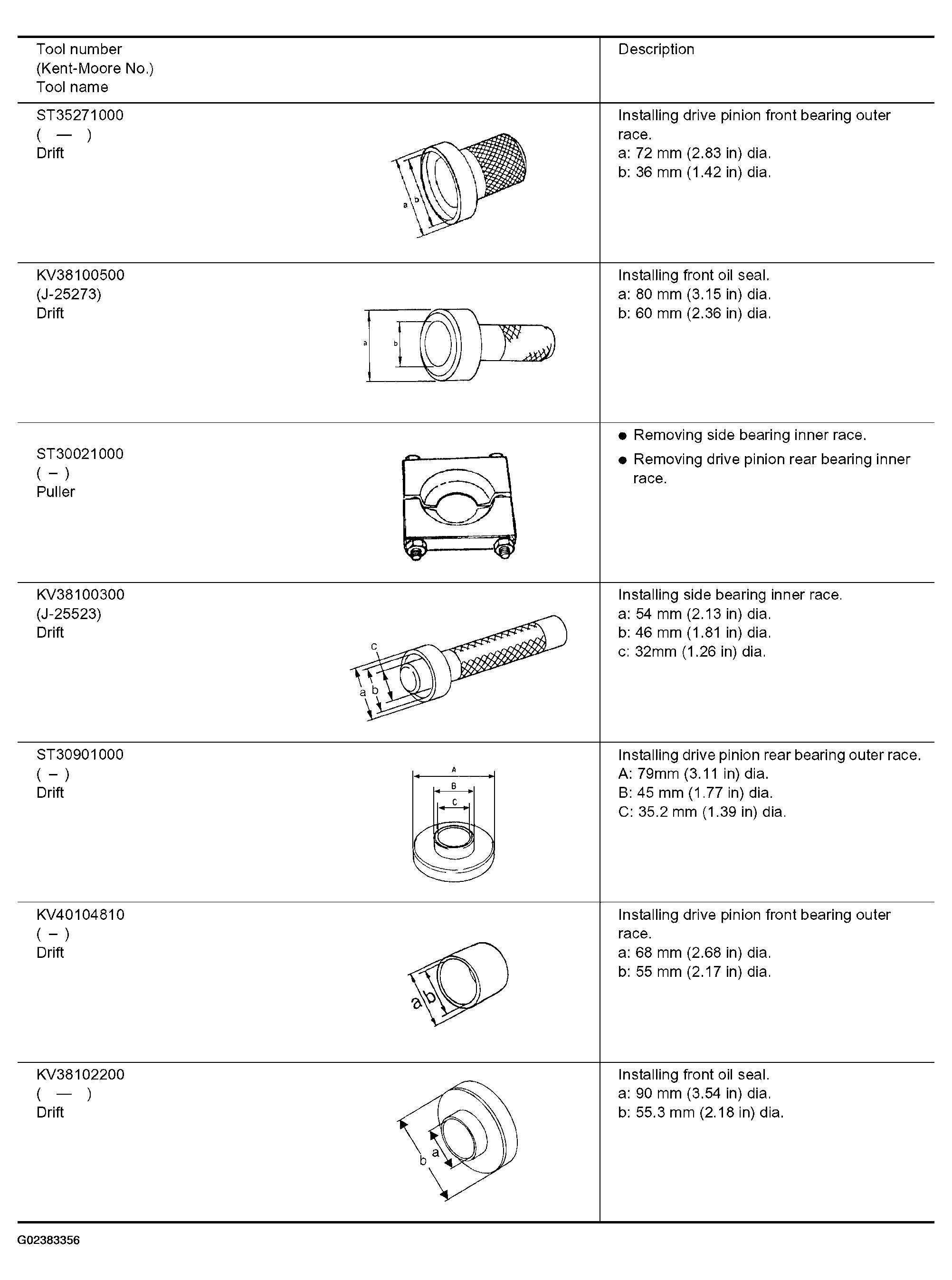

Fig 1: Special Service Tools Specification (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

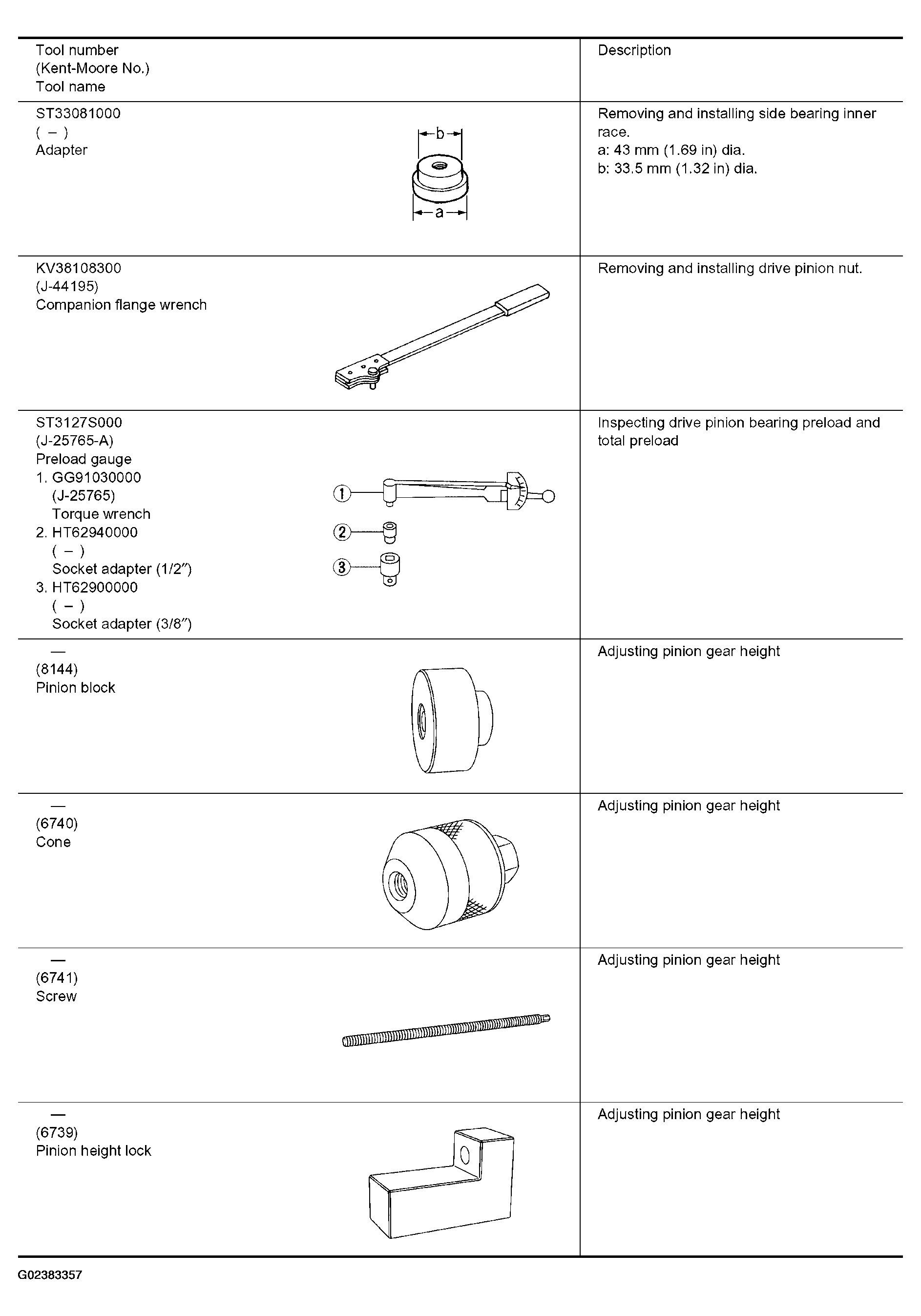

Fig 2: Special Service Tools Specification (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

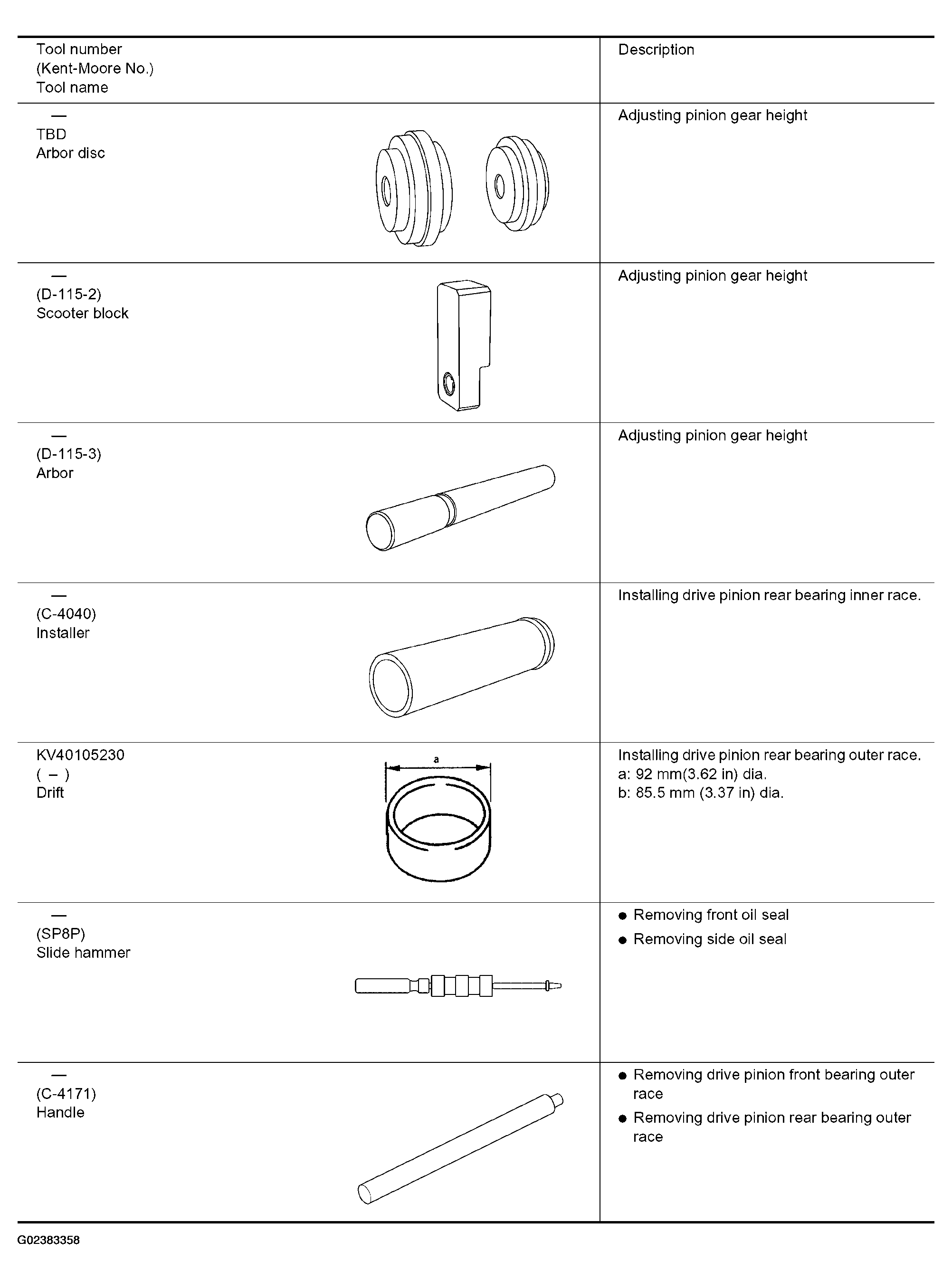

Fig 3: Special Service Tools Specification (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

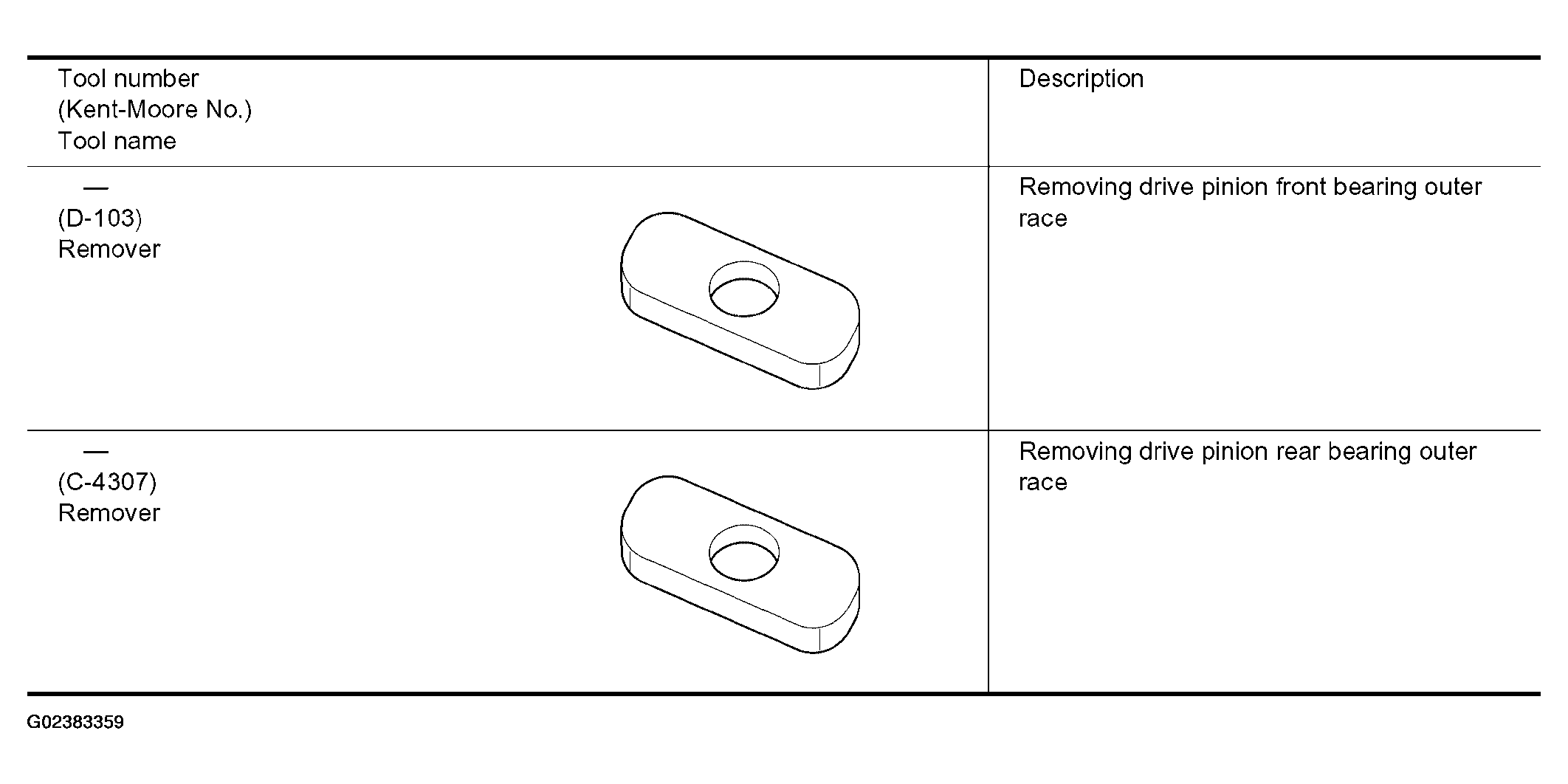

Fig 4: Special Service Tools Specification (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
