Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
    CAUTION: Be careful not to damage spline, sleeve yoke and front oil seal when removing propeller shaft.
  2. Separate LH and RH drive shafts from front final drive. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove front cross member.
  4. Disconnect the vent hose.
  5. Support the front final drive with suitable jack and remove the front final drive bolts. Carefully remove front final drive.

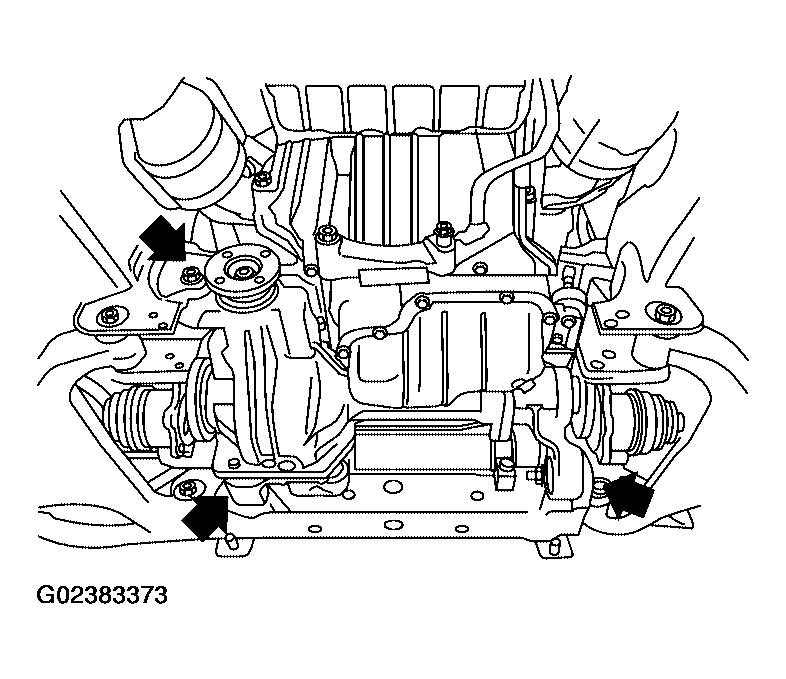

    Fig 1: Identifying Front Final Drive Bolts
    G02383373Courtesy of NISSAN MOTOR CO., U.S.A.
