Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install front final drive assembly.
    1. Front final drive bolts: 182.5 N.m (19 Kg-m, 135 ft-lb)
  2. Connect the vent hose.
  3. Install the front cross member.
  4. Install LH and RH drive shaft. Refer to "REMOVAL AND INSTALLATION ".
  5. Install front propeller shaft. Refer to "REMOVAL AND INSTALLATION ".

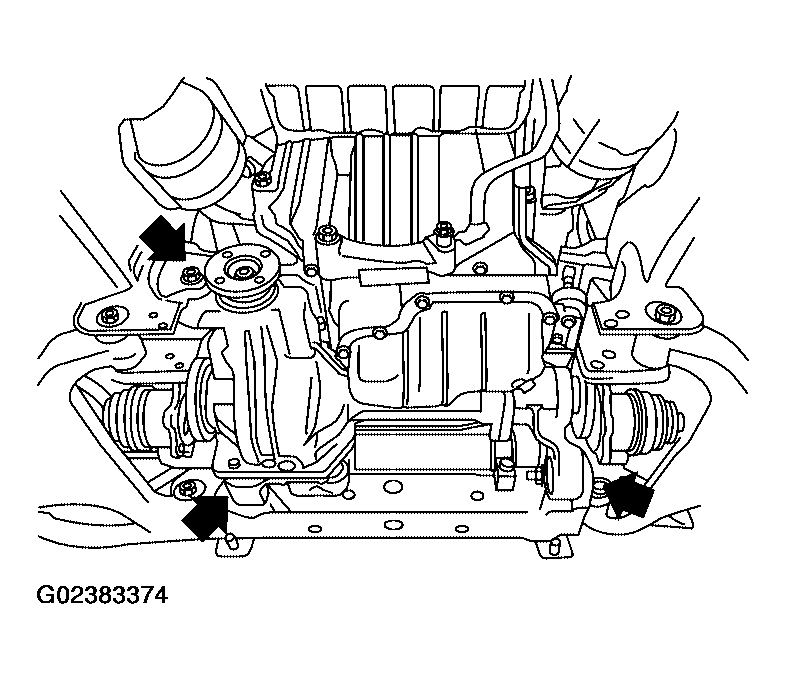

    Fig 1: Identifying Front Final Drive Bolts
    G02383374Courtesy of NISSAN MOTOR CO., U.S.A.
