Removal Of Drive Gear And Differential Case Assembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove differential side shaft with a soft hammer.

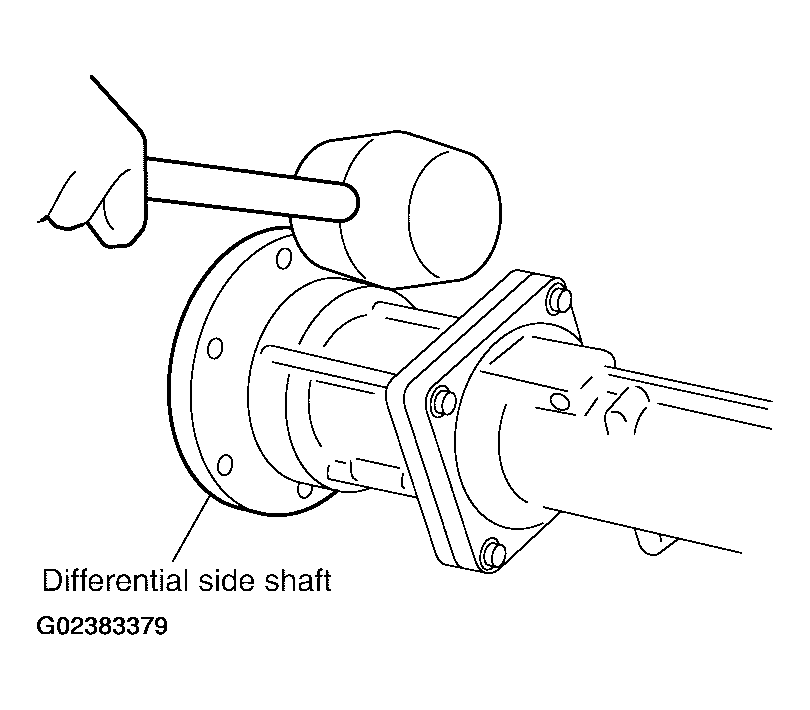

Fig 1: Removing Differential Side Shaft With Soft Hammer
Courtesy of NISSAN MOTOR CO., U.S.A.

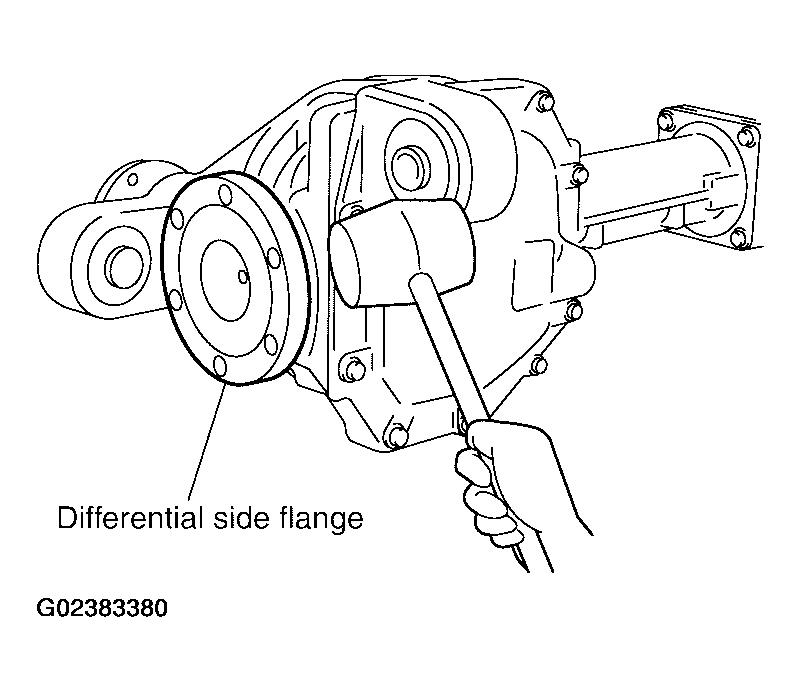

Remove differential side flange with a soft hammer.

Fig 2: Removing Differential Side Flange With Soft Hammer
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove extension tube and O-ring.

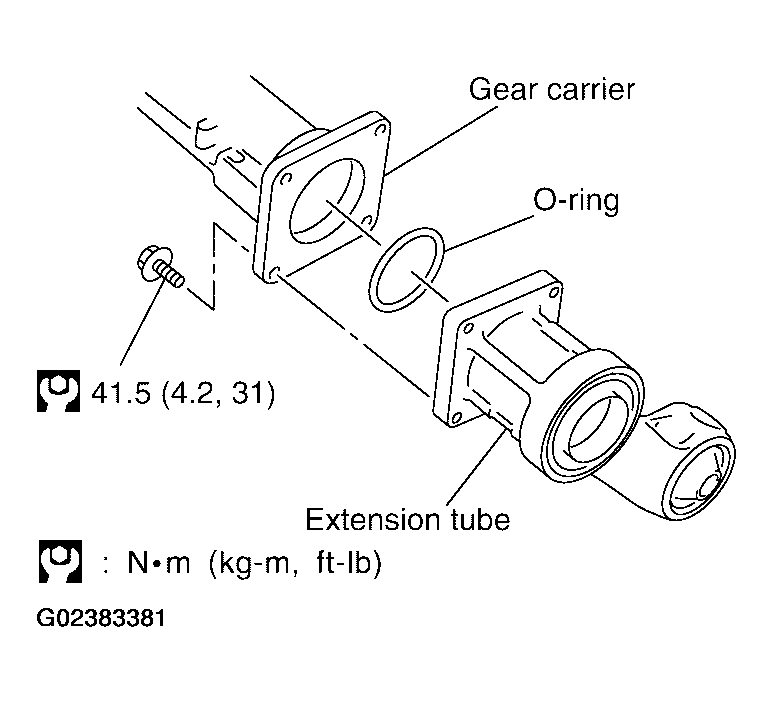

Fig 3: Removing Extension Tube And O-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Place a small hole in seal case, using suitable punch or drill.

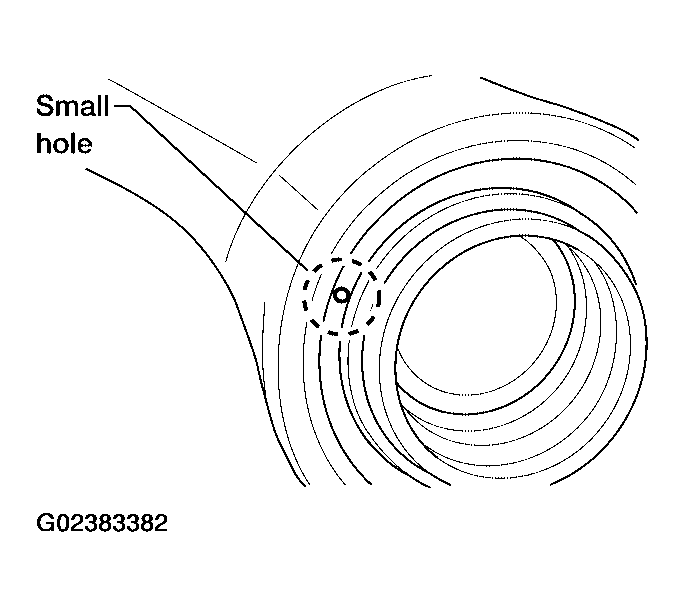

Fig 4: Placing Small Hole In Seal Case, Using Suitable Punch Or Drill
Courtesy of NISSAN MOTOR CO., U.S.A.
Assemble Tool as shown and remove seal.
1. Tool number: - (SP8P)

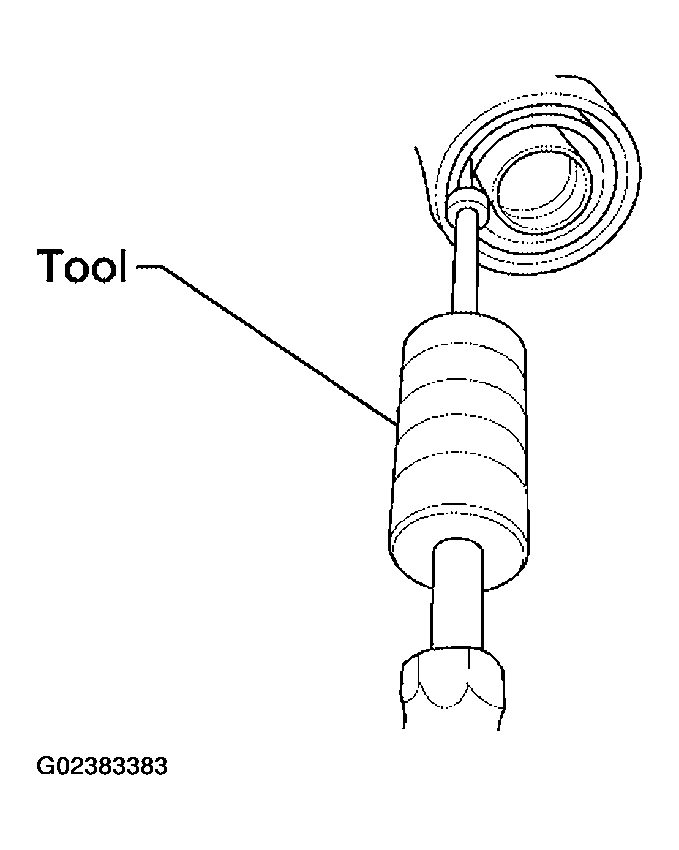

Fig 5: Assembling Tool (SP8P) And Removing Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear cover from gear carrier.

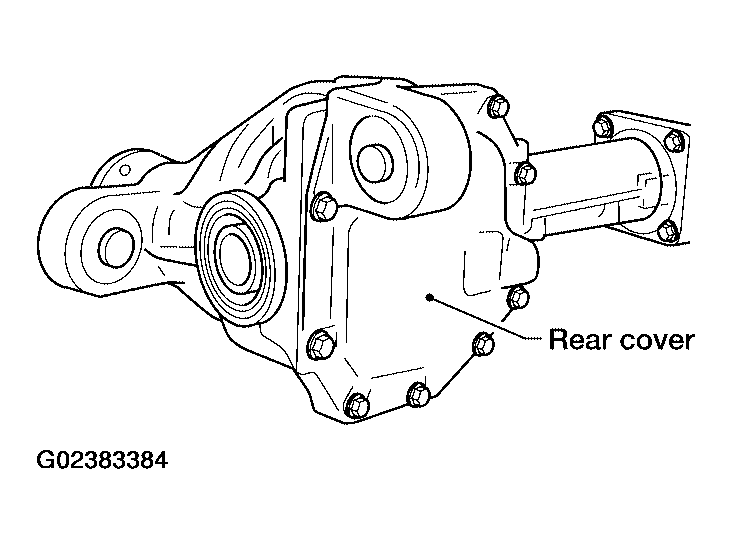

Fig 6: Identifying Rear Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
For proper reinstallation, paint matching mark on one side bearing cap.
NOTE: Bearing caps are line-board for initial assembly. The matching marks are used to replace them in their original positions.

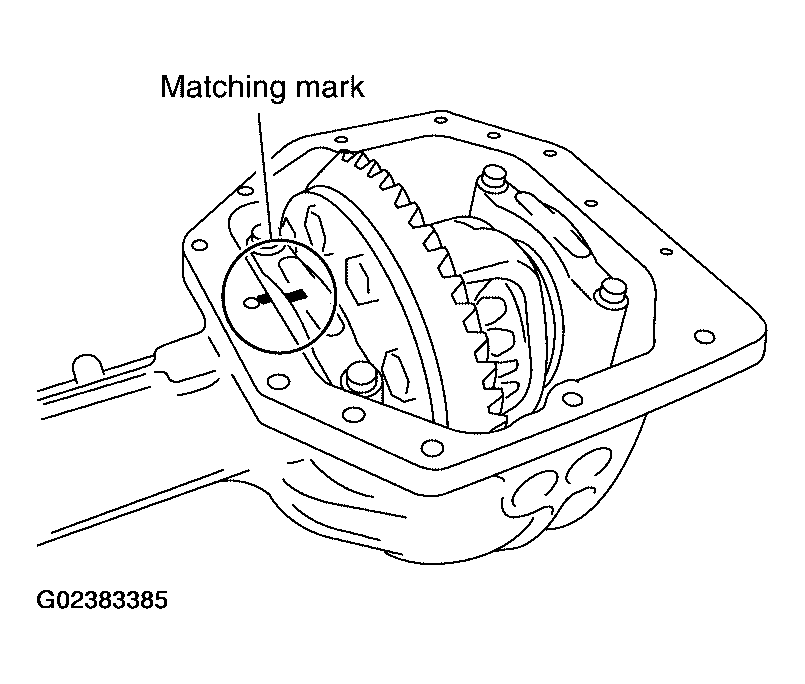

Fig 7: Identifying Matching Mark
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove side bearing caps.

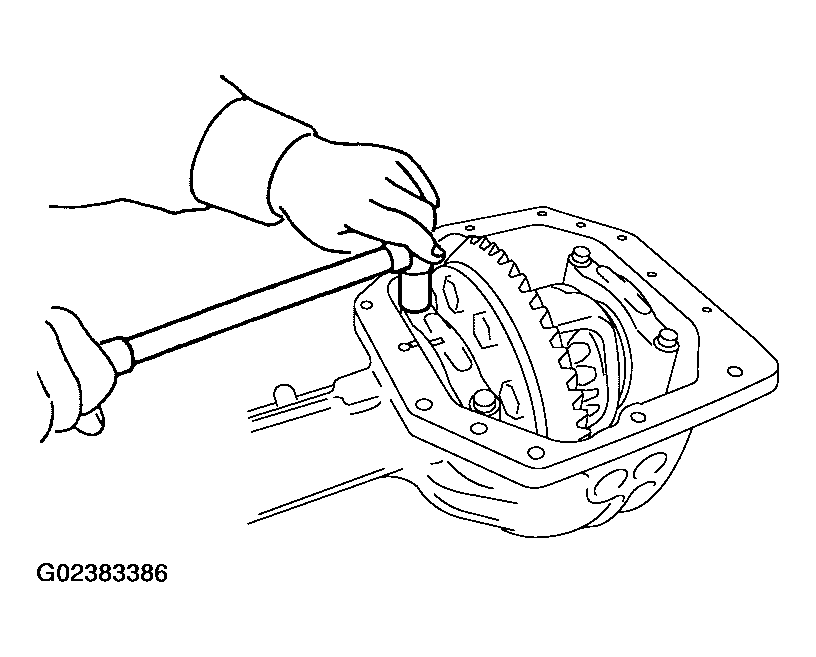

Fig 8: Removing Side Bearing Caps
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove side bearing adjust nuts.

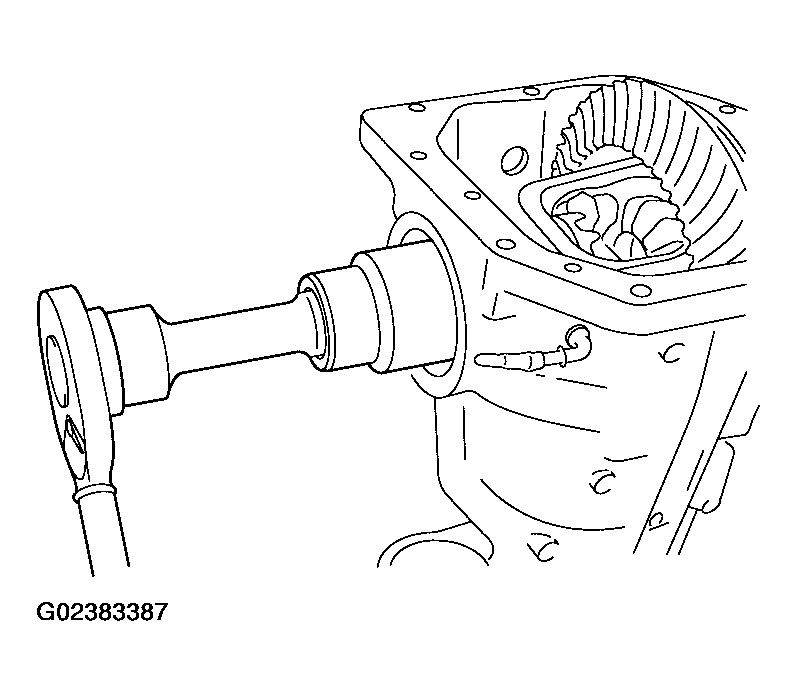

Fig 9: Removing Side Bearing Adjust Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.

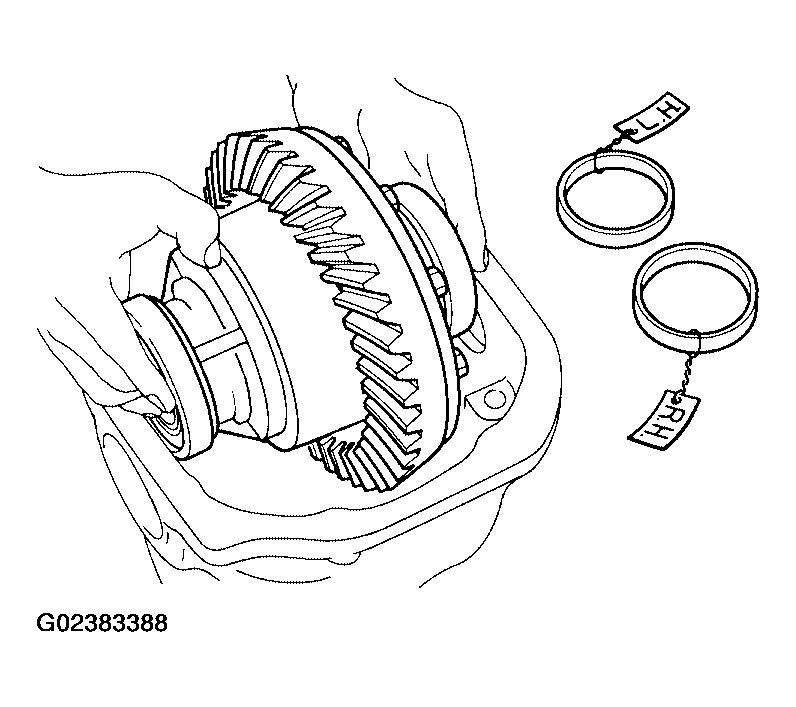

Keep the side bearing outer races together with inner race. Do not mix them up.

Fig 10: Keeping Side Bearing Outer Races Together With Inner Race
Courtesy of NISSAN MOTOR CO., U.S.A.
