Installation Of Drive Pinion Assembly

1. Press-fit rear bearing outer race with Tools.
   1. Tool number A: ST30901000( - )
   2. Tool number B: KV40105230( - )

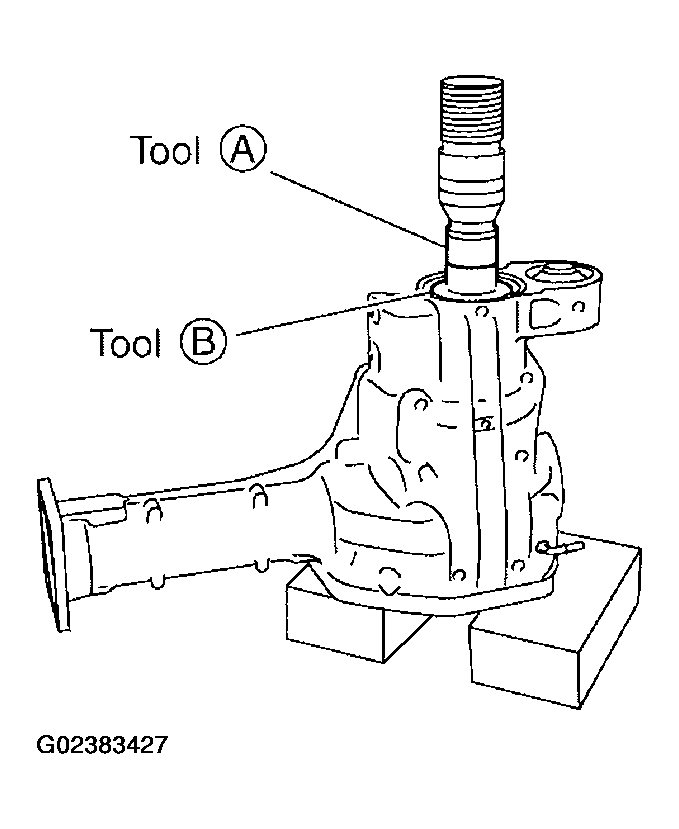

   Fig 1: Identifying Tools "A" And "B"

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Press-fit front bearing outer race with Tools.
   1. Tool number A: ST35271000( - )
   2. Tool number B: KV40104810( - )

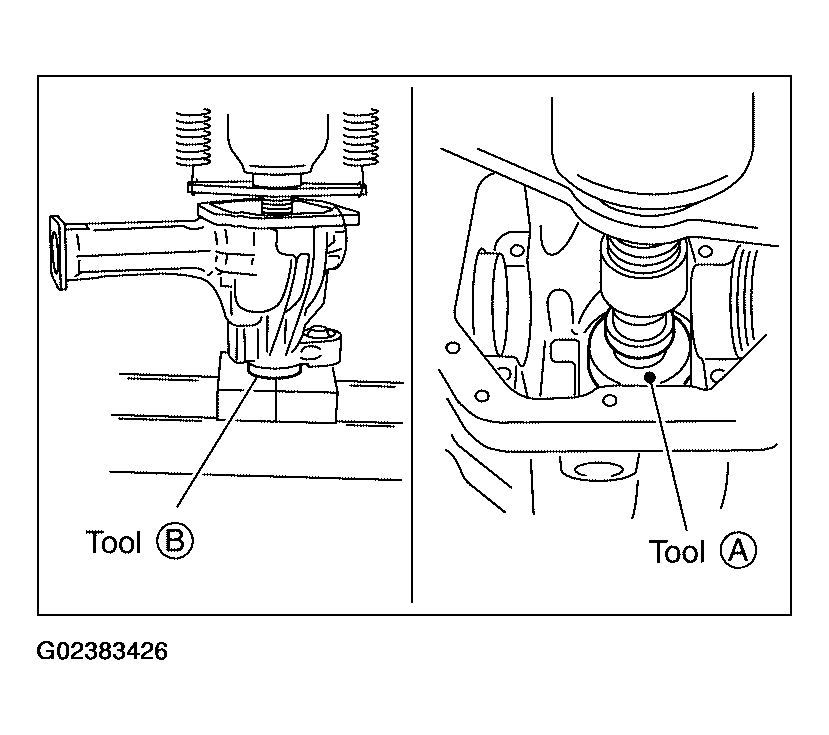

   Fig 2: Identifying Tools "A" And "B"

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Select drive pinion height adjusting washer. Refer to "DRIVE PINION HEIGHT ADJUSTMENT ".
4. Install drive pinion adjusting washer in drive pinion, and press-fit pinion rear bearing inner race in it, using a press and Tool.
   1. Tool number: - (C - 4040)

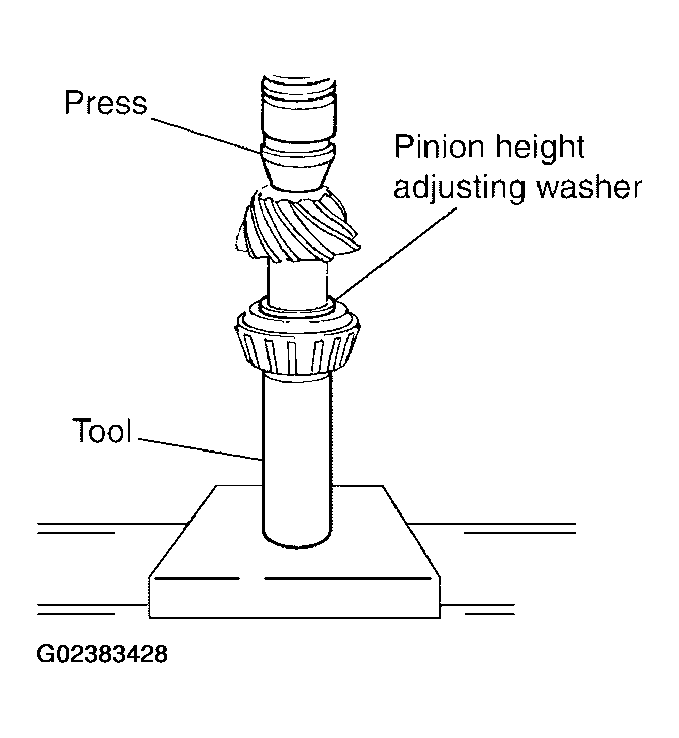

   Fig 3: Press-Fitting Pinion Rear Bearing Inner Race Into Drive Pinion Adjusting Washer, Using Press And Tool (C - 4040)

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Place pinion front bearing inner race in gear carrier.

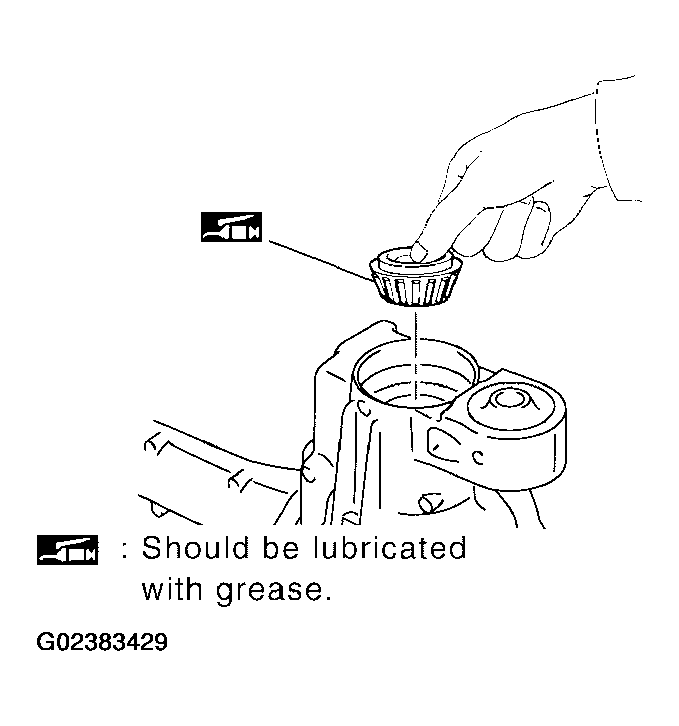

   Fig 4: Placing Pinion Front Bearing Inner In Race Gear Carrier

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Apply multi-purpose grease to cavity at sealing lips of oil seal. Install front oil seal, using Tools.
   1. Tool number A: KV38100500 (J-25273)
   2. Tool number B: KV38102200( - )

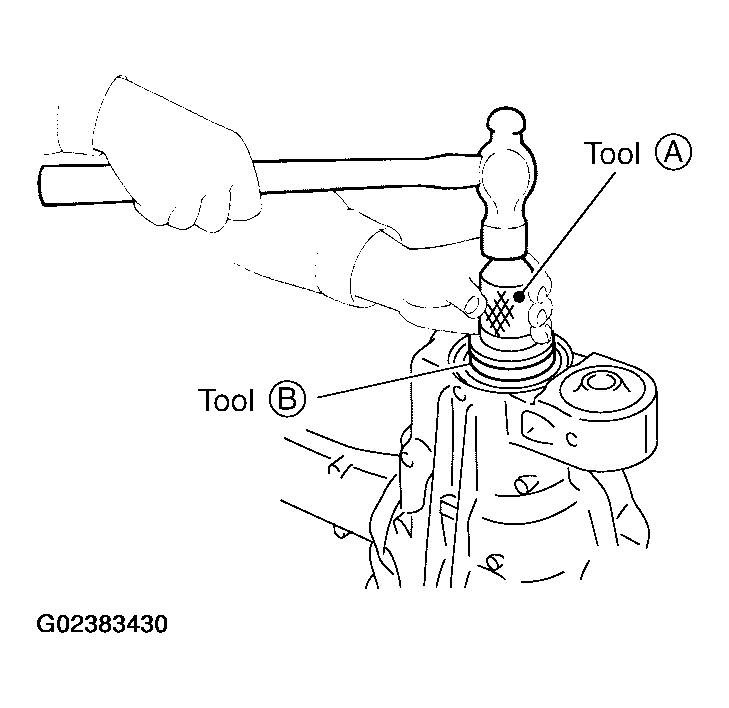

   Fig 5: Installing Front Oil Seal, Using Tools "A" And "B"

   Courtesy of NISSAN MOTOR CO., U.S.A.
7. Place collapsible spacer, drive pinion height adjusting washer and drive pinion in gear carrier.

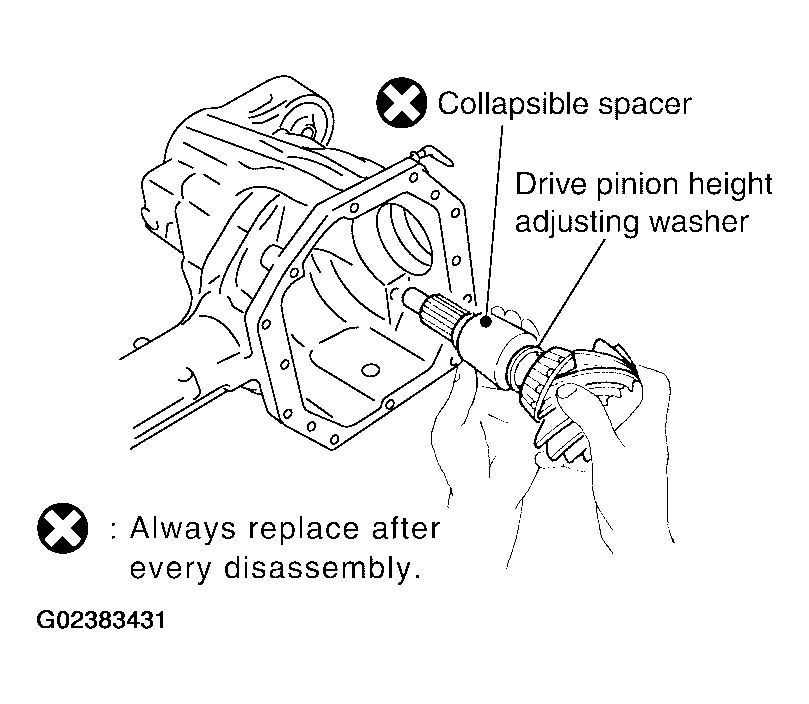

   Fig 6: Placing Collapsible Spacer, Drive Pinion Height Adjusting Washer And Drive Pinion In Gear Carrier

   Courtesy of NISSAN MOTOR CO., U.S.A.

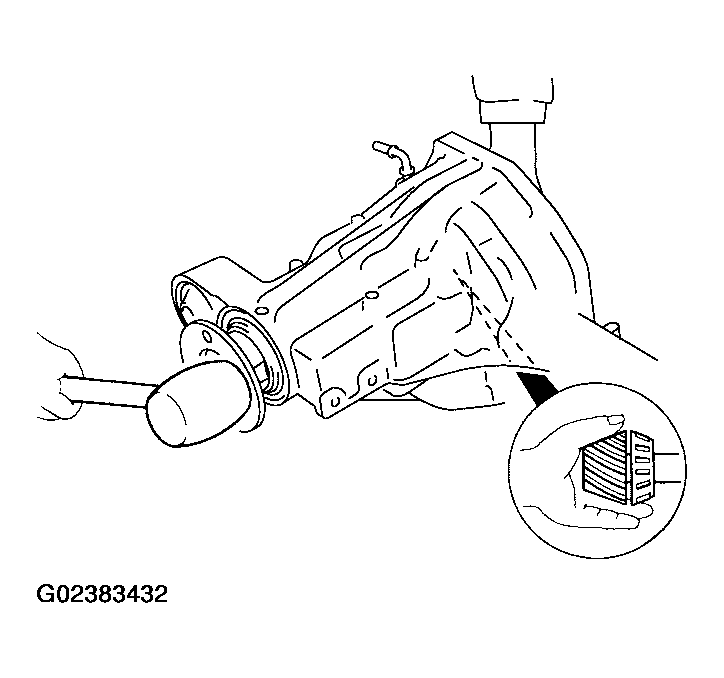

8. Insert companion flange onto drive pinion. Tap the companion flange with a soft hammer until fully seated.
   Fig 7: Tapping Companion Flange With Soft Hammer

   Courtesy of NISSAN MOTOR CO., U.S.A.
9. Tighten pinion nut until total preload is within specification.
   • The threaded portion of drive pinion and pinion nut should be free from oil or grease.
     1. Tool number: KV38108300 (J-44195)

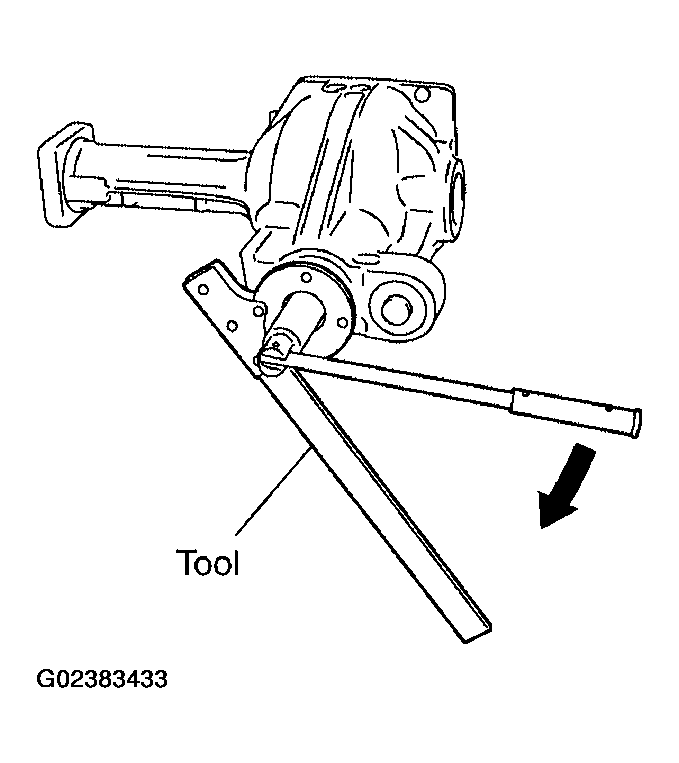

   Fig 8: Tightening Pinion Nut Using Specified Tool

   Courtesy of NISSAN MOTOR CO., U.S.A.
10. Tighten the pinion nut by very small degrees until the specified preload is achieved. When checking the preload, turn the drive pinion in both directions several times to set the bearing rollers.
    1. Tool number: ST3127S000 (J-25765-A)
    2. Pinion bearing preload: 2.3 - 3.4 N.m (24 - 34 Kg-cm, 21 - 30 in-lb)

This procedure will have to be repeated if:

• Maximum preload is achieved before the minimum pinion nut torque is reached.
• Minimum preload is not achieved before maximum pinion nut torque is reached.

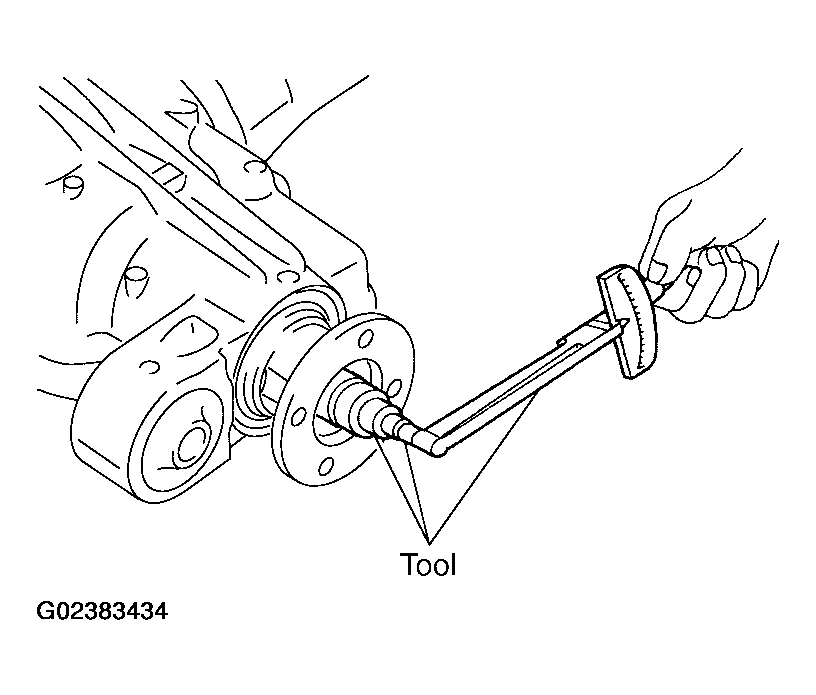

  Fig 9: Tightening Pinion Nut Using Specified Tool

  Courtesy of NISSAN MOTOR CO., U.S.A.
