Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the A/T select lever to the N position and release the parking brake.

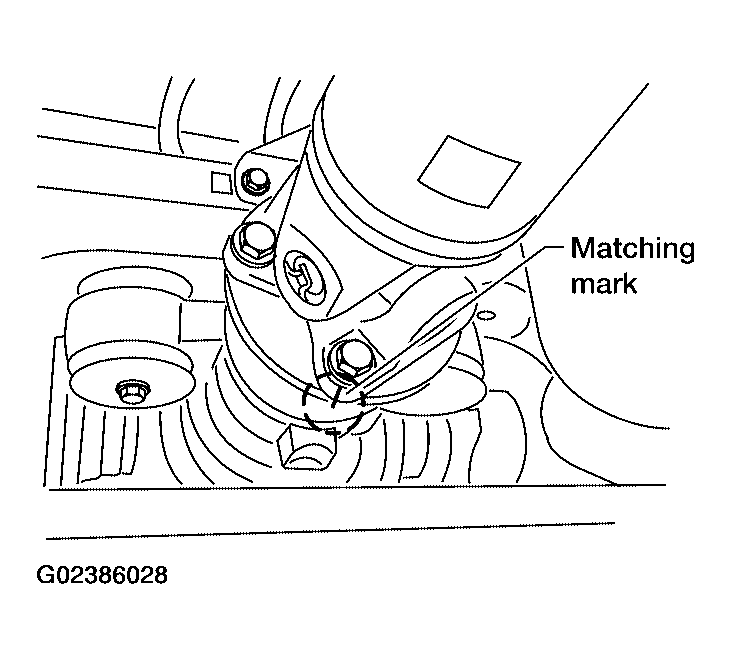

  2. Put matching marks on the rear propeller shaft flange yoke and the companion flange of the rear final drive as shown.
    CAUTION: For matching marks, use paint. Never damage the rear propeller shaft flange yoke or the companion flange.
  3. Remove the bolts, then remove the propeller shaft from the rear final drive and A/T.
    4. Fig 1: Checking Propeller Shaft For Bend And Damage
    G02386028Courtesy of NISSAN MOTOR CO., U.S.A.
