Propeller Shaft Vibration

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If vibration is present at high speed, check propeller shaft run out first, then check mounting between propeller shaft and companion flange.
  1. Measure the run out of the propeller shaft tube at several points by rotating the final drive companion flange with your hands.

    Propeller shaft run out limit: 1.02 mm (0.0402 in) or less

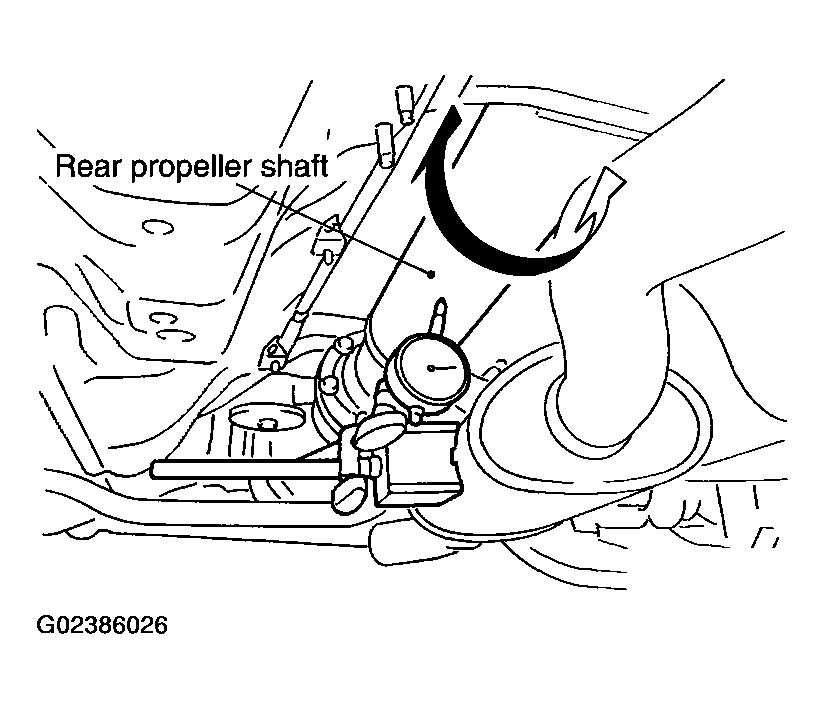

    Fig 1: Measuring Run Out Of Propeller Shaft Tube
    G02386026Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If the run out still exceeds specifications, disconnect the propeller shaft at the final drive companion flange; then rotate the companion flange 90°, 180°, 270° degrees and reconnect propeller shaft.
  3. Check the run out again. If the run out still exceeds specifications, replace the propeller shaft assembly.
  4. After installation, check for vibration by driving vehicle.
