Disassembly and Assembly: Disassembly: Journal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

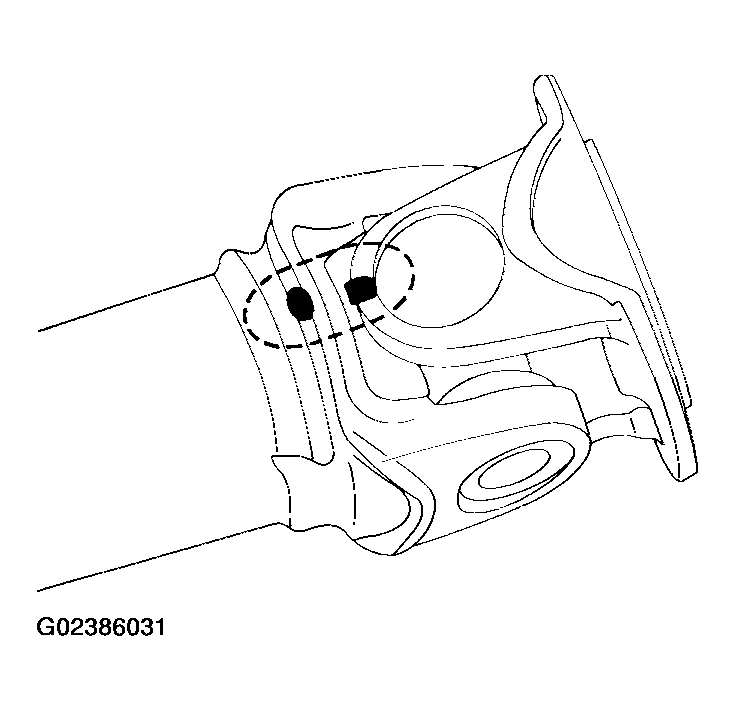

Put matching marks on the rear propeller shaft and flange yoke as shown.
CAUTION: For matching marks use paint. Never damage the rear propeller shaft or flange yoke.

Fig 1: Putting Matching Marks On Rear Propeller Shaft And Flange Yoke
Courtesy of NISSAN MOTOR CO., U.S.A.

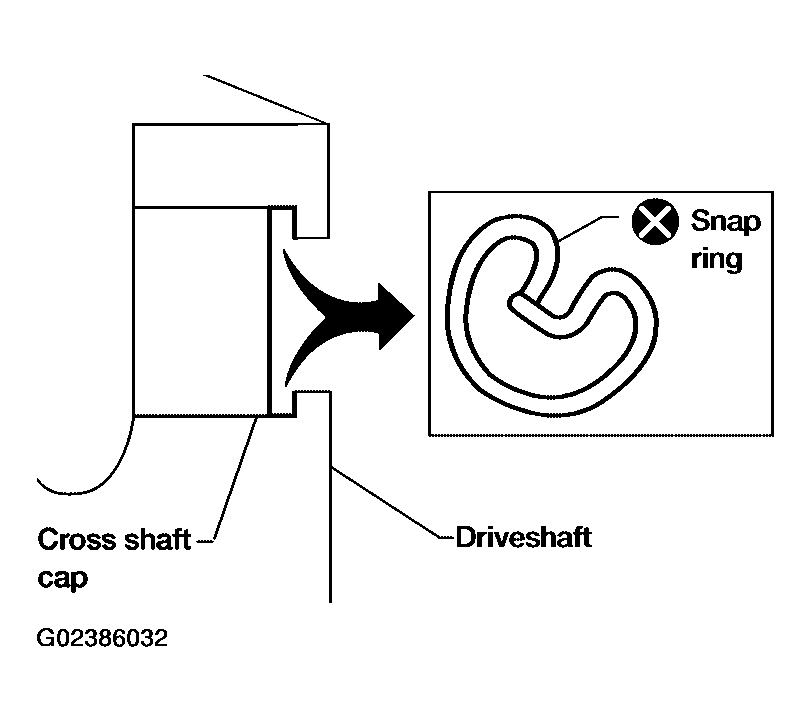

Remove the snap ring.

Fig 2: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

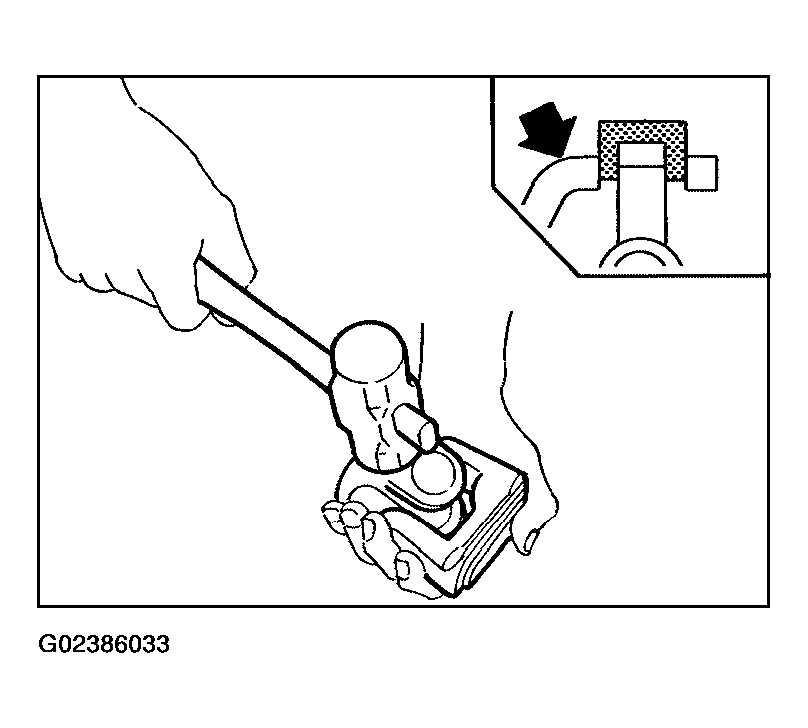

Push out and remove the journal bearing by lightly tapping the yoke with a hammer, taking care not to damage the journal or yoke hole.

Fig 3: Removing Journal Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

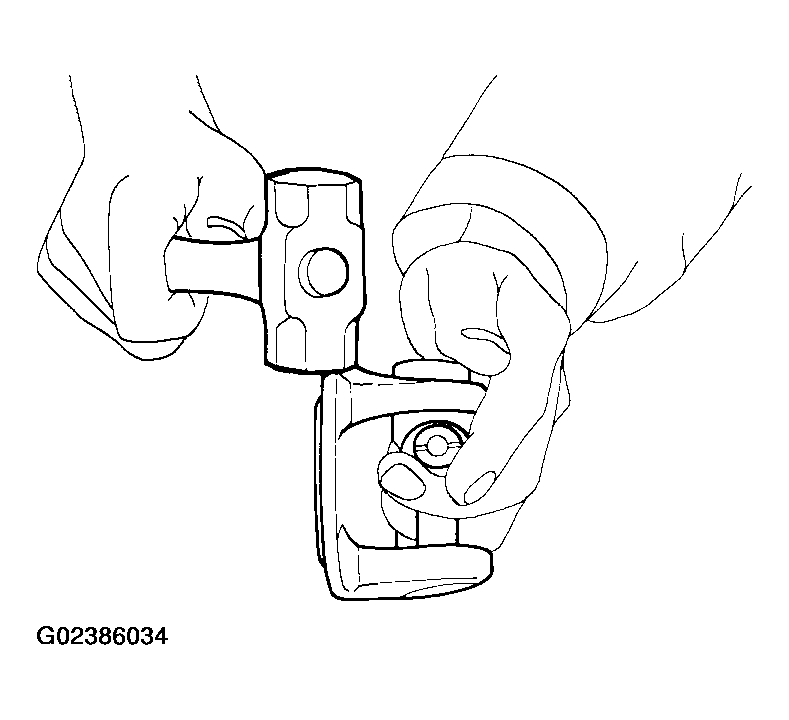

Remove the bearing at the opposite side of above operation.
NOTE: Put marks on the disassembled parts so that they can be reinstalled in their original positions from which they were removed.

Fig 4: Removing Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
