Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Put matching marks on the front propeller shaft flange yoke and the companion flange of the front final drive as shown.
    CAUTION: For matching marks, use paint. Never damage the flange yoke and companion flange of the front final drive.
  2. Remove the bolts and then remove the front propeller shaft from the front final drive and transfer.

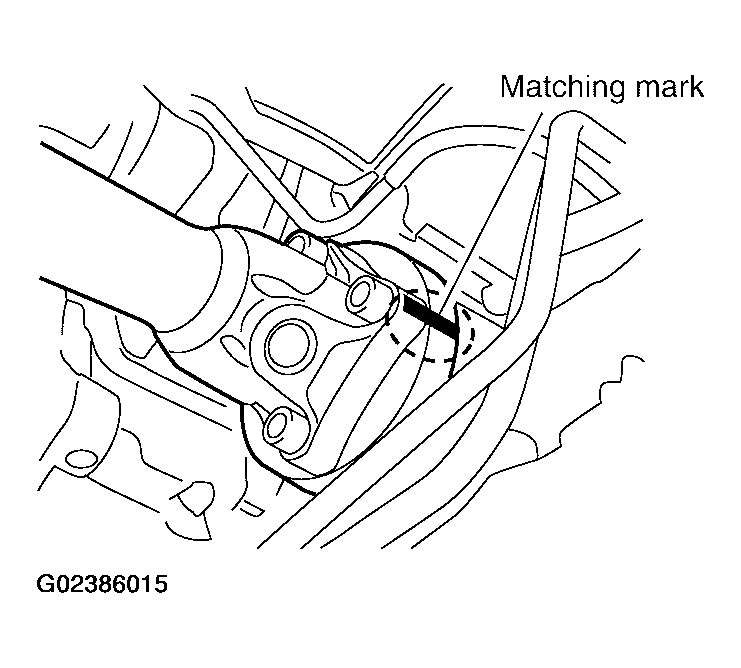

    Fig 1: Putting Matching Marks On Front Propeller Shaft Flange
    G02386015Courtesy of NISSAN MOTOR CO., U.S.A.
