Disassembly and Assembly: Assembly: Journal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the journal bearings. Apply multipurpose grease on the bearing inner surface.
NOTE: During assembly, use caution so that the needle bearings do not fall down.

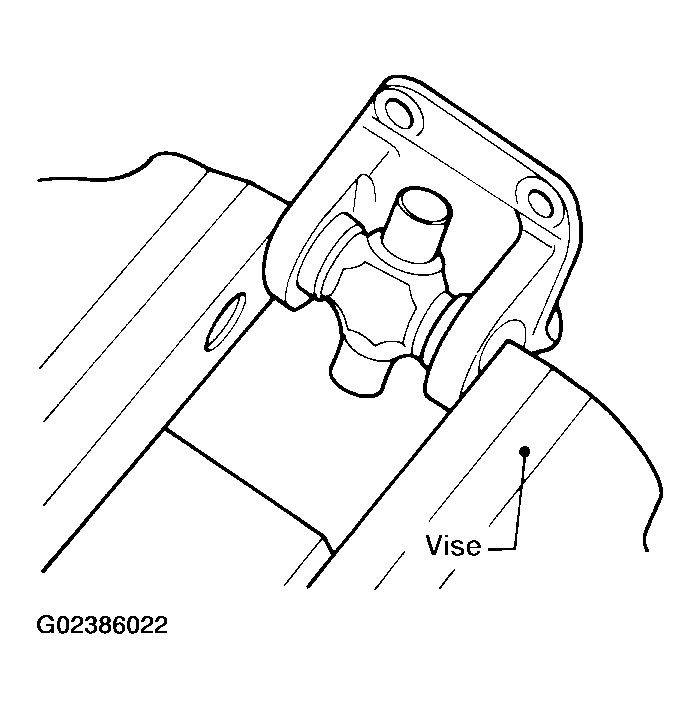

Fig 1: Assembling Journal Bearings
Courtesy of NISSAN MOTOR CO., U.S.A.

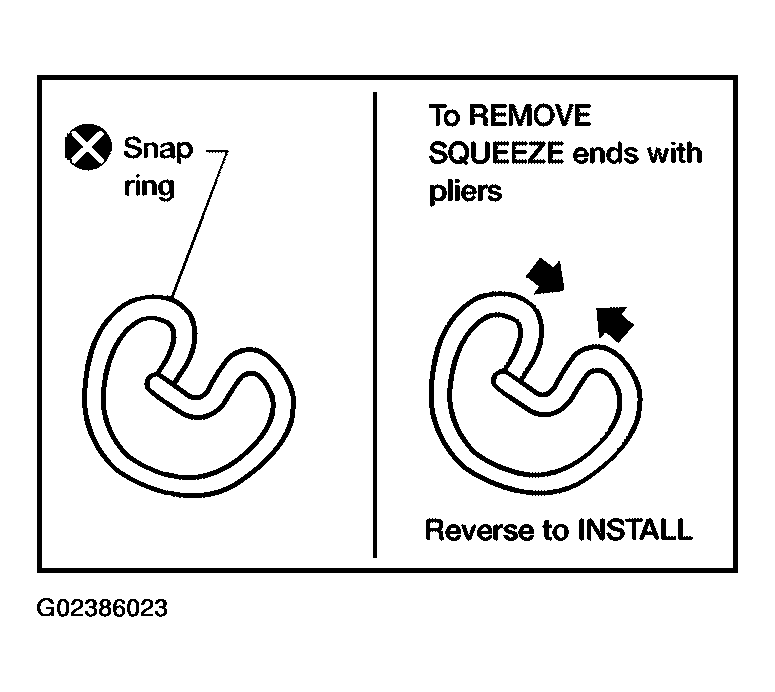

Select snap rings that will provide the specified play in an axial direction of the journal, and install them. Refer to "SNAP RING ".
NOTE: Select snap rings with a difference in thickness at both sides within 0.02 mm (0.0008 in).

Fig 2: Selecting Snap Rings
Courtesy of NISSAN MOTOR CO., U.S.A.

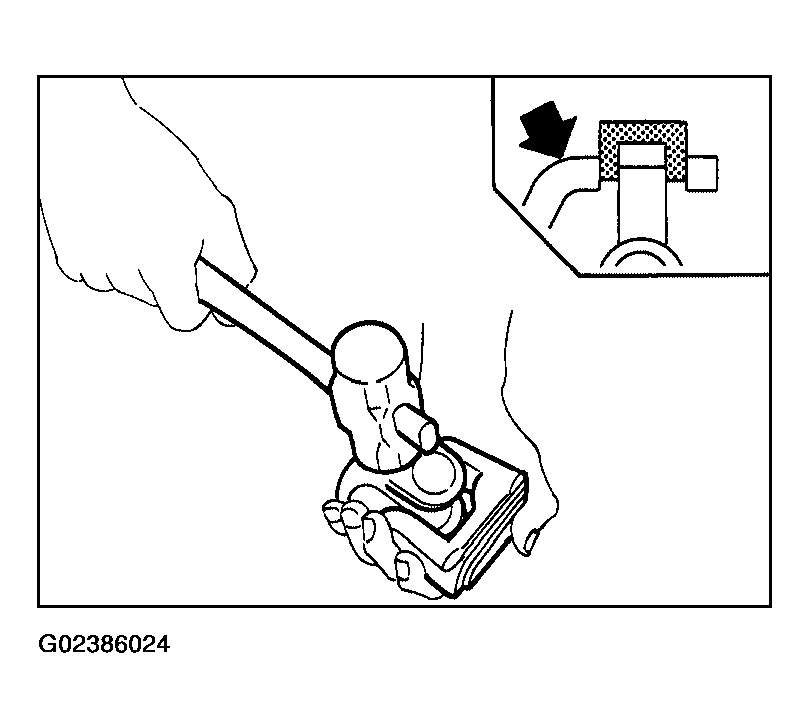

Adjust the thrust clearance between the bearing and snap ring to zero by tapping the yoke.

Fig 3: Adjusting Thrust Clearance Between Bearing And Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

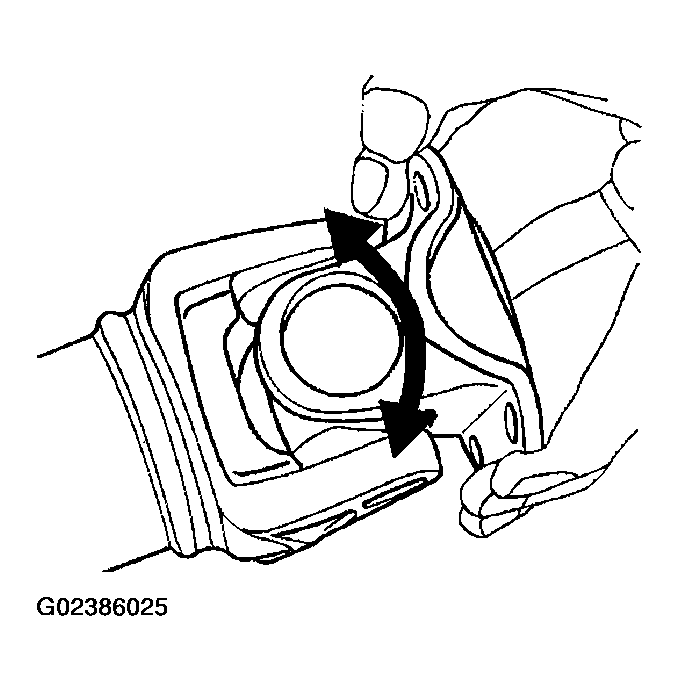

Make sure that the journal moves smoothly and is below the joint flex effort specification.
Joint flex effort: 1.96 N-m (0.20 kg-m, 17 in) or less

Fig 4: Moving Joint Flex
Courtesy of NISSAN MOTOR CO., U.S.A.
