Trouble Diagnosis Chart for Symptoms

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

If 4WD warning lamp turns ON, perform self-diagnosis. Refer to "SELF-DIAGNOSTIC PROCEDURE ".

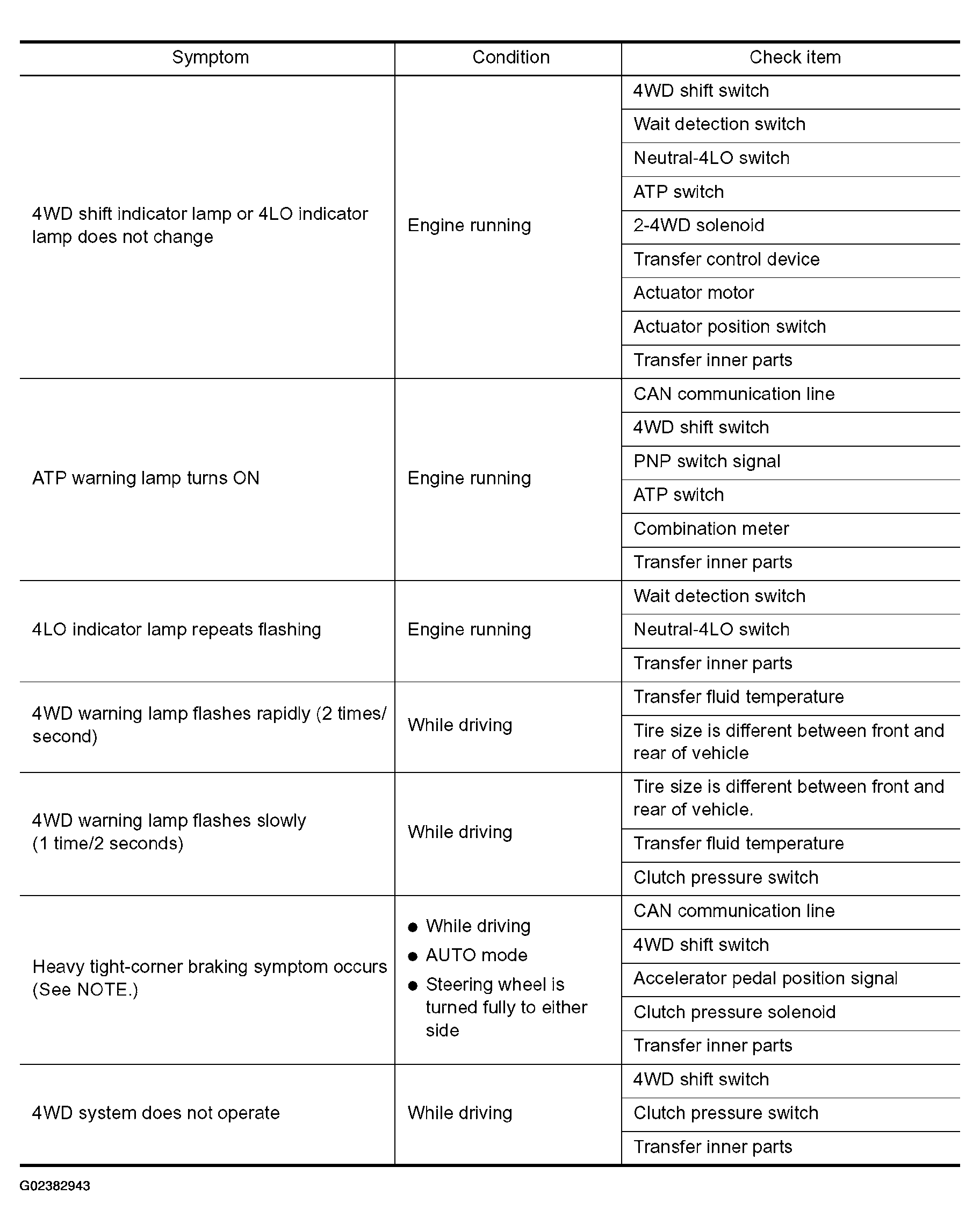

Fig 1: Trouble Diagnosis Chart For Symptoms (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

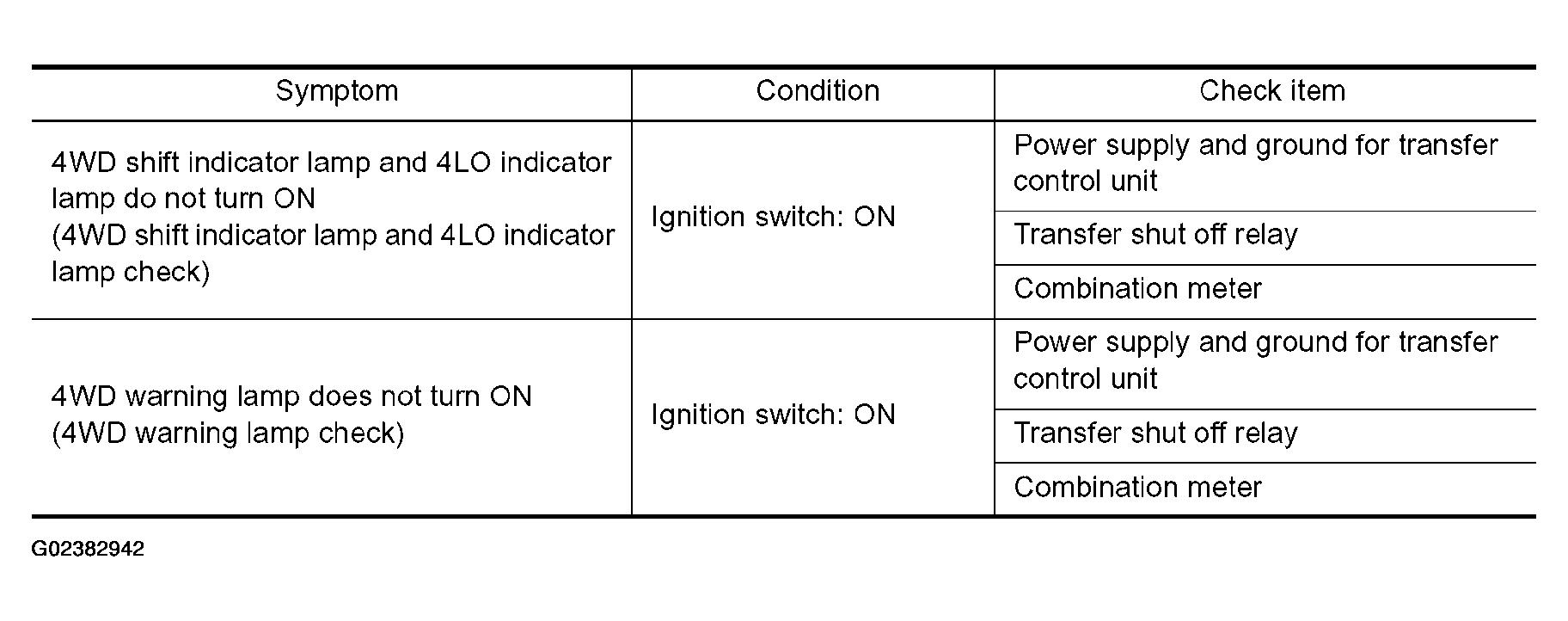

Fig 2: Trouble Diagnosis Chart For Symptoms (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Light tight-corner braking symptom may occur depending on driving conditions in AUTO mode. This is not a malfunction.
Heavy tight-corner braking symptom occurs when vehicle is driven in the following conditions: 4WD shift switch is "4H" or "4LO", steering wheel is turned fully to either side.
