Judgement Self-diagnosis

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

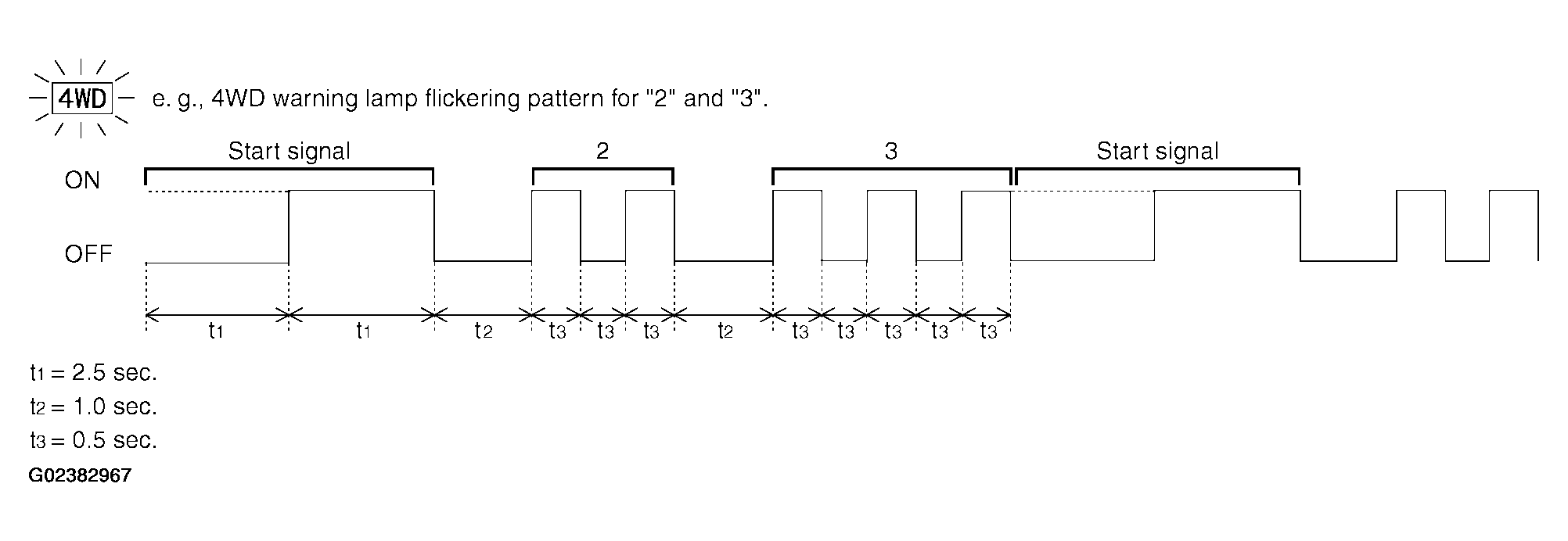

When a malfunction is detected, the malfunction route is indicated by flickering of the 4WD warning lamp.

Fig 1: Judgement Self-Diagnosis

Courtesy of NISSAN MOTOR CO., U.S.A.

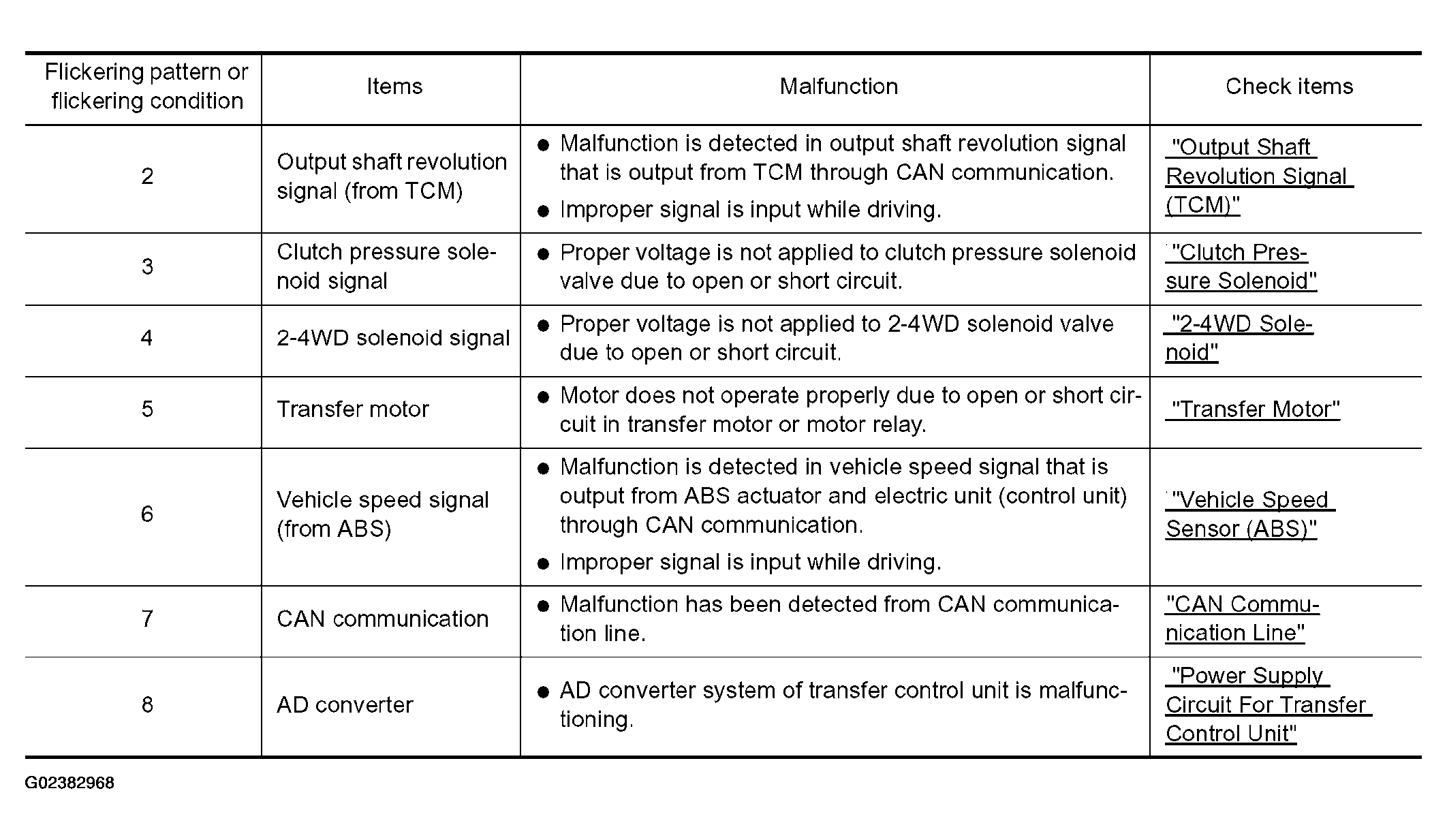

Fig 2: Flickering Pattern Or Flickering Condition Reference (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

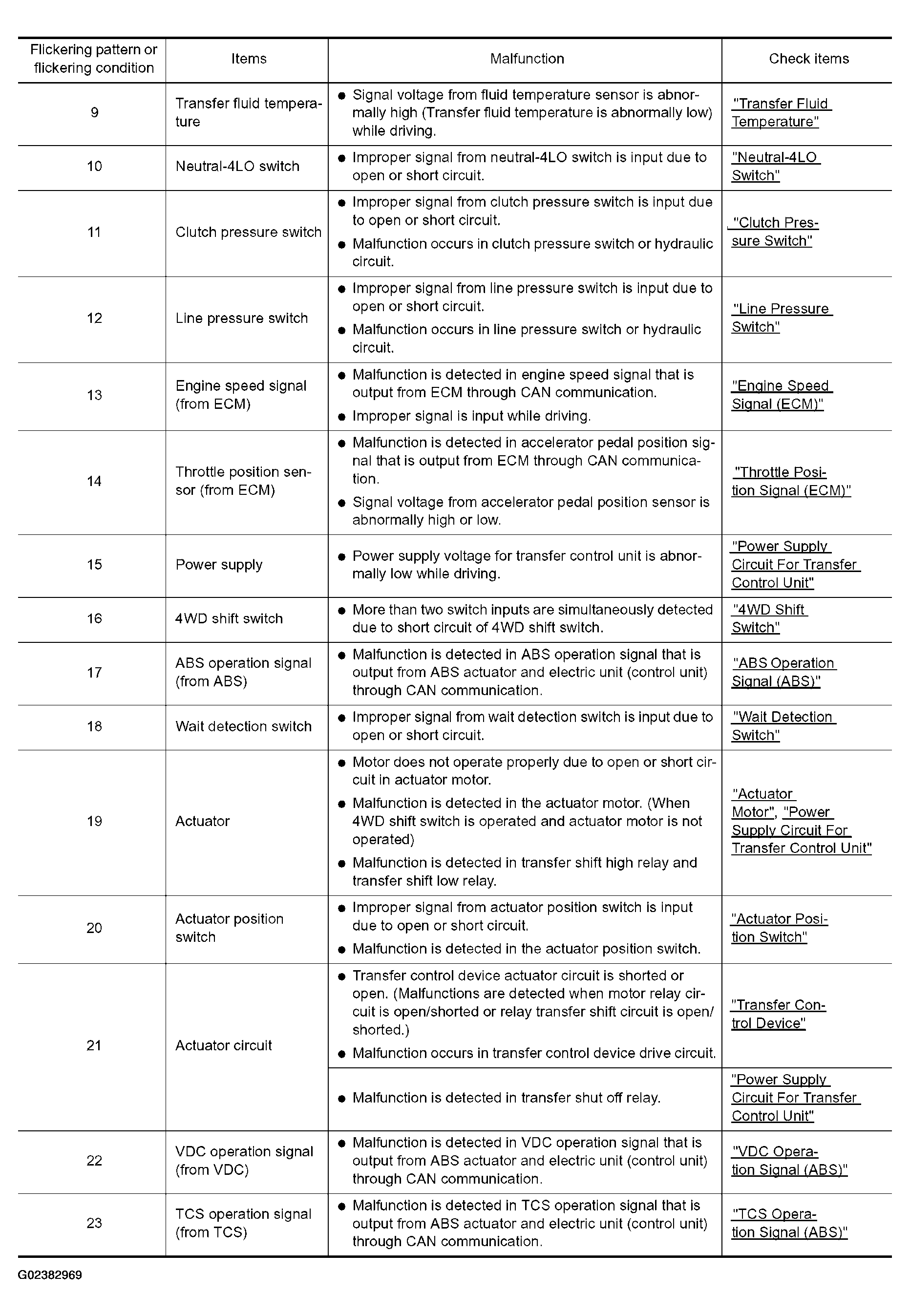

Fig 3: Flickering Pattern Or Flickering Condition Reference (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

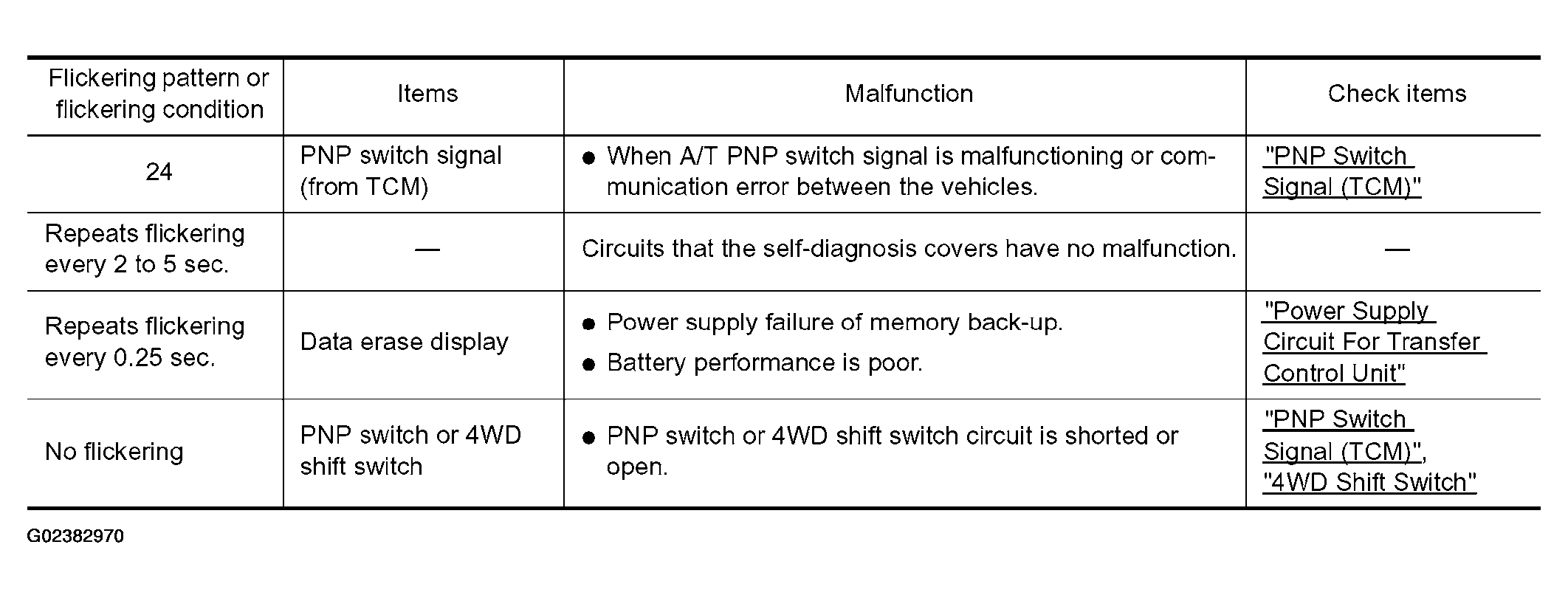

Fig 4: Flickering Pattern Or Flickering Condition Reference (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

If "CAN communication" is displayed with other DTCs, first perform the trouble diagnosis for CAN communication line.
If "ABS operation signal", "VDC operation signal" or "TCS operation signal" is displayed, first perform the trouble diagnosis for ABS system.
If "Output shaft revolution signal" is displayed, first perform the trouble diagnosis for A/T system.

NOTE:

If "actuator position switch" or "actuator circuit" is displayed, first erase self-diagnostic results. ("Actuator position switch" or "actuator circuit" may be displayed after installing transfer control unit or transfer assembly.)
If "clutch pressure switch" or "line pressure switch" is displayed only while driving in reverse, check the continuity of "R" position on A/T PNP switch. When there is nothing wrong with the electrical system, check the hydraulic system.
