Clutch Force Release Limit Adjustment

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Current CLUTCH FORCE RELEASE LIMIT value "0.3 kgm" appears under "CONDITION SETTING" on CONSULT-II display.
    1. 1.2 kg-m: Tight corner braking symptom is alleviated. However, vibration may occur when accelerating on a low mue road (icy road, etc.)
    2. 0.3 kg-m: Initial set value.
    3. 0.2 kg-m: Do not set to this value because the tight corner braking symptom will get worse.

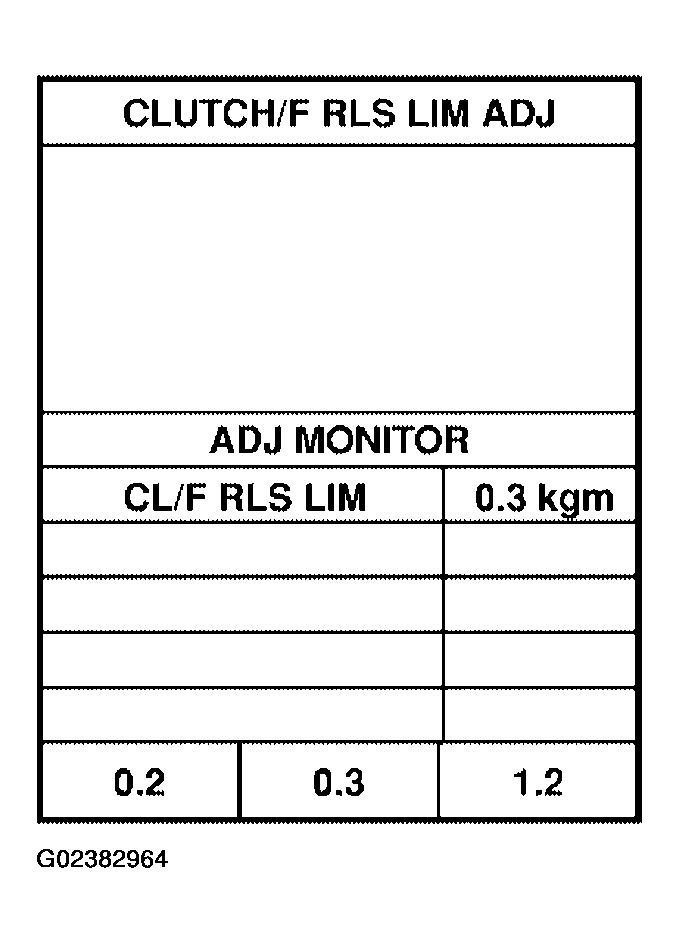

    Fig 1: Identifying "CLUTCH FORCE RELEASE LIMIT" Value "0.3 Kgm"
    G02382964Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "1.2" on the display.
  3. Display changes to "NOW ADJUSTING" in a short time.

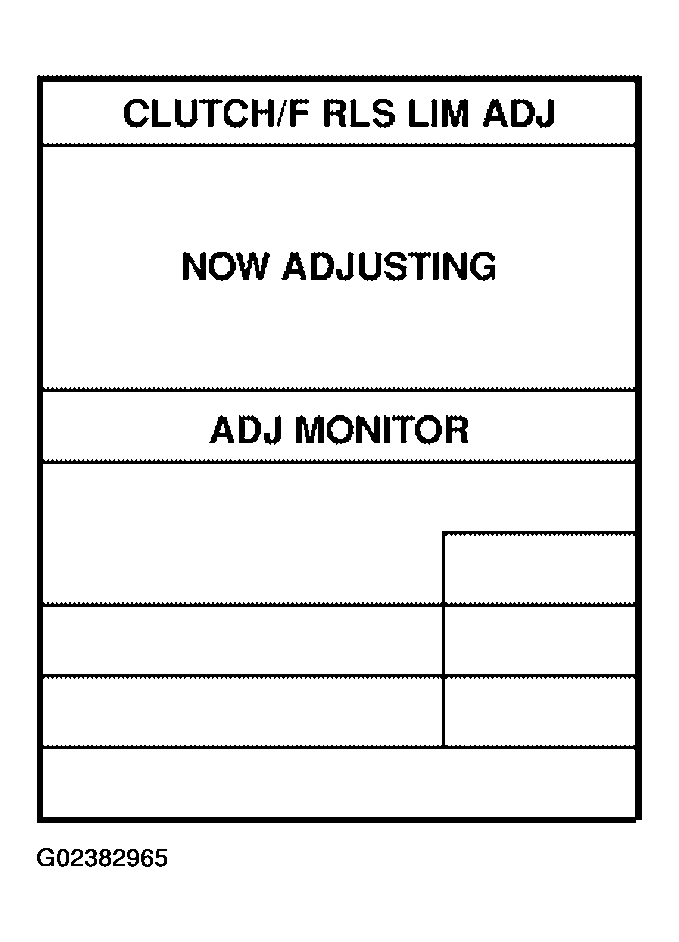

    Fig 2: Identifying "NOW ADJUSTING"
    G02382965Courtesy of NISSAN MOTOR CO., U.S.A.
  4. When clutch force release limit value is set to "1.2 kgm", current value "0.3 kgm" shown on display will be replaced by "1.2 kgm" and "ADJUSTMENT COMPLETE" will appear at the same time. Clutch force release limit value setting is now complete.

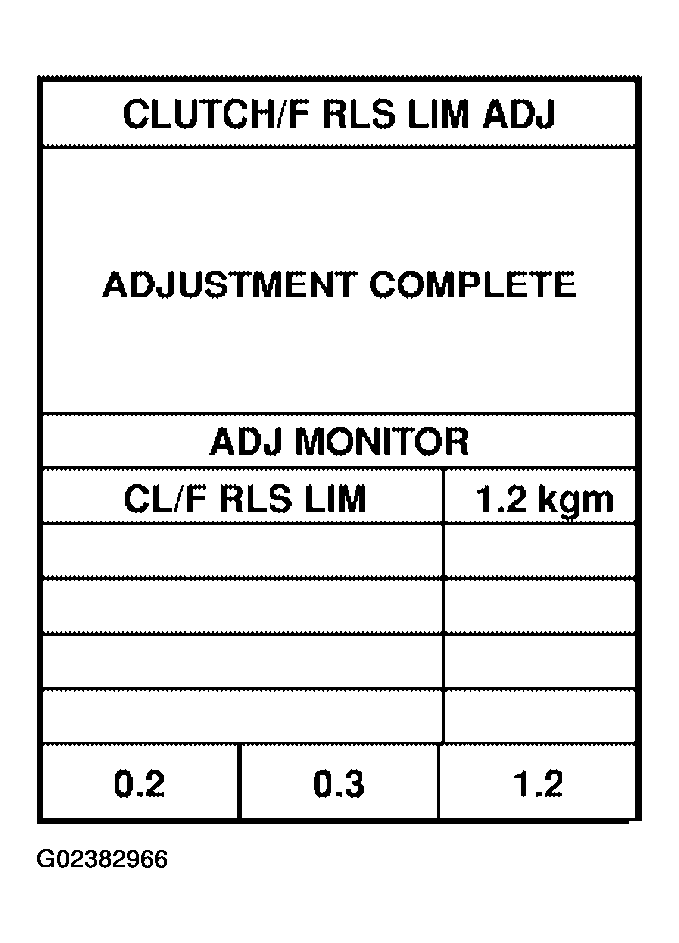

    Fig 3: Identifying "ADJUSTMENT COMPLETE"
    G02382966Courtesy of NISSAN MOTOR CO., U.S.A.
