CONSULT-II Function (ALL MODE AWD/4WD): Function

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

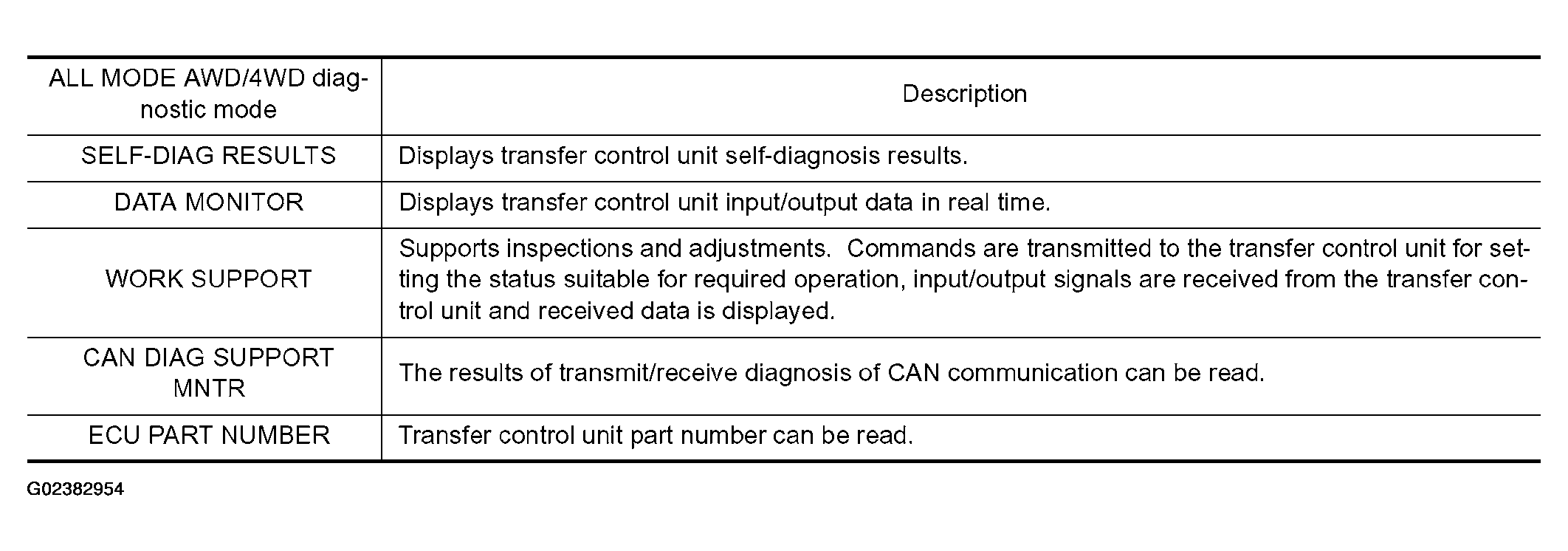

Fig 1: CONSULT-II Function (All Mode AWD/4WD) - Diagnostic Mode Description
G02382954Courtesy of NISSAN MOTOR CO., U.S.A.
