Component Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF". (Stay for at least 5 seconds.)
Disconnect transfer terminal cord assembly harness connector.

Check resistance between transfer terminal cord assembly harness connector F56 terminals 2 and 3.

COMPONENT INSPECTION - TEMPERATURE & RESISTANCE

Temperature °C (°F)	Resistance (Approx.)
20 (68)	2.5 kΩ
80 (176)	0.3 kΩ

If NG, replace the transfer fluid temperature sensor. Refer to "LOCATION OF ELECTRICAL PARTS ".

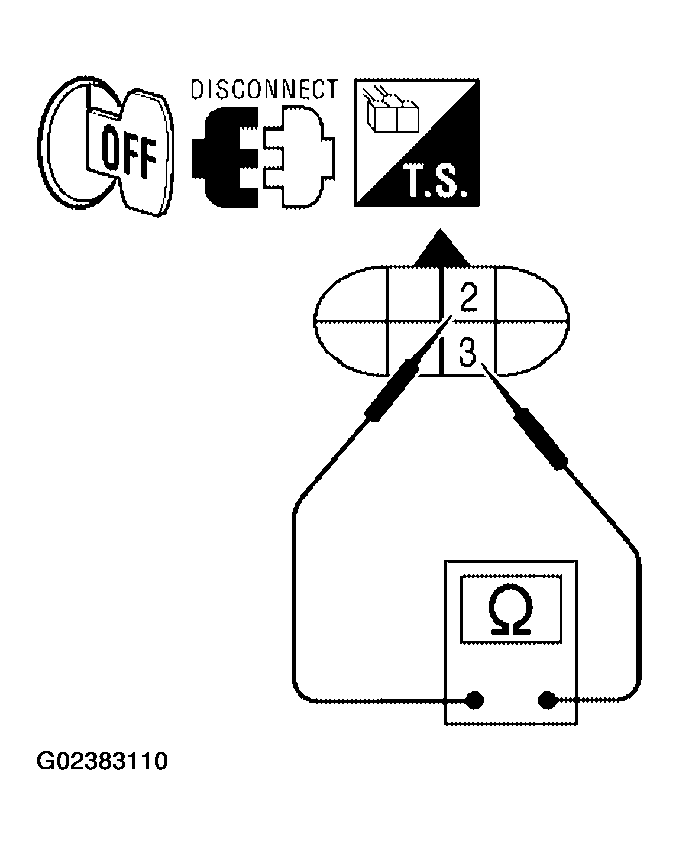

Fig 1: Checking Resistance Between Transfer Terminal Cord Assembly Harness Connector F56 Terminals 2 And 3
Courtesy of NISSAN MOTOR CO., U.S.A.
