Transfer Dropping Resistor

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
  2. Disconnect transfer dropping resistor harness connector.
  3. Check resistance between transfer dropping resistor terminals 1 and 2.
    1. 1 - 2: Approx. 11.2 - 12.8 Ω
  4. If NG, replace transfer dropping resistor. Refer to "LOCATION OF ELECTRICAL PARTS ".

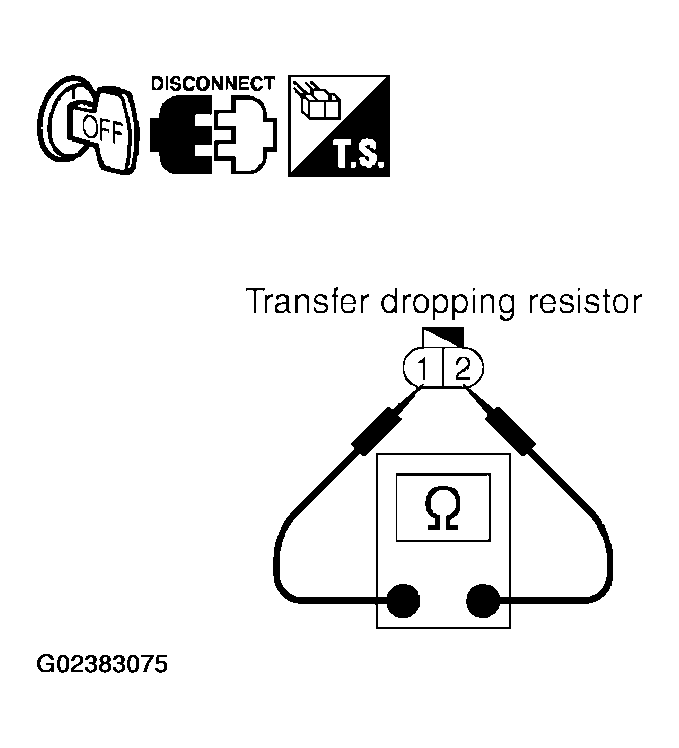

    Fig 1: Checking Resistance Between Transfer Dropping Resistor Terminals 1 And 2
    G02383075Courtesy of NISSAN MOTOR CO., U.S.A.
