Component Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transfer control device. Refer to "REMOVAL AND INSTALLATION ".
  2. Check operation by applying battery voltage to transfer control device (actuator motor) terminals 21 and 24.
    CAUTION:
    • Do not operate actuator motor for more than 1 second.
    • Change the actuator motor position to "HIGH" when installing.
    • Be careful not to overheat the harness.

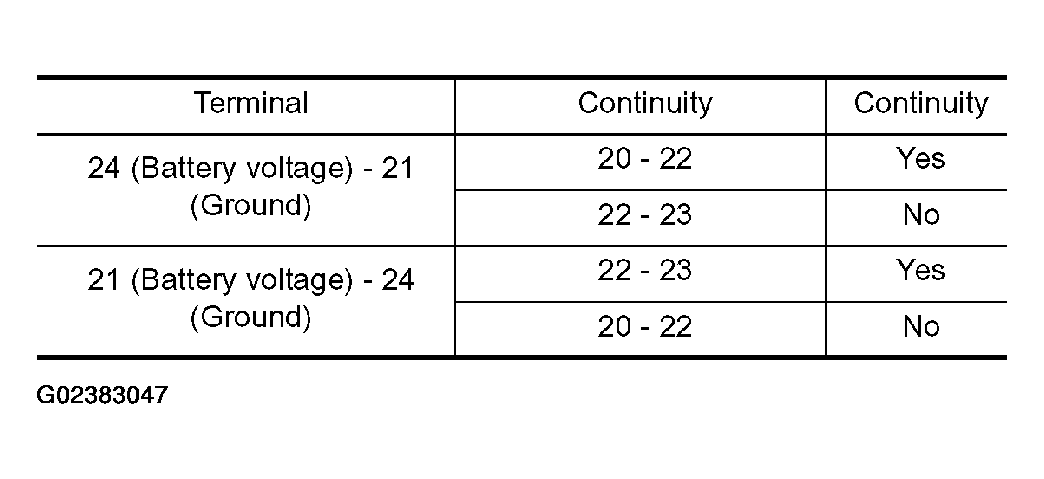

    Fig 1: Transfer Control Device Terminals 21 And 24 Voltage Specifications
    G02383047Courtesy of NISSAN MOTOR CO., U.S.A.

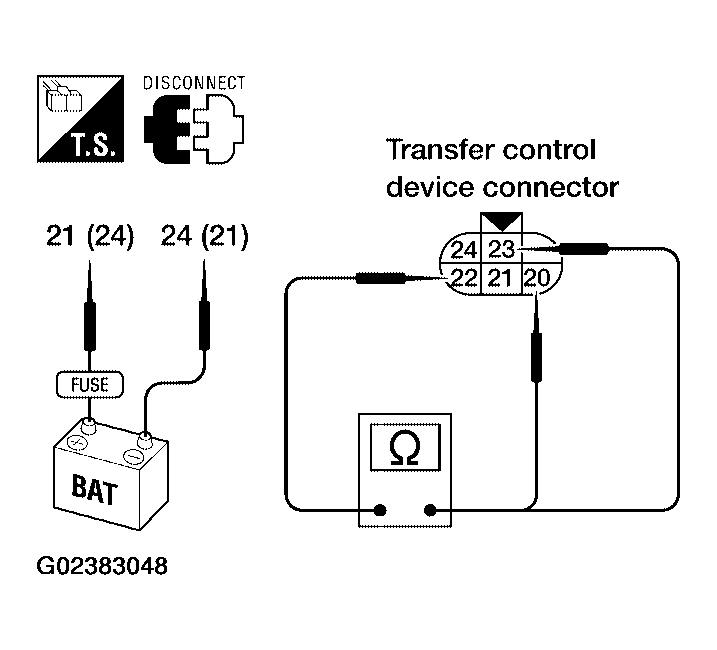

    Fig 2: Applying Battery Voltage To Transfer Control Device (Actuator Motor) Terminals 21 And 24
    G02383048Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, replace transfer control device (actuator motor). Refer to "REMOVAL AND INSTALLATION ".
