Component Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF". (Stay for at least 5 second.)
Disconnect ATP switch harness connector.
Remove ATP switch. Refer to "LOCATION OF ELECTRICAL PARTS ".
Push and release ATP switch and check continuity between ATP switch terminals 8 and 9.

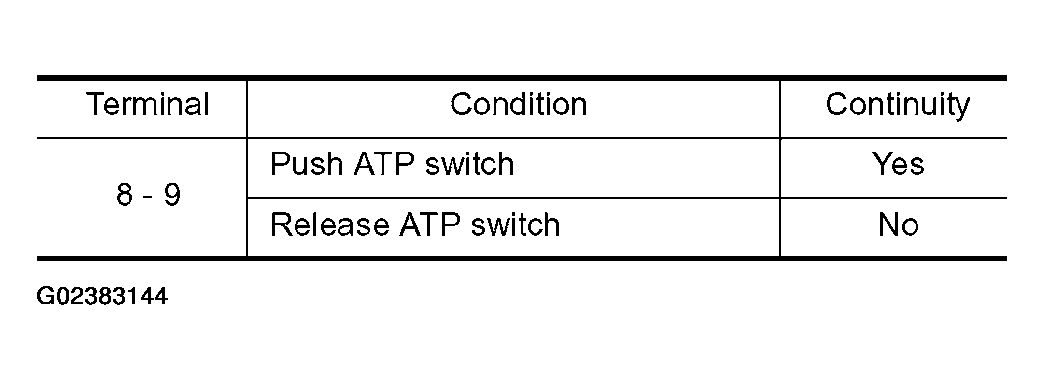

Fig 1: ATP Switch Terminals 8 And 9 Continuity Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace the ATP switch. Refer to "LOCATION OF ELECTRICAL PARTS ".

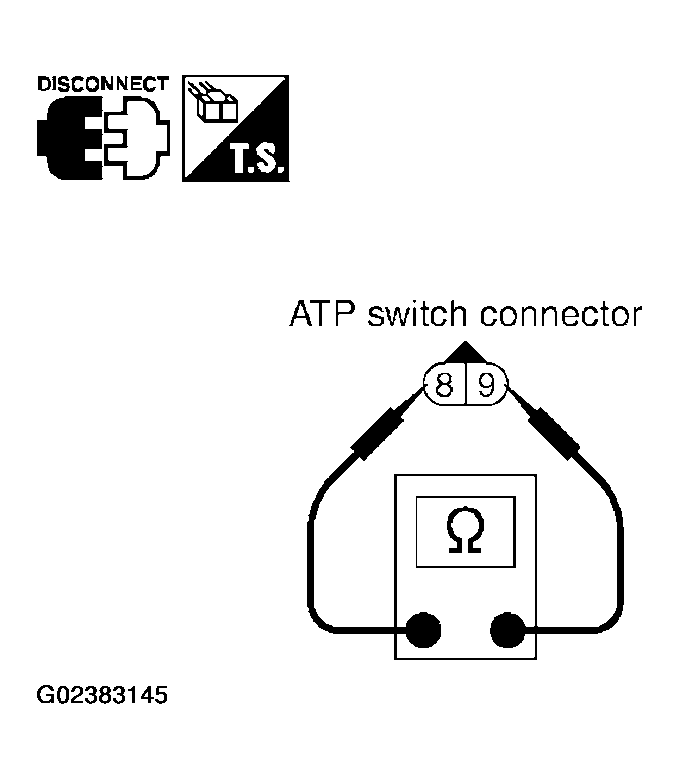

Fig 2: Checking Continuity Between ATP Switch Terminals 8 And 9
Courtesy of NISSAN MOTOR CO., U.S.A.
